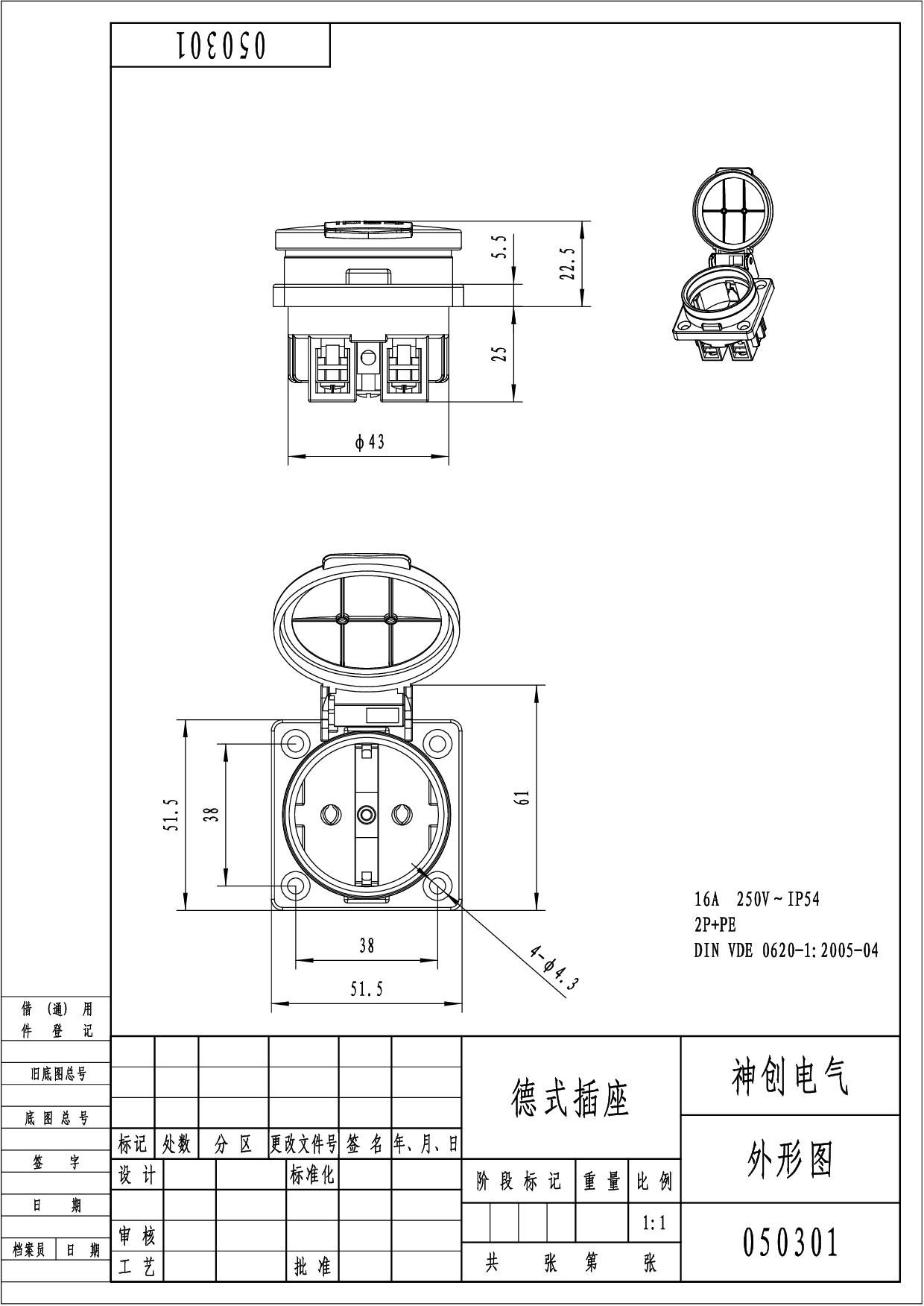

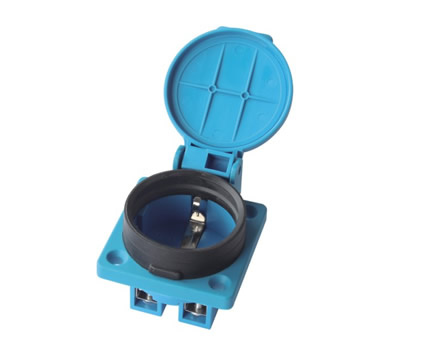

3 Pin German Style IP54 Waterproof 16A Industrial Electrical Sockets
Product Model 050301-1
Using standard VDE0620-1/02.10
Rated Current 16A
Rated voltage 250V
Interface mode 2P+E
Insulation Resistance ≥5MΩ
Electrical strength AC 2000V 50HZ
Protection class IP54
The main material PA66ZR01
Color Standard color: black;blue, or according to customer requirements
Adaptation Model: German-style plug 100101
Application
They are widely used in Ironmaking and Steelmaking,Generator industry, Petroleum Chemical Industry, Electricity, Electronics, railway, Construction Site, Airports, mine, post-mining land, water treatment plant and port, Pier,market, hotel.
Features This product is exquisitely crafted by using Nylon6 or Polypropylene,which are both featured in waterproof, dust proof, as well as corrosion proof including the abrasion proof In addition, this product is also very durable with long lasting lifespan and superior stability.
Testing and Quality Control
Our product have pass lots type of test, whatever in TEMPERATURE-RISE TEST, CTI/PTI TEST, GLOW WIRE TEST, INSPERTION AND EXTRACTION FORCE TEST, SAND AND UST TEST and the other test, our product performance are over the standards and other brands' product
Certification
tuv,vde, RoHs
Shenchuang Electrical is an electrical company of invention, production and integration. We concentrate on manufacturing solar panel fairy lights, solar panel lamps and electric starter lock switch, high-current switching, American NEMA socket, plug series, German socket, , plug series, South Africa socket, plug series etc...
Shenchuang Electrical has been dedicating itself to the research and development since its inception. It has strong technical strength and complete tesing equipment. Many products have passed international safety certification organizations such as the famous U. S. "UL", Canada "cUL", German "VDE" "TUV", Australia"SAA" and the ISO90001 quality system certification. It is also widely used in the generator industry, machine tool equipments, Electric vehicle charging piles, factory production lines, construction sites, airport and docks etc. With reasonable price, superior quality and excellent services won the praise and trust of new and old customers. The products have exported to Europe, America and Southeast Asia and other regions. We also support production to Honda, YAMAHA, Generac, Cunmmins, TTI, CPI, BS, ETQ
And other multinational companies. Shenchuang Electrical has become a leader of Chinese generators supporting industry!
Our company adhere to the guidelines of "quality for survival, technology for development. ". We believe that we can achieve new heights with sincerity, ethics technology, creation, mangement.
