Resistive and Reactive Load Bank: Power factor: 0.8; Voltage: 200V-35, 000V; Power: 20KW-60, 000KW
3 phase 4 wire
50Hz, 60Hz and 400Hz available.

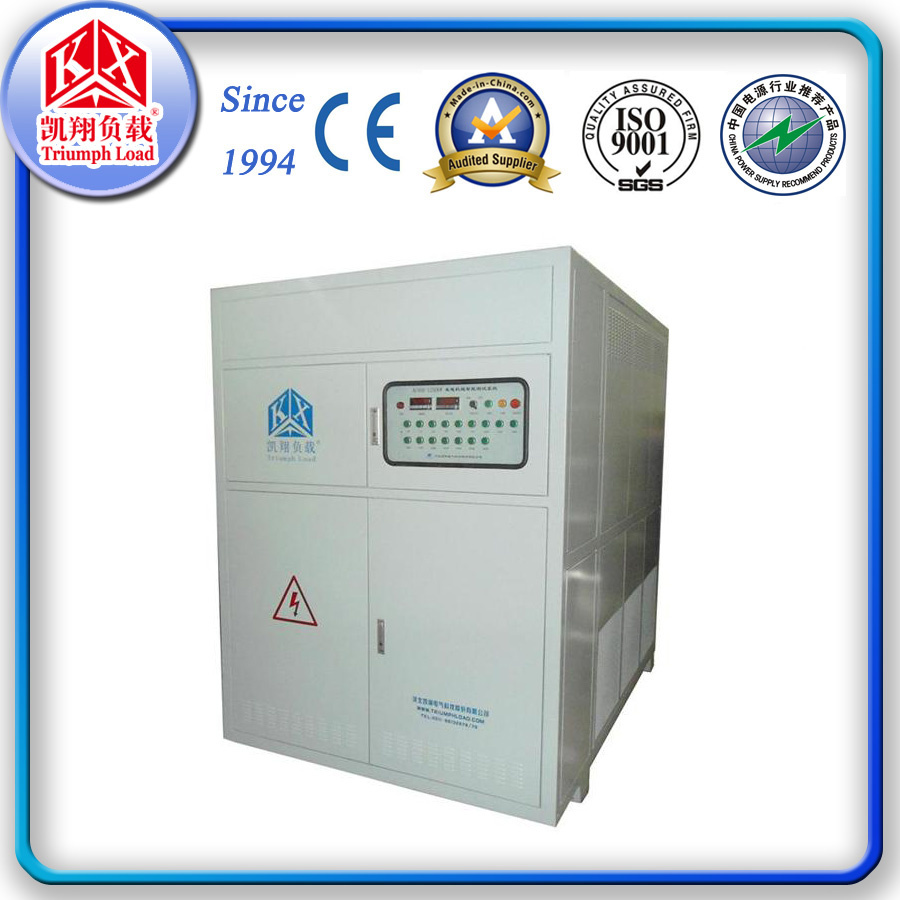

Resistive and Reactive Load Bank
Models Installed Capacity Power Factor Load Power Dimensions (mm) L*W*HWeight(KG)
AC400-1000KR: 800kW L: 600kvar 0.8 3 phase 400V 50Hz1600*2400*21006000
AC400-3000KR: 2400kW L: 1800kvar 6058*2438*259115000
AC400-6000KR: 4800kW L: 3600kvar 9050*2438*259125000
Voltage of 200V, 380V, 400V, 440V, 690V are available
Frequency 50Hz, 60Hz, 400Hz are available
Way of Working | Continuous Working |
Cooling | Forced air cooling,Horizontal inlet air,Vertical cooling |
Casing Structure | Container, with a ladder, air inlet and outlet with mesh enclosure and protection door |
Transportation | Hoisting, there are lifting lug in top of casing |
CasingColor | Grey(RAL7035)or as per customer's requirement |
