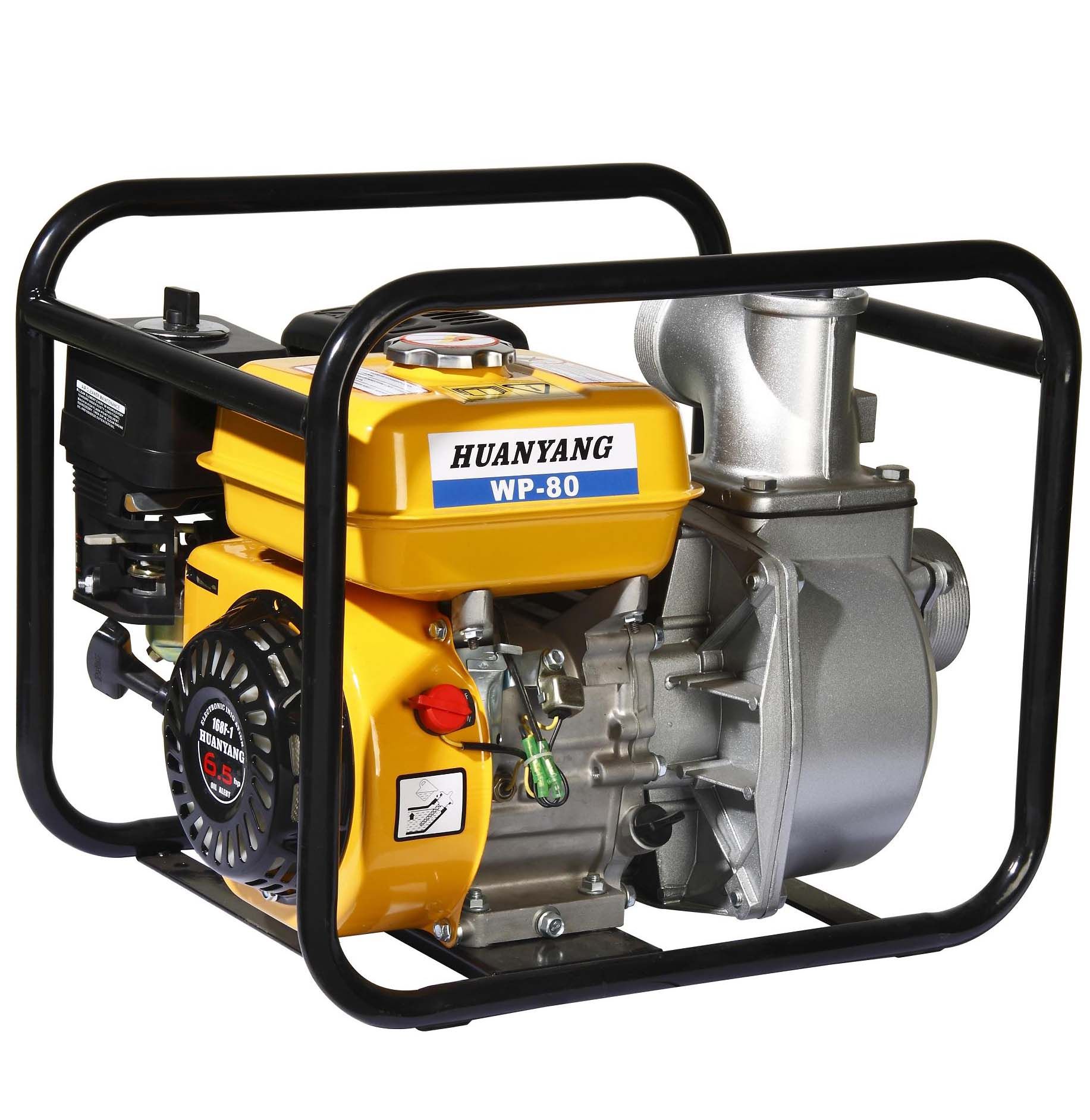

Gasoline pump, gasoline power
Model: WP80
Outlet size(mm): 80
Inlet size(mm): 80
Lift. Max. Head(m): 30
Displacement, Q. Max(m3/h): 55
Suction, Max Head(m): 7
Engine Model: 168F-1
Engine Type: OHV, single cylinder, four stroke, Air-cooled
Bore x stroke(mm x mm): 68x45
Displacement (ml): 196
Compressin ratio: 8.5: 1
Max. Power output(HP/kw): 6.5/4.7
Rated Power output(HP/kw): 5.0/4.0
Max. Torque: 11
Ignition system: T. C. I
Starting system: Recoil starter/electric starter
Engine oil capacity (L): 0.6
Fuel capacity (L): 3.6
Min. Fuel consumption (g/kw. H): 395
| Model |
| WP50 | WP80 | WP100 |
| Pump | Outlet size(mm) | 50 | 80 | 100 |
| Inlet size(mm) | 50 | 80 | 100 |
| Lift. Max. Head(m) | 30 | 30 | 30 |
| Displacement, Q. Max(m3/h) | 33 | 55 | 80 |
| Suction, Max Head(m) | 7 | 7 | 7 |
| Engine | Model | 168F | 168F -1 | 188F |
| Type | OHV, single cylinder, four stroke, Air-cooled |
| Bore x stroke(mm x mm) | 68x45 | 68x54 | 88x64 |
| Displacement (ml) | 163 | 196 | 389 |
| Compressin ratio | 8.5: 1 | 8.5: 1 | 8.2: 1 |
| Max. power output(HP/kw) | 5.5/4.0 | 6.5/4.7 | 13/9.5 |
| Rated Power output(HP/kw) | 4.7/3.4 | 5.0/4.0 | 11/8.2 |
| Max. torque | 10.5 | 11 | 23 |
| Ignition system | T. C. I | T. C. I | T. C. I |
| Starting system | Recoil starter/electric starter |
| Engine oil capacity (L) | 0.6 | 0.6 | 1.1 |
| Fuel capacity (L) | 3.6 | 3.6 | 6.7 |
| Min. fuel consumption (g/kw. h) | 395 | 395 | 374 |
| Unit | Dimension(LxWxMsH) | 480x380x400mm | 510x390x425mm | 645x465x530mm |
| Net weight | 23kg | 25kg | 44/45kg |

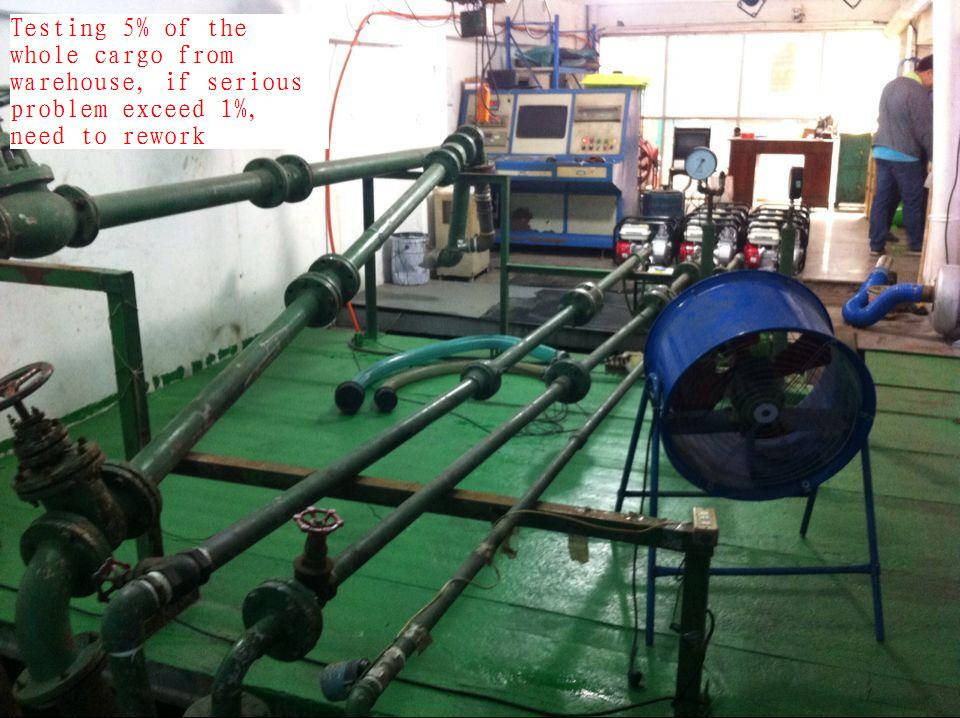

Testing Room

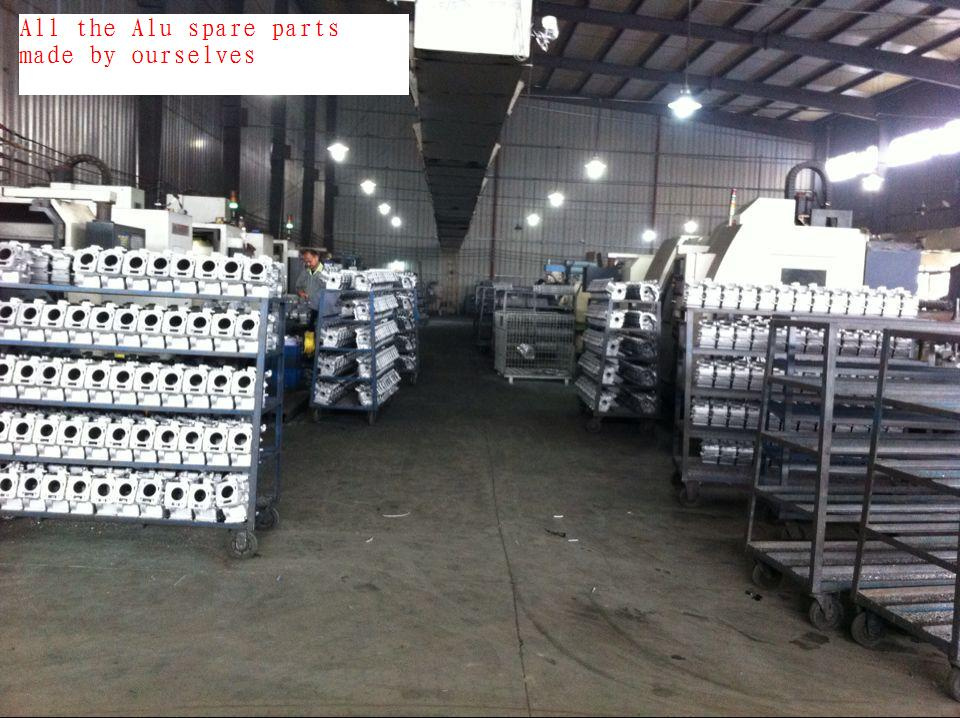

Alu spare parts work shop

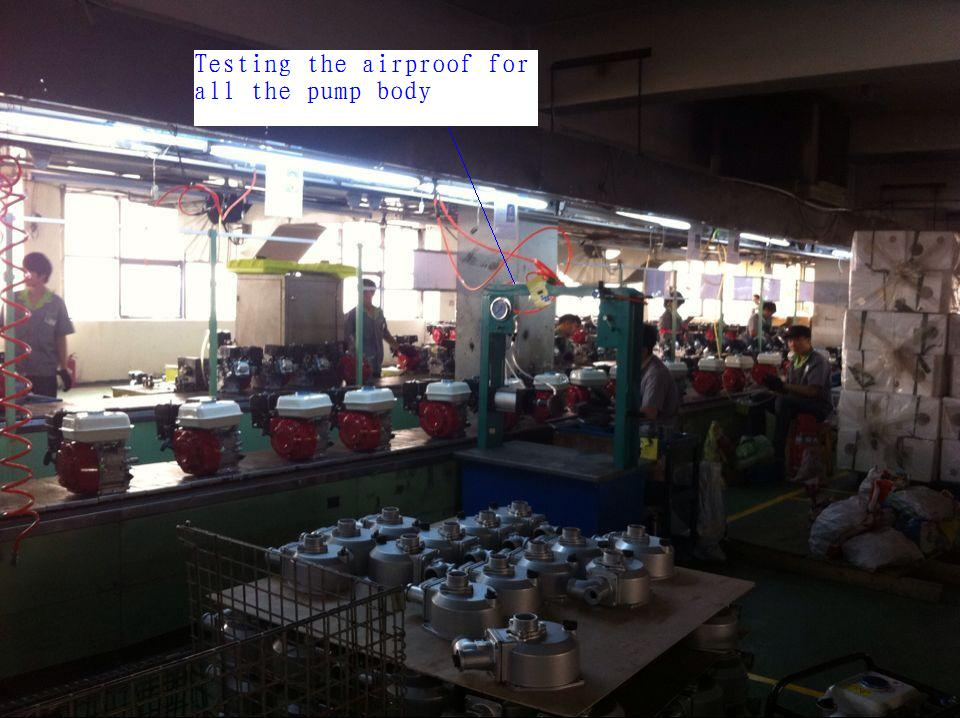

Airproof testing
The machanical and electrical limited company of TaiZhou city Huangyang was founded in tile 80s, the leading produc t water pump. The corporation covers an area of 48000 square metres, and building 85000 square metres of standard factory buildings, technology fund actual strength is ample, and it is complete to produce to test equipment. And the corporation specially sets up engineering department, information section and outfit specific duty mechanical and electrical, engineer and specific duty 10 person technical design personnel, higher level manages 20 of personnel. Accumulation the nanhai, on the foundation ofted remaining years on the water pump. In 1995we used Fin Kal brand, and the whole nation industy product production license that the Peoples Republic of China, machine building ministry issued has been gained the brand that in 2000 introduce Huanyang, and gaining ISO9002 to legalize.
Encircle the trend of Huanyang people is catching up with and follows the design and tries to check up and becomes the appearance and the product to marketing and service. Ten big series more than hundred of the Huangyang Kind Pump product of specifications has been had a foothold, somewhere in the internal market, and all has sale place in each big city. The brand has also been won initial success to breeies, such as electrical machinery fan and grinder etc.
The mountainous country family tradition scenic spot is swung near the wild goose in coastal district with encirding the foreign corporation, the higway is netted and the high relocity and CAAC thread, deepwater port and railway newly and having brought up the convenient network of communication lines, the welcome is come to make a visit or by way of postal, service, telecommunications, and internet hangs down the inquiry.
The hope Huanyang become your good helper.
