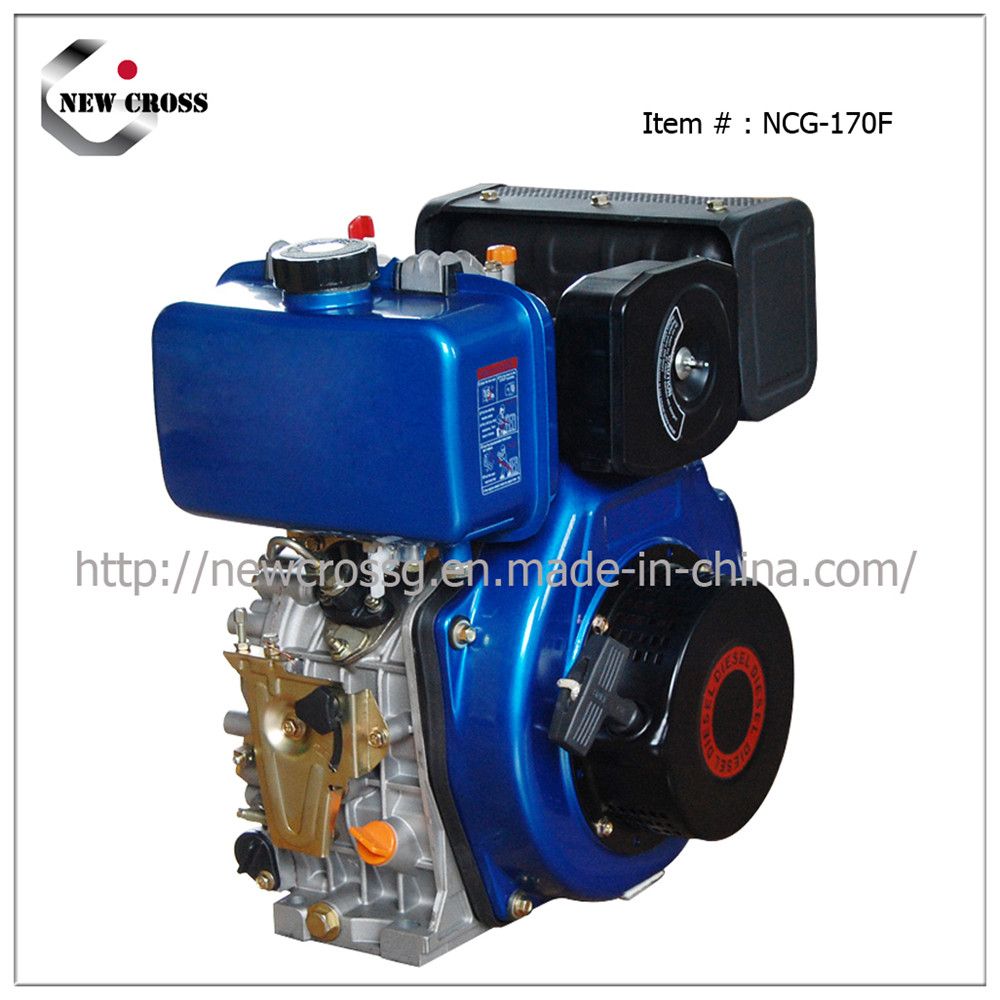

3.4HP 4-stroke air-cooled diesel engine
Item No.: NCC-D170F
Features:
1) Direct injection and combustion system
2) 3.8HP max output with low noise level and stability
Features:
1) Direct injection and combustion system
2) 3.8HP max output with low noise level and stability
3) 2.5L fuel tank capacity
4) Multi-choice PTO shafts
5) Compact structure and small size
6) Recoil manual starter and electric starter for option
7) Factory directly supply, with competitive price
8) CE&ISO9001 approved
9) Various kinds& accept OEM design
|
Model |
NCG-D170F |
|
Rated output(HP/rpm) |
3.4HP/3000rpm 3.8HP/3600rpm |
|
Rated output(KW/rpm) |
2.5KW/3000rpm 2.8KW/3600rpm |
|
Engine type |
Single cylinder, vertical, four-stroke, air-cooled, direct injection |
|
Diameter*stroke(mm) |
70x55 |
|
Piston displacement (L) |
0.211 |
|
Compression ratio |
20 |
|
Rated speed(rpm) |
3000/3600 |
|
Max. no-load speed(r/min) |
108% of Rated rotary speed |
|
Min. no-load speed(r/min) |
1300 |
|
Lubrication system |
Pressure splash Type |
|
Engine starting system |
Recoil starter or Electric starter |
|
Output terminal rotation |
AnticlockWise |
|
Fuel oil model |
Summer:0#, Winter:-10# |
|
Fuel tank capacity (L) |
2.5 |
|
Fuel consumption rate(g/kW.h) |
280.2/3000 288.3/3600 |
|
Oil consumption rate(g/kW.h) |
4.08 |
|
Oil grade |
CD grade or SAE10W-30,15W-40 |
|
Valve clearance(cold state) mm |
0.10-0.15 |
|
Lube oil capacity (L) |
0.75 |
|
Starting motor (V,kW) |
12V 0.8kW |
|
Charging generator(V,A) |
12V 3A |
|
Battery capacity(V,AH) |
12V-24AH-36AH |
|
Dimension (L*W*H)(mm) |
450*390*480 |
|
Net weight(kg) |
27 |
