2KW Wind Turbine Power Heating System (TWH-2)

2KW Wind Turbine Power Heating System (TWH-2)
Price: Negotiable
Trade Terms: FOB
Min Order: 5/Piece
Pay Type: T/T

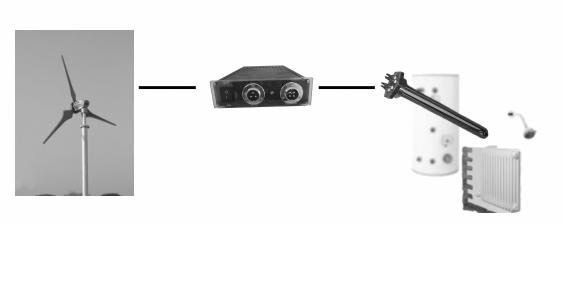

2KW Wind turbine power heating system TWH-2

This system include below parts:
2KW wind turbine
Matching controller
Heater

This is an efficient and available system, Mainly used as secondary heating for oil or gas boiler to save energy bill and reduce CO2 emission
This system could produce caloric value nearly 10000kcal daily in months of average wind speed of 6m per second, say, to heat water to 200 litres raising temperature about 50º C and mitigate CO2 over 20KG daily.
TECHNICAL   SPECIFICATION
Item   Number   TAOS2000
Rated   Output   2000W,   24V   or   48V   VDC
Rotor   Diameter 2.8M
Blade   Quantity 3pcs
Start-up   Wind   Speed 3m/s
Cut-in   wind   Speed   2.6m/s
Rated   Wind   Speed 12.5m/s
Survial   Wind   Speed   60m/s
Turbine   Weight 42KGS
Over   speed   protection Over   speed   protection
Over   load   protection   Over   load   protection
Prod Model: TWH-2
Markets: North America,South America,Eastern Europe,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Blade: Three Blade
Rotating Shaft: Horizontal
Magic Wind Power Co., Ltd is one of the world's leading producter of small wind turbines, the point of company is the research of TAOS Wind Energy Studio since 1984, ZHL WIND Energy is our comany Chinese name. Magic Wind Power successfully developed new type wind generator of downwind passive yawing structure which discard the tail vane and any mechanical protection set to make structure more compacter and reliabler and reduce noise, and the ability of "catch" wind higher owing the lower yawing interia, Downwind passive yawing design would be a higher level for small wind turbine.

Magic Wind Power Co., Ltd pioneered new technologies to make renewable energy simple, whether you are looking to reduce your home electric bills or power at home, boat or business off the grid, we offer a range of wind power system to help you. We have successfully developed 5 different system: Battery- charging system ( off grid system ), grid-tied system (grid-connected system ), wind and solar hybrid system, heating system, water pumping system which are efficient, economical and running reliably in world.

Magic wind Power successfully developed creative regulator built-in microprocessor with unique programme to protect wind turbine and facilities in system from over-load, over-voltage, over-speed and any abnormal state reliably.

Magic Wind Power works at creating beau ideal, develops innovative wind power technology, contributes to ecology constrction in 21 Century...
