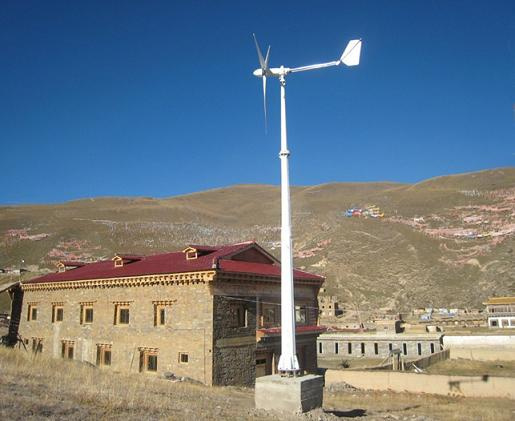

2kw wind turbine
1. On grid, off gird
2. Good price-performance ratio
3. Start wind 3m/s high efficient
4. 20 years lifespan, CE, ISO
Model Number: HAWT-2KW
Rotor Blade Diameter: 3.2m
Number of Blades: 3PCS
Materials of Blade: Glass Fiber
Rated Rotation Speed: 400(r/m)
Type of Generator: Permanent-magnet 3 Phase AC
Rated Power: 2000W
Max Power: 3000W
Output Voltage: 220V
Cut-in Wind Velocity: 3(m/s)
Rated Wind Velocity: 9(m/s)
Working Wind Velocity: 3-20(m/s)
Survival Wind Velocity: 40(m/s)
Monopole Tower Height: 6m/8m/9/10/12
Output controlling system: Electrified Controller & Inverter
Recommended Batteries: 12V200AH, 4 pieces
Can load: Light, fan, charger, TV, pump, washer, refrigerator, electric cooker and air conditioner
Authentication: CE and ISO certificate
Product Instruction:
Our wind turbine is an electromechanical device used to convert wind energy into mechanical energy and then into electric energy. The electric power output from aero-generator can be used to charge storage batteries for energy storage and the stored electric energy can be transformed into the 220V/380/50Hz/60Hz alternating power supply or the power supply of local voltage and frequency.
Wind electric power generation needs no fuel and have neither pollution nor noise. It is a type of low speed generator, realizing computer intelligent to sense the dogvane and anemoscope. When it is overwind speed or over voltage, it will stop automatically. The advantage of this machine is of high efficiency, convenient to maintain
This electricity generation mode is commonly fit for those regions that have good wind energy conditions and are far from the power grid or those that the power grid is off normal of farmland, seashores and so on. Aero-generator can supply electricity for refrigerators, washer, lighting system, TV sets, searchlights, playback devices, communication devices and motor-driven tools.
Gregrow Energy Group limited. Is located at Hongqiao District, Wenzhou, Zhejiang, China. The company specializes in small and medium wind turbine design and manufacture and is good at off-grid and on-grid system research and development. More than 30 years, the company dedicates to small and medium wind turbine whole system R&D and popularization and accumulates rich experience in design and construction.
The company adopts self-developed technology to produce wind turbines and meanwhile possesses more than 10 patents such as pitch controlled, yawing, permanent magnet generator and other technologies. Among mature products, GW-500W, GW-1kW, GW-1.5kW and GW-2kW use yawing patented technology and GW-3kW, GW-5kW and GW-10kW adopt the international most advanced mechanical pitch controlled patented technology. All of them achieve self-protection and running smoothly and safely at gale condition and extend their service life. This revolution leads to the whole small and medium wind turbine industry development in the field of pitch controlled technology. Qingdao Anhua becomes the industry leader in the small and medium wind turbine business. The company has already passed ISO900l Quality Management System and the products have passed CE certificate.
In domestic the company has cooperated with China Mobile, Hei LongjiangRui Hao Group and other large-scale enterprises and provides complete system solution for them, and promotes small and medium wind turbine applications in domestic market. Bulk products are also purchased in North America, Europe, Australia, Southeast Asia and other countries and regions, and have been high praised by the consumers across the world.
