Home Generator Products 2kw Kaplan Style Hydro Turbine System

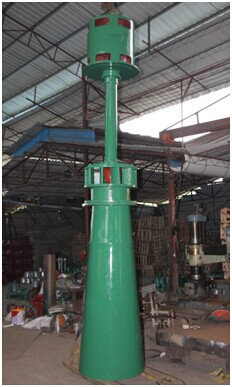

2kw Kaplan Style Hydro Turbine System

2kw Kaplan Style Hydro Turbine System
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Paypal,Western Union
Kaplan turbine has the structure of blade rotation inside, compared with the fixed blade propeller turbines, the blade of it can rotate. According to the different kinds of loads and water flows, the blades and guide vanes coordinate and cooperate with each other and form a certain association league relationship to realize the double adjustment of blades and guide vanes, and to obtain higher hydraulic efficiency and stable operation, and expand the scope of operation efficiency. Therefore, it is suitable for water flow changing greatly, especially for power station with the output changes greatly. It is applicable for the hydraulic head range of 3-30 m and widely used for the power with low water flow and of great capacity.
Style
Water meter
(m)

Flow rate
(m3/s)

Power
(kW)

Speed
(r/min)

Runner pages
cm
ZD760-LM-101-20.021-0.030.3500-150010
ZD760-LM-101-20.023-0.0350.5500-150010
ZD760-LM-121.2-2.50.025-0.0380.6500-150013
ZD760-LM-151.5-3.0.03-0.041500-150015
ZD760-LM-151.5-30.04-0.0451.5500-150015
ZD760-LM-(18-20)2-40.09-0.112500-150018
ZD760-LM-(18-20)2-40.09-0.0143500-150018
ZD760-LM-202.5-5.50.0116-0.1565500-150020
ZD760-LM-2030-350.0116-0.1565150020
ZD760-LM-2020-250.0116-0.1565100020

Prod Model: ZD-LM
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Turbine Type: Kaplan
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.

Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
