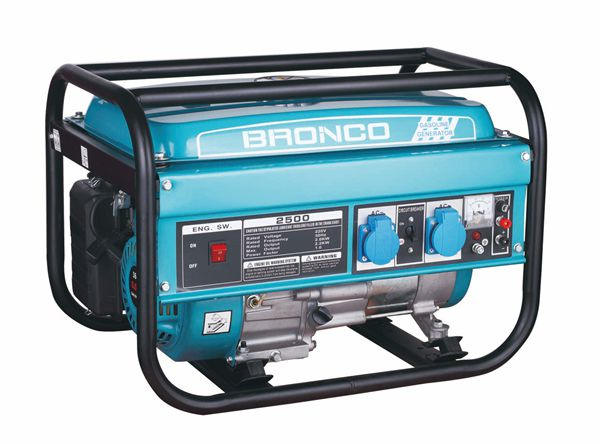

Parameter Code name BN2500
Generator Rating frequency (Hz) 50/ 60
Rating voltage (v) 220, 230, 120, 240
Rating power (KVA)2.0 -2.2
The Max. Power (KVA) 2.2- 2.5 Power factor 1.0
Engine Category Singlecrock, four stroke, top-installed gasoline motor.Rating power (KVA)2.0 -2.2
The Max. Power (KVA) 2.2- 2.5 Power factor 1.0
|
Max.output power(W) |
2500 |
|
Rated output power(W) |
2200 |
|
Rated rotation speed(rmp) |
3000/3600 |
|
Rated voltage(V) |
115 230 120 240 |
|
Rated Frequency(HZ) |
50 |
|
Phase |
Single phase |
|
DC output |
12V*8.3A |
|
Voltage regulate |
AVR |
|
Power factor |
1.0 |
|
Continuous running time(hrs) |
13 |
|
Engine type |
BN168F |
|
Bore*Stroke(mm) |
68*45 |
|
Displacement |
163 |
|
Compression Ratio |
8.5:1 |
|
Recommend power Output(HP/rpm) |
5.5/3600 |
|
Max Torque N.m/rpm |
11/2500 |
|
Fuel |
Gasoline |
|
Starting sysytem |
Recoil/Electric |
|
Oil capacity(L) |
0.6 |
|
Fuel tank capacity(L) |
15 |
|
Noise level(7m) |
67 |
|
Measurement(mm) |
600*440*435 |
|
N.W.(kg) |
38 |
Bronco (Zhejiang) Electric Machinery Manufacturing Co., Ltd. is located in the beautiful Taizhou Economic Development Zone, where occupies an area of 40, 000 square meters.
BRONCO is a company that combines the development, manufacturing, and marketing of gasoline generators, diesel generators, water pumps, air compressors.
We possess advanced production testing equipment and a modern quality management system, and have always implemented comprehensive quality control through strict adherence to ISO9001 standards. Furthermore, our products have also passed GE, CE, EMC certification.
The company has adopted horizontal integration, and product development is both supported by scientific research institutions and LED by the demands of the market. We actively incorporate advanced technology, materials and production processes so as to constantly develop new products - some of which already meet the highest standards within China.
Our products are sold throughout the world in regions such as Europe, America, the Middle East, Southeast Asia, and Africa, where we have built up a complete sales network. In Dubai, the economic heart of the Middle East, we have created a sales branch, and have won the trust and support of customers through our outstanding products and consummate service.
