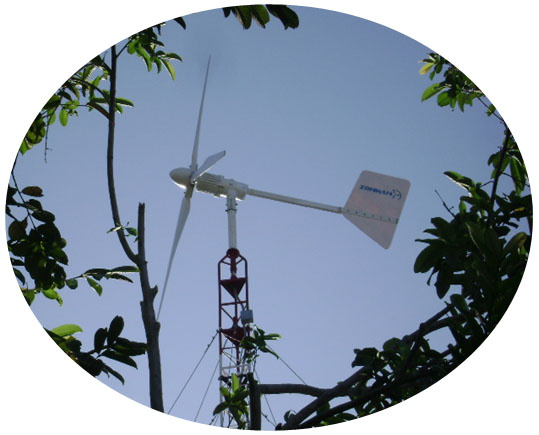

Model: ZH2KW
Rotor Diameter, (Meters/Feet): 3.6/11.8
Swept Area (Sqm/ Sqft): 10.2/109
Number Of Blades: 3
Blade Material: Fibre Glass Reinforced
Rated Power (Watts): 2000
Rated Wind (M/S / Mph): 9/20
Peak Power 12.5 M/S: 2500
Cut-In Wind (M/S / Mph): 3/6.7
Output Form: 24V or 48vdc Nominal (Higher Voltage Optional)
Blade Pitch Control: None, Fixed Pitch
Noise: 45dB(A) From 50m with A Wind Speed Of 8m/s
Overspeed Protection: Autofurl
Generator: Permanent Magnet Alternator
Tower Top Weight: 88kg.
Lateral Thrust: 12.5kN at 50m/s
The ZONHAN wind turbine products adopt high magnetic neodymium iron boron material (NdFeB), the professional magnetic circuit design, increase the magnetic fields, thereby enhance the generating efficiency. Meanwhile, the weight of the generator is reduced and is the half weight of the like products of other manufacturers. Accordingly, this is easier to install and maintenance.
The ZONHAN wind turbine blades use the import FRP(Glass fiber reinforced plastic), the solid petioles equipped with steel bushing, put an end to the blades broken by the wind pressure and flick out. The surface has the coating, can prevent freezing and aging. The wings shape is good and had tested the wind tunnel test in Sichuan province, running smoothly and quietly, the efficiency value Cp can reach to 0.42.
The special tail vane is in advance partial angle design, when under the normal operation can automatic alignment windward direction, enhance the output power and at the same time can take account to both cornering adjust the speed and the strong breeze protection. When the wind speed is more than 16m/s, the blades windward side will folder to 90° with the tail vane. This will make the blades lost the motive power and give the purely mechanical automatic braking function.
Yueqing Zonhan Windpower Co., Ltd.Was founded in China with the purpose of supplying people with the knowledge and tools necessary to generate ecologically friendly electricity through the use of wind turbines.
Recognizing the needs of the small wind market, Zonhan has directed its creative expertise to developing wind generators for homeowners, farmers, manufacturers and business proprietors who are looking for a cost-effective and environmentally friendly energy source.
Zonhan develops and manufactures revolutionary small wind energy systems, offering the cost-efficient and easily customized wind power solutions for grid and off-grid applications worldwide.
Our cutting edge technology and in-house expertise allows us to offer the most reliable and cost-saving wind power turbines to fulfill consumer, business and industrial needs, at the highest performance available today.
