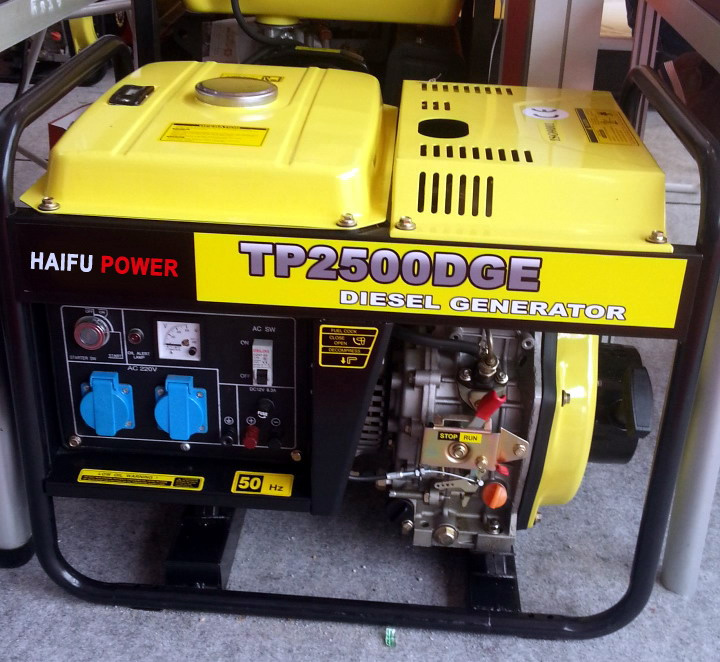

2KW (2KVA) Generator/Diesel Generator1, 178F, 186F, 186FA, 188F Series China Famous Diesel Engine (Air-cooled)
2, CE Approved
3, EPA approved
4, 1-Year Warranty
Engine and alternator mounted on the same frame steel skid.
Built-in damper for anti-vibration.
Small size, low weight, easy to operate, installation and maintenance.
Advanced and reliable control module: Key start, Auto start/stop
ATS as Options
General Data Sheet| Rated frequency (Hz) | 50 60 |
| Rated voltage (V) | 220 120/240 |
| Rated current (A) | 7.7 16.6/8.3 |
| Rated output (kw) | 1.7 2.0 |
| Max. output (kw) | 2.0 2.3 |
| Rated speed (r/min) | 3000 3600 |
| DC output(V.A) | 12V/8.3A |
| Power factor (cos) | 1.0 |
| Phase NO. | Single or 3phase |
| Noise level @7m | 74-77 |
| Structure type | Open-frame |
| Excitation mode | Brushless or Brush AVR |
| Engine NO. | TP170F |
| Displacemen(cc) | 211 |
| Compression ratio | 20:1 |
| Fuel type | 0#(summer)-10#(winter)-35(chiness)diesel |
| Lube oil t y pe | CD grade or SAE10W-30,15W-40 |
| Starting system | Recoil /Electric start |
| Battery Ah | 12V/17AH_36AH |
| Protection system | Low oil alarm |
| Overall dimension (LxWxH) (mm) | 660x480x540 |
| Net Weight | 62 |
| Gross Weight | 6 5 |
YANCHENG HAIFU POWER MACHINERY Co., Ltd. located in Yancheng High-Technology Development Zone. Here, congregated many world famous manufacturers. HAIFU Power owns the modern diesel genset's production scope covering an area of 10, 000 square meters, with an assembly workshop of 5, 000 square meters.
HAIFU Power devoted itself to research, manufacture and maintenance of famous diesel gensets in the past 15years. Capacity from 5KW up to 1500KW. With the steady quality and advanced manufacturing technique, HAIFU Power has won widely acclamation from both competitors and customers all over the world.
HAIFU Power has long-term cooperation with world leading companies, such as: Cummins, Perkins, Volvo PENTA, Deutz, Lovol, Doosan, Yanmar, Kubota, Stamford, Leroy Somer, Marthon etc.
HAIFU Power excellent products originates from not only scientific management and advanced manufacturing technique, but also our people's continuous quality awareness. Each manufacturing procedures from outside inspection, engine machining, electric wiring to spray-paint are under strict quality control.
Our conception is to supply gensets with advanced technology, reliable quality and environmental-protection. With this conception, HAIFU Power keeps updating of technology and improvement of quality all the time.
ADVANCED, RELIABLE, ENVIRONMENTAL - YOUR BEST CHOICE!
