DIESEL GENERATOR set

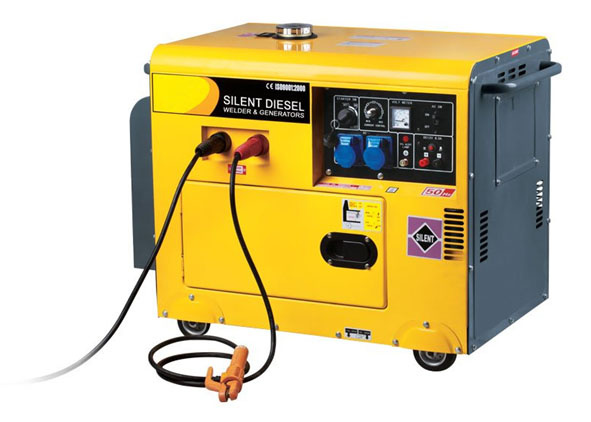

2Kw-12kw Air Cooled portable electric power super silent Diesel Generator Set
Air-cooled diesel Generator set Specification:
Model 2GF-L/M/ME 3GF-L/M/ME 5GF-L/M/ME 6GF-L/M/ME
Frequency(Hz) 50 60 50 60 50 60 50 60
Max. AC output(KW) 1.7 2 2.8 3.3 4.2 5 5 5.6
Rated voltage(V) 230 240/120 230 240/120 230 240/120 230 240/120
DC output( A) 12V/8.3A
Power Factor 1
Phase Single-phase
Excitation System Controllable Self-excitation and Constant Voltage
Dimension(mm) 680X500X570 700X500X580 770X500X630 770X500X630
Dry Weight(kg) 53/55 65 /69 92/98 92/98
Engine Model YM170FG YM178FG YM186FG YM186FAG
Type single-cylinder vertical, 4-stroke, air-cooled, dairect-injection
Displacement(CC) 211 296 406 418
Fuel tank capacity(L) 2.5 15 3.5 15 5.5 15 5 15
Lube. Oil capacity(L) 0.75 1.1 1.65 1.65
Low oil pressure alarm system with
Welding Generating sets
5GF-MEW Welder 3.64KW AC Generating 2KW open frame, 50-200A, 2.6-4.0mm electrode
6GF-MEW Welder 3.8KW AC Generating 2.2KW open frame, 50-200A, 2.6-4.0 mm electrode
5GF-LDEW Welder 3.64KW AC Generating 2KW Silent type, 50-200A, 2.6-4.0mm electrode
6GF-LDEW Welder 3.8KW AC Generating 2.2KW Silent type, 50-200A, 2.6-4.0 mm electrode
Air cooled Two cylinder diesel engine Welding genset
12GF-250MEW welding current range 60-280A, open type electric start with battery, single phase
15GF-300MEW welding current range 60-300A, open type electric start with battery, single phase
We would like to introduce ourselves as a leading manufacturer and exporter. Specialized in generator, engine, water pump, gradening machine and other power equipment which passed, CE, EPA and ISO9001 attestation.
We are the manufacture of the below products:
1. Air cooled diesel engine: 4/7/10/11HPS
Air cooled gasoline engine.: 6.5/8/11/13/15 HPS
2. Current diesel, gasoline generator from 0.45kw up to 6kw.
SILENCE DIESEL WATER& AIR COOLED SILENCE GENERATOR FROM 8KW UP TO 500KW
3. (high pressure)diesel, gasoline water pump: 1.5, 2, 3, 4 inch.
4. Pressure washer
5. Tractor with light tower
6. Garden machine
7. Construction machine
We do believe you will find our products are in the great competitive position in this line.
