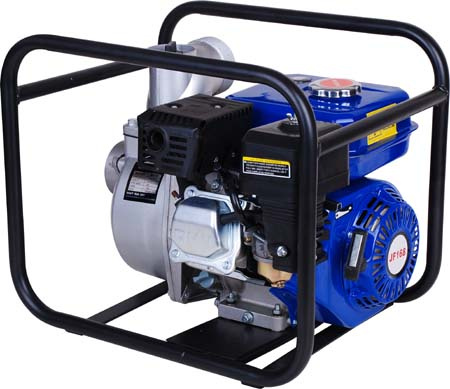

Gasolin water pump
Engine Type: Single-Cylinder, 4-stroke, Forced Air Cooling, OHV
Max. Output(HP/rpm): 6.5HP/4000rpm
Displacement: 196CC
Ignition System: T. C. I
Fuel Tank Capacity: 4.0L
Engine oil system capacity: 0.6L
Continuous operating time: 4h
Starting System: Recoil starter
Inlet and outlet Diameter: 80MM(3 inch)
Pump lift: 31m
Suction height: 8m
Max. Pump output: 60m3/hr
Net weight: 26KG
Dimensions: 51X40X46CM
Model
QL-10A
QL-10B
QL-15
QL-20
QL-30
QL-40
Outlet Size(mm)
25
25
40
50
80
100
Pump life(m)
22
22
20
27
30
25
Suction height(m)
7
7
7
7
7
7
Displacement(m3/h)
7
7
21
27
60
80
Engine model
1E40F
1E40F
154F
168F
168F-1
188F
Fuel tank capacity
1.2
1.2
1.6
3
3.6
6.5
Engine power (HP)
1.5
1.5
2.5
5.5
6.5
13
N/G weight
9/8
9/8
18/17
23/22
24/23
45/44
Dimension(mm)
315*300*320
385*305*320
470*350*370
490*390*385
515*385*418
630*485*525
Taizhou Qinli Machinery Co., Ltd., is a private enterprise professionally producing the equipment for plant protection and farm machine, such as knapsack sprayer duster, sprayer, gasoline engine, small gasoline engine and the parts and components of various sprayers.Our company is located at the bank of East China Sea -Taizhou, Zhejiang, with beautiful scenery and economic prosperity.Road, railway, air and harbor traffic are very fast and convenient.
Our products have passed the certification of National 3C, ISO9001-2000 international Quality System as well as European Quality CE, Our company has profound technical force, advanced equipment and stable quality from the research and development to the production, From management to production, our company takes the lead in the same industry.
Our products are sol dwell both at home and abroad, as far as Europe, Southeast Asia and Africa, and have gained the favorable comments from extensive agents and users.
Our company holds the tenet of"innovation and faithful operation", and bases on the operating ideal of "good faith creates satisfaction", as well as pursues the service principle of"humanization and specialization", so as to provide perfect before-sale and after-sale services for the users.
We faithfully welcome domestic and foreign investors for guidance and colluding mutual development.
