1. Used in Air Purifier, Air Frehser
2. CE, RoHS Approved
3. One Year for free Warranty
4. 6000 hours Life time(ozone plate)
1. Usage:
Used in household air purifier, air fresher, home air purifier, Dryer, dishwasher, shoe cabinet, household disinfectant cabinet, oxygen bar, dehumidifier, refrigerator, domestic appliance and so on.
2. Specifcation:
Size of ozone transformer
145mm*55mm*41mm
Size of plate
95mm*34mm
O3 output
2g/hour(under air circumstance)
Power
30W
Frequency
Input: 50/60Hz, output: 18KHz
Input
AC: 220V 110V DC: 24V 12V
Output
3.1kv
Plate material: 96% alumina
Plate thickness: 1mm
Metallization: Ni plating
3. Instruction of using earth:

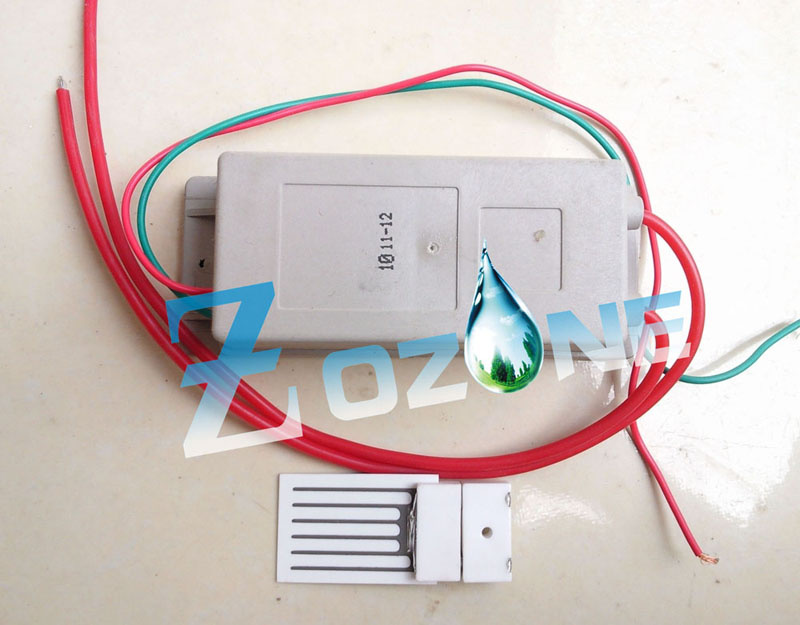

It is the set of ozone transformer and ozone plate, they can come into being ozone. It can produce 100% O3 concentration under air circumstance.
4. Note:
The product above is available in our factory. If you need some special require, we could also customize the ozone generator for you. Please feel free to contact us.
Our company specialized in different models of ozone generator power. Also we can customize the products as you advice. Please feel free to contact us.
