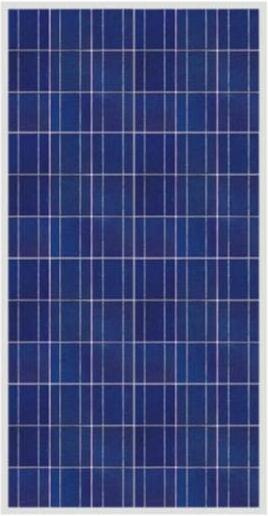

Poly solar panel
1)Strict quality control and power classification of panels
2)Anti-reflection cover glass improve the efficiency of panel
3)Ready to use with junction box, cabling and connectors
4)Be resistant to atmospheric exposure and effects of delamination
5)Customization on request.
| Parameters |
| Poly solar panel | KL280P |
| Maximum Power(W) | 280W |
| Open circuit voltage(Voc) | 44.64V |
| Short Circuit Current(Isc) | 8.74A |
| Maximum Power Voltage(Vmp) | 36V |
| Maximum Power Current(Imp) | 7.78A |
| Solar Cell | 156*156 Poly |
| Number of Cell(pcs) | 72 pcs |
| Size of panel | 1950*992*50mm |
| Cable & Connector Type | Pass the TUV Certificate |
| Frame(Material Corners,etc) | Aluminium-alloy |
| Backing(Brand Type) | TPT |
| Cell Efficiency(%) | 16 |
| Maximum System Voltage | 1000V |
| Weight(Kg) | 23 |
| FF(%) | 70-76 |
| Junction Box Type | Pass the TUV Certificate |
| Tolerance Wattage | ±3% |
| Front Glass Thickness(mm) | 3.2 |
| Temperature Coefficients of Isc(%) | 0.04 |
| Temperature Coefficients of Voc(%) | -0.38 |
| Temperature Coefficients of Pm(%) | -0.47 |
| Temperature Coefficients of Im(%) | 0.04 |
| Temperature Coefficients of Vm(%) | -0.38 |
| Temperature Range | from -40 degree to +85 degree |
| Surface Maximum Load Capacity | 2400Pa |
| Allowable Hail Load | 23m/s,7.53g |
| Bypass Diode Rating(A) | 12 |
| Note:Customer's special specification and dimension also can be met. |
|
