Home Generator Products 280kw USA Googol Electric Generator with Silent Canopy

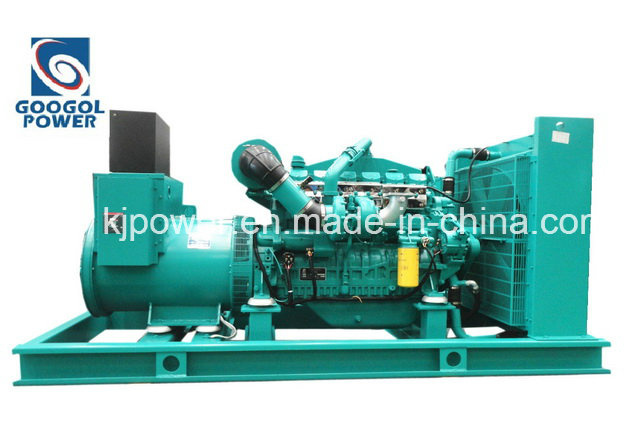

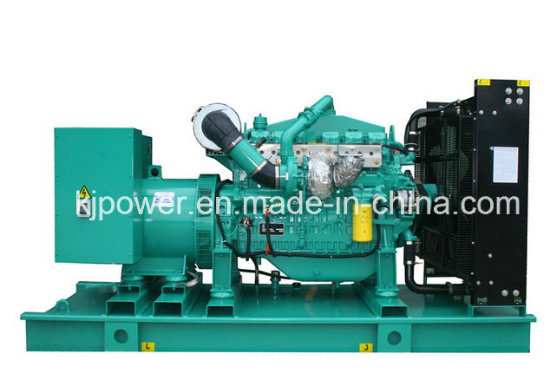

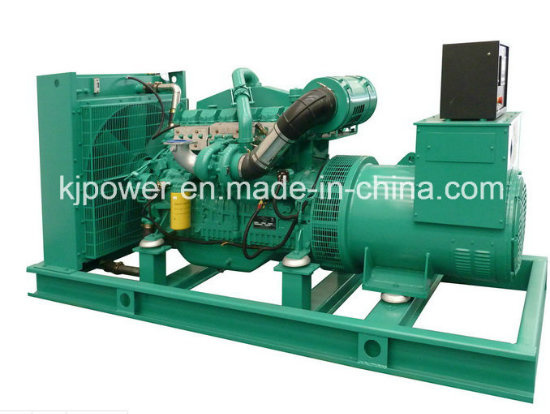

280kw USA Googol Electric Generator with Silent Canopy

280kw USA Googol Electric Generator with Silent Canopy
Price: US $ 20000-25000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
USA Googol Electric Generator
GOOGOL Engine Characteristics

Alternator Feature
1.Brushless, 4 poles, rotation magnet.
2.IP21-23 enclosure is standard for all industrial alternators.
3.The insulation system is Class H.
4.Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.
5.Wide range of flange adaptors and single bearing disc coupling.
6.Standard 2/3 pitch windings avoid excessive neutral currents.
7.Optional accessories available for easy paralleling with mains or other generators.
8.Optional permanent magnet generator ( PMG ) system provide constant excitation under all condition.
9.AVR auto voltage regulator, auto exciter, auto adjustment.
10.Standard: BS5000, VDE0530, NEMA MG1-32, IEC34, IEC60034, AS1359.


Control System

The DSE6010 is an Auto Start Control Module and the DSE6020 is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single,diesel or gas,gen-set applications.Monitoring speed, frequency,voltage,current, oil pressure, coolant temperature and fuel level, the modules will display warnings,shutdown and engine status information on the back-lit LCD screen and illuminated LED.  Both modules offer electronic
(CAN) and non-electronic (magnetic pick-up/alternator sensing) engine versions and offer a number of flexible inputs, outputs and engine protections. so the system can be easily adapted to suit a wide range of application demands.

Standard Accessory

Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery connecting wires, Operation manual and document.

Optional Accessory
Circuit breaker, Starting battery, Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system with RS232/485 communication interface, Battery charger by main supply. Fuel-water separator, Daily fuel tank, ATS & parallelin system, Soundproof canopy and Moving trailer.

Quality Warranty Period
All equipment is guaranteed for a period of 1000 hours running or 12 months from the date when the generator set has been delivered from the factory.

Diesel Generator Set ModelKJ-G385M
Prime Power(KVA/KW)350/280
Standby Power(KVA/KW)385/308
Frequency(HZ)50
Voltage(V)400/230
Diesel EngineModelPTA780G3
Prime Power(KW)309
Standby power(KW)342
Rated Speed(RPM)1500
Cylinders6-In line
Bore*Stroke(mm)128*166
Displacement(L)12.8
Compression Ratio15.5:1
Aspiration TypeTurbocharger,Air-water aftercooler
Lubrication Capacity(L)40
Coolant Capacity for engine(L)18
Marathon AlternatorModelMP-280-4
Power(KW)280
Altitude≤1000m
Voltage(V)400
power factor0.8
Insulation gradeH
Protection gradeIP21-IP23

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency: 50Hz
Rated Voltage: 400/230V, Various Voltage Available
Engine: Pta780g3
Alternator: Marathon
Controller: Deepsea Dse6020
Optional: Silent / Waterproof Canopy, ATS, Parallel System
Quality Standard: ISO9001.CE.Soncap
Warranty Period: 1 Year or 1000 Hours Running
Type: Basic Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Anhui Kaijie PowerTechnology Co., Ltd. is a professional manufacturer, specializing in production, design, sales, installation, maintenance and service of generator sets with CUMMINS, PERKINS, DEUTZ, Volvo, MTU, DOOSAN, Quanchai, Shangcai, Weichai, Yuchai, etc. Series world famous diesel engine and STAMFORD, LEROY SOMER, MARATHON, KAIJIE series AC alternators. Kaijie series generator set power range is from 10kVA-2500kVA. We believe that it is our assurance of quality and exceptional communication skills in generation set field as well as our competitive prices and professional service that will always mean your best choice. Comply strictly with ISO9001: 2008 Quality System, We always maintain the high quality of transmission and the standard of reliability, safety, durability as well as economy and environment-friendliness. And has formed a completed pre-sale, sale and after-sale service system. Win customers with quality; Stand in the market with credit; Redound upon society with value; Call on innovation and humanism, try our best to serve customers base on novel design and integrated service! Customers' satisfication, our traget!
