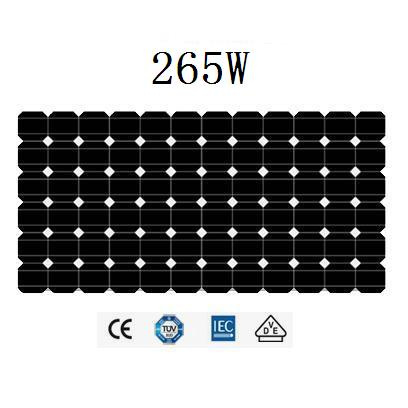

265W Monocrystalline Solar Panel (JHM265M-72)

Name: 265W Monocrystalline Solar Panel (JHM265M-72)
Brand: aboutgenerator.com
SKU: 689895395
Availability: InStock
Rating: 4.3 (90 reviews)

Price:	Negotiable
Trade Terms:	CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Zhejiang Juhong PV Technology Co., Ltd.

Showroom Product Company Profile

1. Solar panel/solar module/PV module/produced with high conversion effeciency
2. High quality of TPT, EVA, Tempered glass, aluminum frame to laminate solar panels and waterproof junction box and label;
3. We laminate solar panels from 55W-280W, with mono crystalline and poly crystalline solar cells.
4. We have TUV, ISO 9001/14001, CE, CEC certificate and so on.

TYPE	JHM280M-72
Nominal Output(Pmax)	255	260	265	270	275	280	285	290	295	300	305
Optimum Operating Voltage(Vmp)	35.2	35.2	35.7	35.7	35.7	36.2	36.2	36.2	36.7	36.7	36.7
Optimum Operating Current(Imp)	7.24	7.38	7.42	7.56	7.70	7.74	7.87	8.01	8.04	8.17	8.31
Open Circuit Voltage(Voc)	43.6	43.6	44.3	44.3	44.3	44.9	44.9	44.9	45.5	45.5	45.5
Short Circuit Current(Isc)	7.82	7.95	8.02	8.16	8.31	8.36	8.50	8.65	8.68	8.83	8.98
Operating Temperature	-40° C ∼ +85
Maximum System Voltage	1000V DC
Maximum Series Fuse Rating	15A
Power Tolerance	+5W

STC* (Standard Test Conditions): Irradiance 1000W/m² , Module Temperature 25° C, Air Mass 1.5

TEMPERATURE CHARACTERISTICS

NOCT	45± 2° C
Temperature Coefficient of Pmax	-0.47%/° C
Temperature Coefficient of Voc	-0.346%/° C
Temperature Coefficient of Isc	0.036%/° C

NOCT*: Nominal Operation Cell Temperature Sun 800W/m² , Air 20° C, Wind speed 1m/s

Mechanical Data

Cell Type	Mono-crystalline
Cell Arrangement	72(6x12) monocrystalline cells 156mm
Dimensions	1957 x 992 x 50 mm
Weight	22.5 Kg
Front Cover	3.2mm thick, low iron tempered glass
Frame Material	Anodized aluminium alloy

Performance

Warranty	90% power output over 10 years
	80% power output over 25 years
	Free from defects in materials and workmanship for 5 years

Prod Model:	JHM265M-72
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Zhejiang Juhong PV Technology Co., Ltd. is a R& D and manufacturing photovoltaic product company with advanced international level. It aims at R&D and manufactureing products friendly to the environment and promoting the application of the renewable energy.

The factory was founded in September in 2010. It covers 22, 000 square meters and its workshop exceed 15, 000 square meters, including a group of engineers and managers with rich experiences in photovoltaic industry.

Now the annual capacity is silicon solar modules are 100MW crystal silicon solar battery 100MW.

At present, the average efficiency of our mass production has been among first class international level. It has been cooperating with research institutes home and abroad to achieve higher efficiency. It not only engages in photovoltaic products R&D, but promoting the application.

Juhong realizes industrialization and modernization accelerate consuming limited natural resources. Photovoltaic products are important to the environment protection as a non-pollution and renewable energy source. We will try hard to promote the application of photovoltaic energy in more districts and countries globally and take it as a solemn responsibility.
