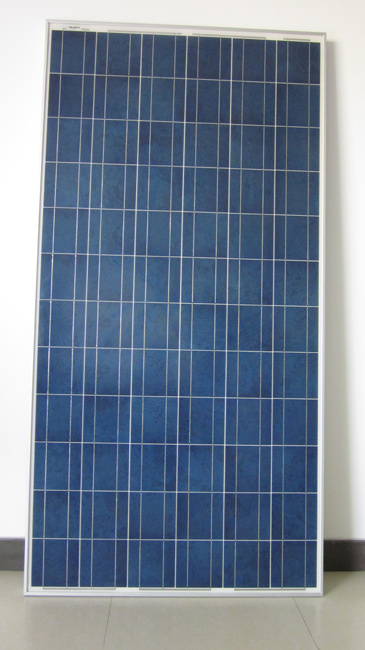

AP-260W/270W/280W/290W/300W Solar panl-P
Remarks:
A. Supplying ability: Our production ability is 8 MW per month and keep raising.
B. Guarantee: Our Guarantee time is 5 years. Performence Guarance 25years, After 10 years of use, the panel efficiency is 90%, and 80% efficiency after 25 year's use.
C. Certifiacte: We have CE for all our products and TUV certificate for some items.
|
ITEM NO |
AP-260W-P |
AP-270W-P |
AP-280W-P |
AP-290W-P |
AP-300W-P |
Bitmap
|
|
Maximum Power(W) |
260W |
270W |
280W |
290W |
300W |
|
Maximum Power Voltage(Vmp) |
34.9V |
34.9V |
34.9V |
34.9V |
34.9V |
|
Maximum Power Current(Imp) |
7.45A |
7.74A |
8.02A |
8.31A |
8.6A |
|
Open Circuit Voltage(Voc) |
43.2V |
43.2V |
43.2V |
43.2V |
43.2V |
|
Short Circuit Current(ISC) |
8.19A |
8.51A |
8.82A |
9.14A |
9.46A |
|
Maximum System Voltage |
1000V |
|
Power Tolerrance |
±5% |
|
Maximum Series Fuse Rating |
15A |
Frame(Material Corners,etc.) |
Aluminum-Alloy |
|
Temperature coefficient of ISC |
–0,04%/°C |
Number of Cell(PCS) |
72=6×12 pcs |
|
Temperature coefficient of VOC |
–0.38 %/°C |
Weight(Kg) |
22.0Kg |
|
Temperature coefficient of P Max |
–0.47 %/°C |
Tolerance Wattage(e.g.+/-5%) |
±3% |
|
Warranty |
90% of 10 years, 80% of 25 years |
Front Glass Thickness(mm) |
3.2 |
|
Standard Test Comditions |
AM1.5 1000W/M2 25°C+/-2°C |
Surface Maximum Load Capacity |
2400Pa |
|
Cable |
Electrical cable of 0.4mm2 (CLASS II) |
Allowable Hail Load |
23m/s, 7.53g |
|
Size of Module(mm) |
1950×990×50mm |
Packing |
2PCS/CTN
1980×1020×120mm |
|
Solar Cell |
156*156 Polycrstalline |
Container loading |
1*20'GP |
234PCS |
|
Backing(Material) |
TPT |
1*40GP |
468PCS |
|
Temperature Range |
below 40°C to +85°C |
1*40HQ |
566PCS |
Allpowers Industrial International Limited, founded in October 2008, it is a professional manufacturer dealing in solar chargers and solar lighting system.
As one of branch of Aoneng Grope, we make for some famous brand worldwide. Allpowers always offer worldwide customers with high quality product, competitive price & first class service, we are presently selling to Europe, north America, Latin America, Asia, Oceania & South Africa.
Being a competitive & reliable supplier, we have been co-operating with some famous companies, such as
* MANOR, the top brand for chargers in swissland
* GERBER(US & Europe): The good quality brand of battery & flashlight
* GEEPAS, the big chained store group in Middle East.
We are certificated with CE or SGS, ERP for some products, we also supplied RoHS products for European customers.
