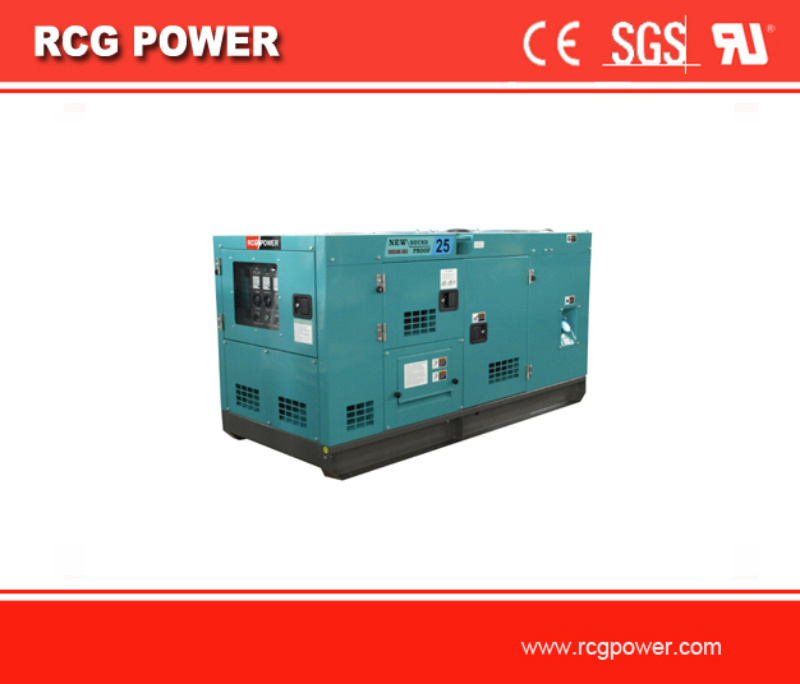

Home Generator Products 25kVA/20kw Soundproof/ Silent Type Diesel Generator Powered by Perkins Engine (R-P25S)

25kVA/20kw Soundproof/ Silent Type Diesel Generator Powered by Perkins Engine (R-P25S)

25kVA/20kw Soundproof/ Silent Type Diesel Generator Powered by Perkins Engine (R-P25S)
Price: US $ 4000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
1). Engine
 diesel generator adopt the UK origin Perkins engine with wide power range, excellent reliability and service life, low operation cost and fast speed return cycle. The generators are used widely in the communication, industry, Outdoor project, mining and ministry fields. The 400, 100, 1300 and 4000 series diesel engines always gain the high reputation from users around world

2). Alternator
Original Stamford & Marathon Alternator with brushless self-excited, AVR, H Class Insulation, IP23 Protection.

3). Control System
Adopt the top brand Deepsea controller( DSE510, DSE5210, DSE5320, DSE5220 etc) and ComAP Controllers( MRS-10, MRS-16. MRS-15 etc) with manual, automatic & remotely operation for the users.

4). Test & Commissioning
Each generator has been got through 2 hous load test for running 0%, 25%, 50%, 75%, 100% and one hours overload testing

5). Standard Accessories:
Standard radiator mounted on skid, common steel frame, circuit breaker, damper, exhaust pipe, battery, shock pad, operation manual, silencer, test report and certificate

6). Warranty
All equipment is warranted for a period of 1000 hours or 12 months fro mthe date of commissioning.

7). Certificate: ISO9001: 2000, BS4999, BS5000, BS5514, CE, EPA, ISO4001: 2004

8). Package: Standard exporting Plywood Case

Generating Set Specification

MODELR-P25S
PRIME POWER (KVA/KW)25/20
STANDBY POWER(KVA/KW)28/22
Rated voltage(V)400/230
Rated speed(rpm)1500
Rated frequency(Hz)50
Power factor0.8
Ambient temperature(ºC)40
Altitude(m)1000
Connection type3 phase  4 wires
ENGINE MANUFACTURERPERKINS
Model404D-22TG
Rated Power(kW)20.3
No. of cylinders & configurationIn-Line 4 cylinders
Method of operation4-stroke
Speed regulationMechanically governor
Starting systemDC 12V Electronic start
Cooling methodClosed-circuit cooling system
Total displacement(L)2.216
Compression ratio23.3:1
Bore×Stroke(mm)84×100
100% Load fuel consumption(L/h)≤4.3
ALTERNATOR MANUFACTURERSTAMFORD
Number of Phase3
Connection Type3Phase and 4Wires
Number of Bearing1
Power Factor0.8
Protection GradeIP23
Terminal12
Winding/ Pitch100% Copper   2/3 Pitch
Cooling FanCast alloy aluminum
Exciter TypeBrushless, Self-Exciting
Insulation Class, Temperature RiseH/H
Telephone Influence Factor( TIF)TIF <50 / THF<2%
Total Harmonic TGH/THC<1.5% at no load / <5% at load
Voltage Regulation, Steady State≤±1%
Sustained Short-Circuit Current300%(3 in):10s
CONTROL SYSTEMDSE SERIES

Prod Model: R-P25S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Engine Brand: Powerd by Perkins
Engine Model: 404D-22tg
Alternator Brand: Stamford/Optional
Type: Basic Diesel Generator
Installation Method: Fixed
Stroke: Two Stroke
Cooling Method: Wind Cooling
Output Type: AC Three Phase
Ruichang Gold Generating Equipment (Wuxi) Manufacturing Co., Ltd., established in 1982, is a manufacturer of a wide variety of diesel generator sets and portable power supplies. We are able to offer high quality diesel generator sets with imported engines, trailer-mounted power stations, mobile and container power stations, and even bunker power generator sets.

Our products are suitable for such industries as defense, telecommunications, transportation and natural resources. Additionally, buildings including hospitals, banks, and offices may use our power stations as either a mobile or stationary backup power supply. We accept special orders from clients and are able to meet all kinds of special technical requirements.

As a Sino-foreign joint-venture (Ruichang Gold Co., Ltd. Hong Kong and Wuxi Ruichang Electro Equipment Plant), we aim for the highest quality standards. We are ISO9001 certified and our products are manufactured according to strict internal quality control standards.

Our company principle is "Customers and credibility first" and always provide superior services and free consultation. Whether your inquiries are regarding product selection, systems integration, generator room designs or other technical details we will be happy to assist you with your needs.

We welcome both new and existing customers to come take a look at our current lineup and hope that you will choose our brand of competitively priced quality products. Please contact us for further details and we will promptly answer any questions you may have.
