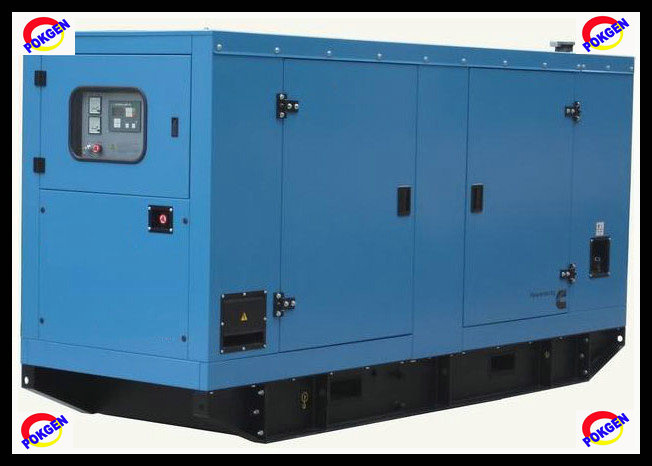

20~150kVA Lovol Power Generator/Power Generation
Lovol 1000 Series Power Generator/Power Generation/Power Plant/Diesel Generator Set/Power Generation/Gensets Power From 20kVA up to 150kVA, with compacted structure and best configuration.
Engine and alternator mounted on the same frame steel skid.
Built-in damper for anti-vibration.
Small size, low weight, easy to operate, installation and maintenance.
World famous brand AC alternator: Stamford, Marathon, Leroy Somer, etc.
Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485
Full range protect function and alarm shutdown feature.
ATS, Base Fuel Tank as Options
Control Systems
Standard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.
LED Automatic Control Panel is a kind of intelligent controller with LED displaying the operating mode of the controller and the running state of the generator sets. It can configure the control procedure and protection parameter of the generator set, and completely satisfied the automatic controlling requirement of the generator sets for the user or factory.
LCD Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator sets.
1, Lovol Diesel Engine
2, Stamford/Leroy-somer/Marthon Alternators
3, CE Approved
4, 1-Year Warranty
General Data Sheet
|
LOVOL Powered Diesel Generating Set Technical Data (50HZ) |
|
MODEL |
PRIME |
STANDBY |
ENGINE MODEL |
Leroy-somer |
Stamford |
Technical Data |
|
50HZ |
KVA |
KW |
KVA |
KW |
|
POK33 |
32.5 |
26 |
27.5 |
22 |
1003G |
LSA42.2L9 |
PI144J |
Download |
|
POK40 |
40 |
33 |
38 |
30 |
1003TG |
LSA43.2S15 |
PI144J |
Download |
|
POK50 |
50 |
40 |
45 |
36 |
1003TG |
LSA43.2S25 |
UCI224D |
Download |
|
POK50 |
50 |
40 |
45 |
36 |
1004G |
LSA43.2S25 |
UCI224D |
Download |
|
POK70 |
70 |
55 |
63 |
50 |
1004TG |
LSA43.2L65 |
UCI224F |
Download |
|
POK100 |
100 |
80 |
90 |
72 |
1006TG1A |
LSA44.2VS3 |
UCI274C |
Download |
|
POK110 |
110 |
90 |
100 |
80 |
1006TG2A |
LSA44.2VS45 |
UCI274C |
Download |
|
POK150 |
150 |
120 |
138 |
110 |
1006TAG |
LSA44.2S75 |
UCI274E |
Download |
|
LOVOL Powered Diesel Generating Set Technical Data (60HZ) |
|
MODEL |
STANDBY |
PRIME |
ENGINE MODEL |
Leroy-somer |
Stamford |
Technical Data |
|
60HZ |
KW |
KVA |
KW |
KVA |
|
POK37 |
30 |
37 |
28 |
34 |
1003G |
LSA42.2L9 |
PI144J |
Download |
|
POK55 |
44 |
55 |
40 |
50 |
1003TG |
LSA43.2S15 |
PI144J |
Download |
|
POK76 |
61 |
76 |
56 |
70 |
1004TG |
LSA43.2L65 |
UCI224F |
Download |
|
POK96 |
77 |
96 |
70 |
88 |
1004TG |
LSA43.2L8 |
UCI224F |
Download |
|
POK123 |
99 |
123 |
90 |
112 |
1006TG1A |
LSA44.2VS45 |
UCI274C |
Download |
|
POK128 |
103 |
128 |
94 |
118 |
1006TG2A |
LSA44.2VS45 |
UCI274C |
Download |
|
POK150 |
121 |
150 |
110 |
138 |
1006TAG |
LSA44.2S7 |
UCI274D |
Download |
|
POK176 |
141 |
176 |
128 |
160 |
1006TAG |
LSA44.2S75 |
UCI274E |
Download |
