For DC Output Wind Turbine
Build In Dump Load Controller
Build In High Wind Protection
Preface
The grid-tie inverter can transfer wind energy from wind generators directly into the home grid using no extra equipment. It can be connected to any outlet (conventional network) in the home. The grid-tie inverter controls the phase and the frequency and voltage of the power generated by the wind generator. It produces a pure sine-wave and matches that of the grid.
This model grid-tie has designed for wind turbines that put out DC voltage. It can maintain the rotating speed of the wind turbine and keep the voltage from the wind turbine always at the range of the rated range of the grid tie inverter. It also has a high voltage protection function, when the wind is too big, and the dump load controlling system can't keep the output voltage from the wind turbine, the controller will disconnect itself from the wind turbine, so it is very safe to be used.

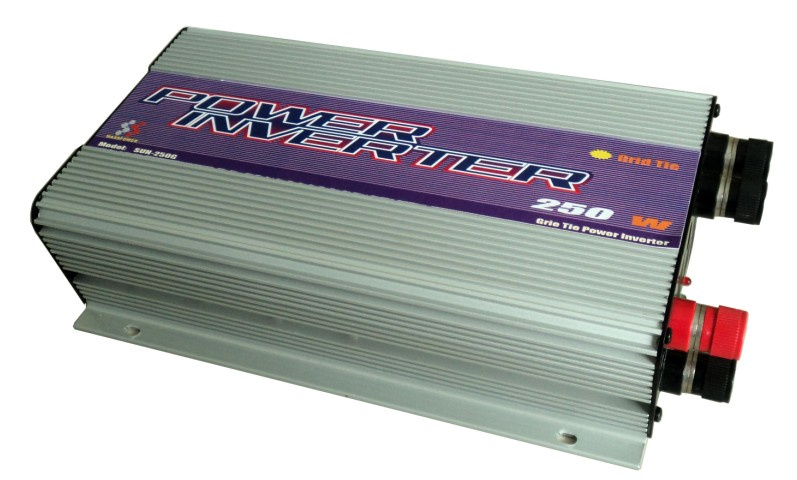

Model | SUN-250G_WDL |
Normal AC Output Power | 225W |
Maximum AC Output Power | 250W |
AC Output Voltage Range | Switch is at 230V Position | 190V ~ 260V |
Switch is at 115V Position | 90V ~ 130V |
AC Output Frequency Range | 46Hz ~ 65Hz |
Total Harmonic Distortion(THD) | < 5% |
Power Factor | 0.99 |
DC Input Voltage Range | 10.8V ~ 30V 22V~60V |
Peak Inverter Efficiency | 92%(The consumption of the rectifier is not calculated. ) |
Standby Power consumption | < 1.5W |
Output Current Waveform | Pure Sine-wave |
MPPT Function | Yes |
Over Current Protection | Yes |
Over Temperature Protection | Yes |
Reverse Polarity Protection | Yes |
Island Protection | Yes |
Stackable | Yes |
Recommend Dump Load Resistor | 3 ohm/250 watt |

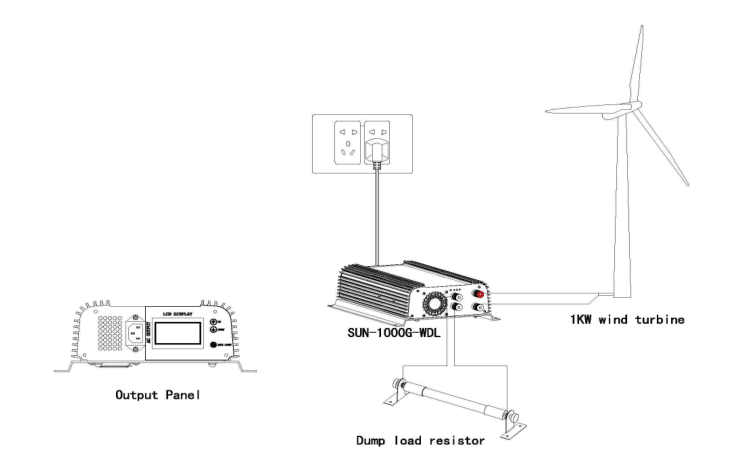

1kw wind system:
