Home Generator Products 250kw LPG Gas Generator/ Natural Gas/Biogas Generator/Electric Power Generator

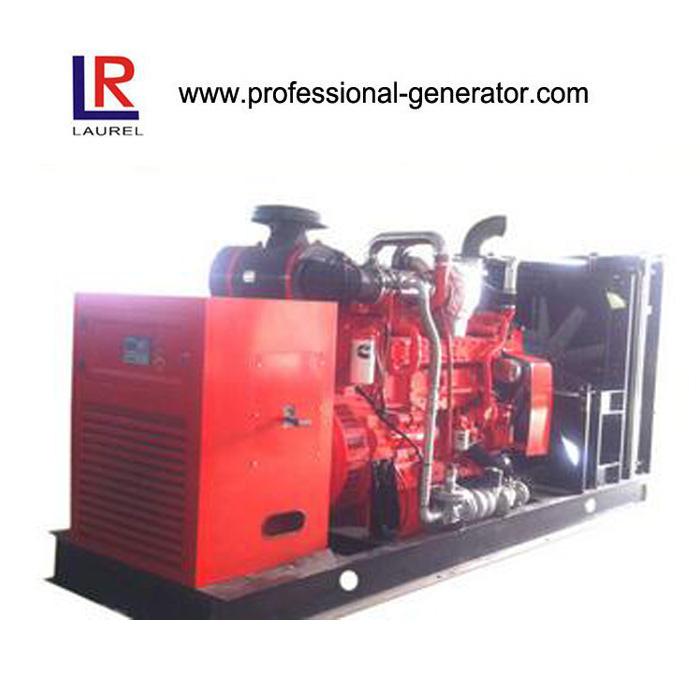

250kw LPG Gas Generator/ Natural Gas/Biogas Generator/Electric Power Generator

250kw LPG Gas Generator/ Natural Gas/Biogas Generator/Electric Power Generator
Price: US $ 59999-173899/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union
250kw LPG Gas Generator/ Natural Gas/Biogas Generator/Electric Power Generator


Options:

Genset ModelEngine ModelAlternator
Model
ControllerPrime Power
(kVA/kW)
LRGH24-G HG4BLSA42.3VS3DSE732030/24
LRGH30-GHG4BLSA43.2S4DSE732037/30
LRGH50-GHG6BLSA44.3S2DSE732062/50
LRGH80-GHG6TBLSA44.3S5DSE7320100/80
LRGH120-GHGN14LSA44.3L10DSE7320150/120
LRGH160-GHGNT14LSA46.2M5DSE7320200/160
LRGH200-GHGNT14LSA46.2L6DSE7320250/200
LRGH250-GHGKT19LSA46.2VL12DSE7320312/250
LRGH300-GHGKT19LSA47.2VS2DSE7320375/300
LRGH400-GHGKT38LSA47.2M7DSE7320500/400
LRGH500-GHGKT38LSA49.1S4DSE7320625/500



Specifications of  250kw natural gas generator/biogas generator/LPG power generator/Landfill gas generator


Gas genset data
Genset modelLR GH250-G
Prime Power/Continuous power (kW/KVA)250/312.5
Connection type3 Phases 4 Lines
Power factor cosfi0.8 lagging
Frequency (Hz)50
Rated speed (RPM)1500
Open type Overall Dimension (mm)3500x1250x2020
Soundproof type Dimension (mm) 20 feet container
Net weight without canopy(kg)3250
Gas Engine Data
ModelHGKT19
BrandCAMDA
Type4 stroke, water-cooling, wet cylinder liner,
 electronic-control ignition system,
 pre-mixed perfect mixed burning
Cylinders& Arrangement6L
Bore X Stroke(mm)159X159
Displacement(L)18.9
Compression ratio11:1
AspirationIntercooled and Turbocharged
Cooling MethodRadiator fan water cooling
Governor type(speed regulating type)Electronic governing
Starting methodElectric, 24 V motor
The lowest gas consumption(m3/kw.h)0.3 for natural gas/0.6 for biogas
Idling speed(r/min)700
Oil recommendedSAE 15W-40 CF4 or above
Oil consumption≤1.0g/kW.h
Alternator Data
BrandFrance Leroy Somer
ModelLSA46.2VL12/252KW
Rated power252kW / 3 phase
Rated Voltage (V):380~480 (±0.5%)(AC)
Type3 phase/4 wire, brushless,
automatic voltage regulator,
drip proof, protected type.
Frequency (Hz)50
Efficiency:94.4%
Voltage regulation± 0.5 %(adjustable)
Insulation class:Class H
Protection class:IP 23
cooling method:wind-cooling, self-heat-rejection
Voltage regulating modeAutomatic voltage regulator
Compliant with international standards:IEC 60034-1, NEMA MG1.22, ISO 8528/3, CSA,
UL 1446, UL 1004B on request, marine regulations, etc.


Standard Scope of Supply:

1. Brand new gas engine, 90% parts include engine body , crank shaft, cam shaft, piston, cylinder head, etc made by CCEC (Cummins Joint Venture in China) with best quality
2. Brand new brushless France Leroy Somer alternator
3. Rating: 3 phases 4 lines. 400/230V, 50 HZ , 1500rpm, 0.8PF, IP22-23, Insulation class H
4. Radiator for 40ºC/50ºC ambient temperature
5. Ignition system adopted USA ALTRONIC
6. Emergency stop mounted
7. Battery,Battery cable and Battery charger
8. Standard tool box
9. Standard Accessory for installation (include bellows,silencer,flange,asbestos pad,Anti-rust water,screw )
10. Gas Train include Regulator valve,Electromagnetic Valve, Fire arrestor,Ball Valve (Chinese brand)


Accessories list

1. Maintenance Operation manual
2. Quality certificate, Gen-sets ex-factory testing report
Prod Model: LRGH250-G
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power: 250kw/312.5kvaq
Output Type: AC Three Phase
Speed: 1500/1800rpm
Frequency: 50/60Hz
Gas Source: LPG
Power: 150kVA
Guangzhou Laurel & Honesty Holdings, founded in 1981, is professional company focusing on generators and Agricultural machines.
It has been 34 years since our factory was founded. Our main products are diesel generator sets, generators, marine engines, engines, water pumps and other agricultural machinery products. We have obtained the relevant certifications such as ISO, CE, RoHS, GS, TUV etc.

QUALITY GUARANTY POLICY

1. Guaranteed products
All kinds of Generator sets, generators, engines, pumps, control panels and agricultural machines sold by our company, Guangzhou Laurel & Honesty Holdings.

2. Base warranty period
1)The warranty period of generator sets is 2 years or 1200 running hours (the earlier one shall prevail) from the date when the generator set have been delivered from the factory.
2)The warranty period of generators, engines, pumps, control panels and agricultural machines is 1 year or 1000 hours from the date when the goods have been delivered from the factory whichever is coming first, the warranty period will be ended.
3)Any other special stipulation according to the order.

3. Guaranty range
The user shall strictly follow the operation handbook and service statement (included all the products mentioned above) to maintain and keep the equipments, the goods has any malfunctions caused due to the manufacture quality problems in the guarantee period.

4. Limit of guaranty
1)The goods is damaged during transport, Carrier shall take charge of the amends.
2)The goods is damaged due to unsuitable setting or doesn't follow the installation manual which offered by our company.
3)The goods is damaged due to the user doesn't follow the service statement to replace the filter and lube oil in the stated period.
4)The goods is damaged due to the user doesn't use the appointed oil filter, fuel filter, air filter which mentioned in the manual book.
5)The goods is damaged due to the user make bold to replace or use the spare parts or add other equipment on it without our company approbation.
6)The goods is damaged due to disassembly parts from the equipments without our company approbation.
7)The goods is damaged due to unsuitability place, start, warm-up, stop and so on.
8)The goods is damaged due to using disqualification fuel or other substance mixed in the fuel, such as water, impurity, contamination and so on.
9)Our company shall provide free maintenance service for malfunctions caused due to the manufacture quality, but not take charge of any overhead expensed, losing and any fault analysis fee.
. AFTER-SALES SERVICE POLICY

Guangzhou Laurel & Honesty Holdings will meet the needs of consumers as possible. They can expect to enjoy our specialized service from product manufacturing, delivery and installation to the technical support and maintenance during operation process. After receive the feedback of quality problem, we answer the consumers and supply problem solve program in 24 hours. Do our best to supply satisfied service.

You can get the following services:

1. Provide complete qualified products:
Once business cooperation is established, customers will immediately be presented with detailed technical information according to products.
(1)Product information
(2)Engine information
(3)Alternator information
(4)Automatic Start-Stop Systems information
(5)Insulation Protection information

2. Provide complete technical support, including installation and commissioning services:
After the customer receive the goods, we can provide installation and commissioning advisory guidance, and also can assign engineering technologist with installation experience to the scene and guide the on-site installation if necessary.

3. Professional technology personnel training:
If the customer requirements, we will arrange technical personnel training, guidance.

4. Maintenance Service.

5. Supply technology assistance for your whole life.
