Home Generator Products 250kVA Diesel Generator Powered by Cummins Engine

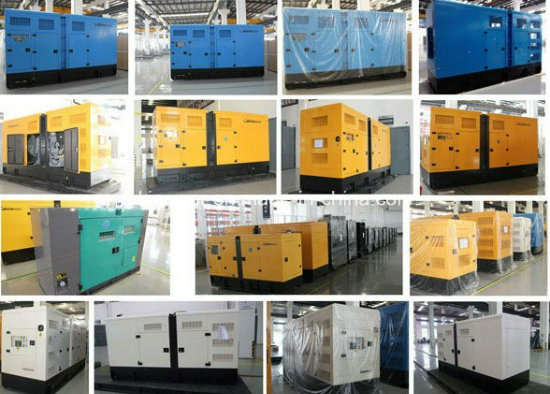

250kVA Diesel Generator Powered by Cummins Engine

250kVA Diesel Generator Powered by Cummins Engine
Price: US $ 19000/Set
Trade Terms: FOB,CFR,EXW
Min Order: 1/Set
Pay Type: L/C,T/T

Product Description-Silent Cummins Diesel Generator Set (250kVA)

1. Powered by Cummins Engine
2. With Stamford / Leroy Somer / Marathon Alternator
3. With CHINT / ABB MCCB & Electronic Components
4. Electric Start with Battery
5. Base Integrated Fuel Tank
6. ATS, Deepsea / ComAp / Smartgen Controller
7. Comply with ISO9001/CE
8. After-sale Services

Control Systems

Standard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.

LED Automatic Control Panel is a kind of intelligent controller with LED displaying the operating mode of the controller and the running state of the generator sets. It can configure the control procedure and protection parameter of the generator set, and completely satisfied the automatic controlling requirement of the generator sets for the user or factory.

AMF Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator set.

ATS(Fully Automatic) is the standard configure of emergent power system. It detects the voltage and frequency of main power timely. While there is something wrong, such as high voltage, low voltage, phase missing, electricity cutting off, etc., it will signal to start the generator set automatically;
While main power resumes balanced, it controls the generator set to shut down after cooled.

Engine
*Heavy duty diesel engine
*Four stroke, water cooled
*12V and 24V stater and charge alternator
*Cooling radiator and fan
*Maintenance free battery including ract and cable
*Flexible fuel connection hoses and manual oil sump drain valve
*Exhaust silencer
Alternator
*Brushless, single bearing, flexible disc
*Insulation class: H
*Protection class: IP23
*Self-exciting and Self-regulation
Canopy
*All canopy designed with modular principles
*All metal canopy parts painted by electrostatic polyester power paint
*Soundproof design ensure that the noise level be controlled in small scope
*Convenient to lift and move
*Easy to maintenance and operate

Base Frame
*Base frame including position for forklift and crane
*Integral fuel tank
*Daily fuel tank continuously supply for 8-24 hours
*Fuel tank easy to maintain and clean
*Anti-vibration pads are flexed between engine and alternator.

Control System
*Control, monitor and protect the Generator Set including:
*High water temperature
*Low oil pressure
*Over and under speed
*Over current
*Under/Over generator voltage
*Start and stop failure
*Low and high battery voltage
*Charge fail
*Emergency stop




DIESEL
GENERATOR
SET
Diesel  GenSet  ModelKJ-C275
Prime  power  (KW/KVA)200/250
Standby  power  (KW/KVA)220/275
Rated  voltage(V)230/400
Rated  current  (A)360
Frequency(Hz)50
Rated  Rotary  Speed  (RPM)1500
Power  factor0.8
Power  supply  mode3  phase, 4wire
Starting  method24V  DC






ENGINE
Diesel  Engine Cummins
ModelNT855-GA
Engine  prime  power  (KW)231
Engine  standby  power(KW/KVA)254
Cylinder  Qty.6
Bore(mm)  *Stroke  (mm)140*152
Compression  rate14: 1
Cooling  liquid  volume  (L)66
Displacement(L)14
Lubricant  capacity  (L)38.6
Cooling  methodWater  cooled
Intake  methodTurbocharged& air  to  air  cooled




ALTERNATOR
Alternator  Features:
1.   Kaijie, ENGGA, Stamford,   Leroy  Somer,   Marathon
2.   Brushless,   4  poles,   rotation  magnet
3.   IP21-23(NEMA1)  enclose  is  standard  for  all  industrial  alternators
4.   H  class  insulation  system
5.   AVR  self-regulated,   voltage  regulation  rate:   ≤ ± 1%
6.   Simple  installation  and  maintenance  with  easy  access  to  terminals,   rotating  diodes  and  coupling  bolts
7.   Wide  range  of  flange  adaptors  and  single  bearing  disc  coupling
8.   Radio  interference  restraining  accords  with  the  stipulation  of  VDE0875-N  and  ISO8528
9.   Moisture  proof,   sand-proof,   dustproof,   salt-proof  and  vibration-proof




Prod Model: KJ-C275
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine: Cummins Nt855-Ga
Alternator: Kaijie, Marathon, Leroy Somer, Stamford
Frequency: 50Hz, 60Hz for Option
Rated Voltage: 400/230V, Various Voltage Available
Controller: Smartgen, Deepsea, Comap
Function Option: ATS, AMS, Synchronization, High Voltage, etc
Generator Type: Open Type/Silent Type /Container Type/Trailer Type
Quality Standard: ISO9001.CE.Soncap
Delivery Time: 15-20 Working Days
Type: Basic Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Anhui Kaijie PowerTechnology Co., Ltd. is a professional manufacturer, specializing in production, design, sales, installation, maintenance and service of generator sets with CUMMINS, PERKINS, DEUTZ, Volvo, MTU, DOOSAN, Quanchai, Shangcai, Weichai, Yuchai, etc. Series world famous diesel engine and STAMFORD, LEROY SOMER, MARATHON, KAIJIE series AC alternators. Kaijie series generator set power range is from 10kVA-2500kVA. We believe that it is our assurance of quality and exceptional communication skills in generation set field as well as our competitive prices and professional service that will always mean your best choice. Comply strictly with ISO9001: 2008 Quality System, We always maintain the high quality of transmission and the standard of reliability, safety, durability as well as economy and environment-friendliness. And has formed a completed pre-sale, sale and after-sale service system. Win customers with quality; Stand in the market with credit; Redound upon society with value; Call on innovation and humanism, try our best to serve customers base on novel design and integrated service! Customers' satisfication, our traget!
