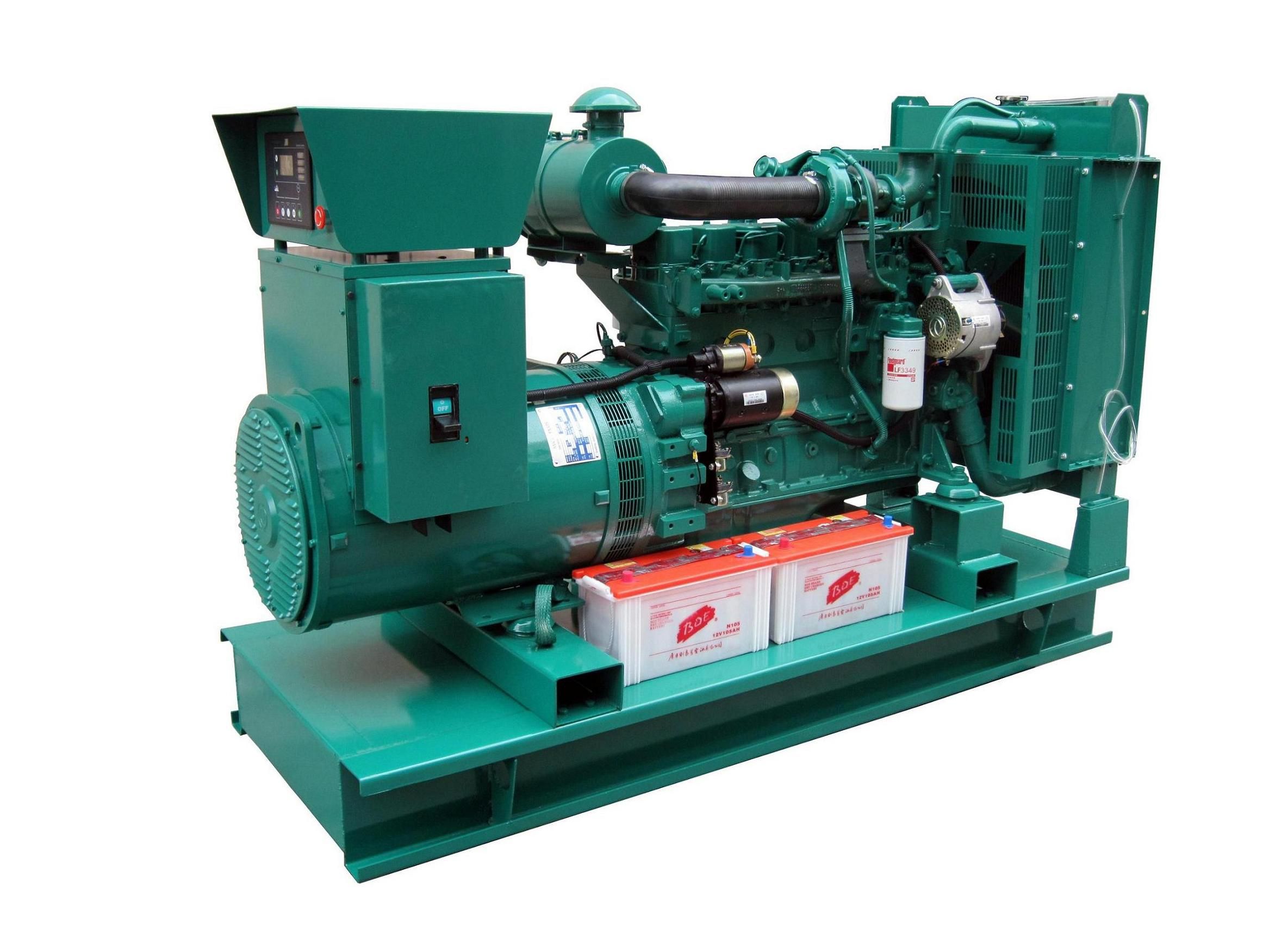

Cummins diesel generator set
Model of generator set: SFJ220
50Hz
Prime power: 200KW/250kVA
Standby power of Cummins diesel generator set: 220KW/275kVA
60Hz:
Prime power of Silent Generator: 220KW/275kVA
Standby power of Generating Set: 240KW/300kVA
Commins diesel generator set parameters:
1. Power factor of silent generator: COSΦ =0.8lagging
2. Noise level of diesel genset: 60-65dB
3. Start-up mode: Electric
4. Fuel consumption: 50Hz52L/H; 60Hz: 60L/H
5. Rated currency(AMPS): 380
6. Protections of power generator for low oil pressure, high water temperature, over-speed, over-current
7. Package dimension of Generating Set: 3750mm*1500mm*1850L*W*Hweight: 3340Kg
Engine:
1. Cummins engine model: 6LTAA8.9-G2
2. Power: 50Hz: 220KW/60Hz: 240KW
3. Rated Voltage: 480/240V
4. Cylinders/ layout: 6L
5. Voltage Control: AVR
6. Insulation: H
7. Start-up mode: DC24V electric start
8. Protection: IP21
9. Overload: 110%
10. Displacement: 14L
11. Inter-Cooling: Air inter-cooling
12. Steady Speed Droop ≤ 1%
13. Speed-Governing: Electric
Alternator parameters:
1. Stamford modela: UCD274K
2. Power: 200KW/250kVA
3. Rated voltage: 380/220V
Singfo, one of the leading worldwide suppliers of power generators, is located in beautiful Zhujang Delta of China with the establishment in 1996. The Company has an office overseas as well as fourteen branches all over the country with more than four-hundred staff members through its years of development, of which has formed a chain from production. Sales, maintenance to customer service.
To meet its client's requirements, Singfo has set up and implemented a well-regulated management system targeting towards competitive price, excellent quality and reputable customer service in long-run. The Company has fostered a team focused on self-improvement, all of whom are rich in experience, professional at technology and dutiful to their work. Moreover, our services also cover technical output, scientific research, project design and construction.
