Home Generator Products 250kVA/200kw UK Perkins Diesel Generator-Rcg Power Brand Generator

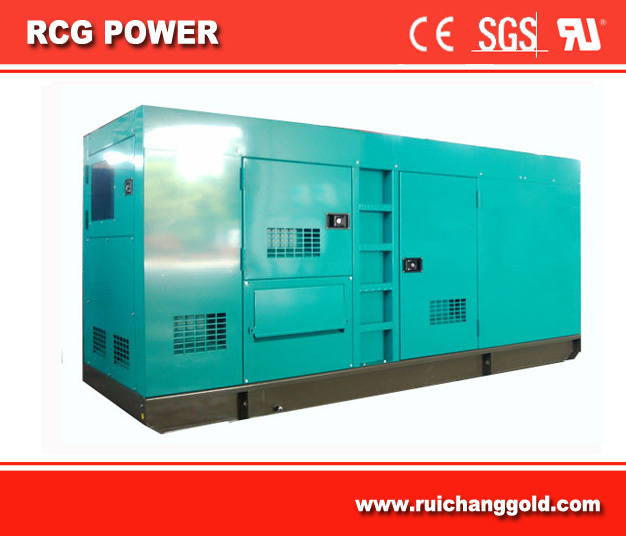

250kVA/200kw UK Perkins Diesel Generator-Rcg Power Brand Generator

250kVA/200kw UK Perkins Diesel Generator-Rcg Power Brand Generator
Price: US $ 29999/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Contact Supplier
Ruichang Gold Generating Equipment (Wuxi) Manufacturing Co., Ltd.
Showroom Product Company Profile
250KVA/ 200KW diesel generator powered by Perkins engine

Generating Set Specification

MODELR-P250
PRIME POWER (KVA/KW)250/200
STANDBY POWER(KVA/KW)275/220
Rated voltage(V)400/230
Rated speed(rpm)1500
Rated frequency(Hz)50
Power factor0.8
Ambient temperature(ºC)40
Altitude(m)1000
Connection type3 phase  4 wires
ENGINE MANUFACTURERPERKINS
Model1306C-E87TAG6
Rated Power(kW)239
No. of cylinders & configuration6 vertical in-Line
Method of operation4-stroke
Speed regulationElectric governor
Starting systemDC 24V Electronic start
Cooling methodClosed-circuit cooling system
Total displacement(L)8.7
Compression ratio16.9:1
Bore×Stroke(mm)116.6×135.9
100% Load fuel consumption(L/h)≤45
ALTERNATOR MANUFACTURERSTAMFORD
Number of Phase3
Connection Type3Phase and 4Wires
Number of Bearing1
Power Factor0.8
Protection GradeIP23
Terminal12
Winding/ Pitch100% Copper   2/3 Pitch
Cooling FanCast alloy aluminum
Exciter TypeBrushless, Self-Exciting
Insulation Class, Temperature RiseH/H
Telephone Influence Factor(TIF)TIF <50 / THF<2%
Total Harmonic TGH/THC<1.5% at no load / <5% at load
Voltage Regulation, Steady State≤±1%
Sustained Short-Circuit Current300%(3 in):10s
CONTROL SYSTEMDSE 7320  SERIES

Gensets Model Prime Power Standby Power Engine Alternator  Open Sets Soundproof Sets Fuel Consumption (L/h)
kVA kW kVA kW Model NO.Cylinder L*W*H(mm) Weight(kg) Tank(L) Sound level at 1 m(dB) L*W*H(mm) Weight(kg) Tank(L) Sound level at 7 m(dB) 100% 50%
R-P9/S 9  7.2  10  8  403D-11G 4.L PI044E 1200×600×950 360 50 91 1700×860×1060 460 35 68 2.0  1.0
R-P13/S 13  10  14  11  403D-15G 4.L PI044F 1200×600×950 430 60 91 1700×860×1060 530 35 68 2.8  1.4
R-P15/S 15  12  17  13  404D-22G 4.L PI044G 1350×660×1050 500 60 93 2000×860×1095 600 45 70 3.3  1.7
R-P20/S 20  16  22  18  404D-22G 4.L PI144D 1350×660×1050 530 60 93 2000×860×1095 650 45 70 4.4  2.3
R-P25/S 25  20  28  22  404D-22TG 4.L PI144E 1400×660×1050 550 60 93 2000×860×1150 680 45 70 5.5  2.9
R-P30/S 30  24  33  26  1103A-33G 4.L PI144G 1550×760×1150 800 65 95 2200×1000×1300 1050 85 70 6.7  3.5
R-P38/S 38  30  41  33  1103A-33TG1 4.L PI144J 1600×760×1200 920 75 95 2450×1000×1300 1150 95 70 8.3  4.3
R-P43/S 43  34  47  37  1103A-33TG1 4.L PI144K 1600×760×1200 950 75 95 2450×1000×1300 1170 95 70 9.4  4.9
R-P50/S 50  40  55  44  1103A-33TG2 6.L UCI224D 1700×760×1250 1000 75 96 2450×1000×1300 1250 95 72 11.1  5.8
R-P60/S 60  48  66  53  1103A-33TG2 6.L UCI224E 1700×760×1250 1030 75 96 2450×1000×1300 1300 95 72 13.3  6.9
R-P65/S 65  52  72  57  1104A-44TG1 6.L UCI224F 1900×760×1250 1050 100 96 2600×1000×1485 1400 135 75 14.4  7.5
R-P80/S 80  64  88  70  1104A-44TG2 6.L UCI224G 1900×760×1250 1100 100 96 2600×1000×1485 1450 135 75 17.7  9.2
R-P100/S 100  80  110  88  1006TG2A 6.L UCI274C 2150×860×1490 1250 200 98 2900×1100×1400 1600 145 75 21.2  11.0
R-P138/S 138  110  151  121  1006TAG 6.L UCI274E 2250×860×1450 1400 220 98 3200×1140×1450 1800 270 75 29.2  15.2
R-P150/S 150  120  165  132  1006TAG2 6.L UCI274F 2250×860×1450 1450 220 98 3200×1140×1450 1850 270 75 31.8  16.5
R-P180/S 180  144  198  158  1106C-E66TAG4 6.L UCI274G 2500×850×1450 1700 235 100 3300×1200×1490 2200 270 78 38.2  19.8
R-P200/S 200  160  220  176  1306C-E87TAG3 6.L UCI274H 2600×1050×1600 2400 280 100 3700×1400×1900 2800 400 78 42.4  22.1
R-P225/S 225  180  248  198  1306C-E87TAG4 6.L UCI274J 2600×1050×1600 2450 280 102 3700×1400×1900 2850 400 80 47.7  24.8
R-P250/S 250  200  275  220  1306C-E87TAG6 6.L UCDI274K 2600×1050×1600 2500 280 102 3700×1400×1900 2950 400 80 53.0  27.6
R-P313/S 313  250  344  275  2206C-E13TAG2 6.L HCI444ES 3250×1120×2000 3400 480 102 4500×1650×2055 3750 660 80 66.3  34.5
R-P350/S 350  280  385  308  2206C-E13TAG2 6.L HCI444E 3250×1120×2000 3450 480 102 4500×1650×2055 3900 660 80 70.8  36.8
R-P400/S 400  320  440  352  2206C-E13TAG3 6.L HCI444F 3250×1120×2000 3500 480 102 4600×1650×2055 4000 660 80 81.0  42.1
R-P450/S 450  360  495  396  2506C-E15TAG1 6.L HCI544C 3500×1120×2050 3600 550 102 5000×1800×2050 4200 750 80 91.1  47.4
R-P500/S 500  400  550  440  2506C-E15TAG2 6.L HCI544D 3500×1120×2050 3700 550 102 5000×1800×2050 4500 750 80 101.2  52.6
R-P600/S 600  480  660  528  2806A-E18TAG1A 6.L HCI544E 3500×1300×2100 4000 750 102 5000×1800×2500 5000 1100 80 121.4  63.2
R-P650/S 650  520  715  572  2806A-E18TAG2 6.L HCI544F 3500×1300×2100 4600 750 102 5000×1800×2500 5500 1100 82 131.6  68.4
R-P725/S 725  580  798  638  4006-23TAG2A 6.L LVI634B 4100×1660×2200 5300 880 102 5600×1900×2500 6800 1200 82 146.7  76.3
R-P800/S 800  640  880  704  4006-23TAG3A 6.L LVI634C 4100×1660×2200 5500 880 106 5600×1900×2500 7000 1200 83 161.9  84.2
R-P900/S 900  720  990  792  4008TAG1A 6.L LVI634D 4750×2100×2450 7700 1200 106 6050×2435×2585( 20P) 9200 1400 83 182.2  94.7
R-P1000/S 1000  800  1100  880  4008TAG2A 6.L LVI634E 4750×2100×2450 7900 1200 106 6050×2435×2585( 20P) 9400 1400 83 202.4  105.3
R-P1250/S 1250  1000  1375  1100  4012-46TWG2A 6.L LVI634G 4900×1800×2500 10000 \ 106 12192×2435×2896( 40HP) 11500 \ 83 253.0  131.6
R-P1375/S 1375  1100  1513  1210  4012-46TWG3A 6.L PI734B 4900×2100×2550 10100 \ 106 12192×2435×2896( 40HP) 11600 \ 83 278.3  144.7
R-P1500/S 1500  1200  1650  1320  4012-46TAG2A 6.L PI734C 5000×2200×2550 10200 \ 106 12192×2435×2896( 40HP) 11800 \ 83 303.6  157.9
R-P1650/S 1650  1320  1815  1452  4012-46TAG3A 12.V PI734D 5000×2200×2550 10200 \ 108 12192×2435×2896( 40HP) 11900 \ 85 334.0  173.7
R-P1750/S 1750  1400  1925  1540  4016TAG 12.V PI734E 6850×2250×2850 13000 \ 108 \ 14800 \ 85 354.2  184.2
R-P1875/S 1875  1500  2063  1650  4016TAG1A 12.V PI734E 6850×2250×2850 13000 \ 108 \ 15000 \ 85 379.5  197.3
R-P2000/S 2000  1600  2200  1760  4016TAG2A 12.V PI734F 6850×2250×2850 13500 \ 108 \ 15500 \ 85 404.8  210.5
R-P2200/S 2200  1760  2420  1936  4016-61TRG3A 12.V PI734G 6850×2250×2850 15000 \ 110 \ 18000 \ 85 445.3  231.6
R-P2250/S 2250  1800  2475  1980  4016-61TRG3A 16.V PI734G 6850×2250×2850 15000 \ 110 \ 18000 \ 86 455.4  236.8

Prod Model: R-P250Z
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Basic Diesel Generator
Output Type: AC Three Phase
Ruichang Gold Generating Equipment (Wuxi) Manufacturing Co., Ltd., established in 1982, is a manufacturer of a wide variety of diesel generator sets and portable power supplies. We are able to offer high quality diesel generator sets with imported engines, trailer-mounted power stations, mobile and container power stations, and even bunker power generator sets.

Our products are suitable for such industries as defense, telecommunications, transportation and natural resources. Additionally, buildings including hospitals, banks, and offices may use our power stations as either a mobile or stationary backup power supply. We accept special orders from clients and are able to meet all kinds of special technical requirements.

As a Sino-foreign joint-venture (Ruichang Gold Co., Ltd. Hong Kong and Wuxi Ruichang Electro Equipment Plant), we aim for the highest quality standards. We are ISO9001 certified and our products are manufactured according to strict internal quality control standards.

Our company principle is "Customers and credibility first" and always provide superior services and free consultation. Whether your inquiries are regarding product selection, systems integration, generator room designs or other technical details we will be happy to assist you with your needs.

We welcome both new and existing customers to come take a look at our current lineup and hope that you will choose our brand of competitively priced quality products. Please contact us for further details and we will promptly answer any questions you may have.
