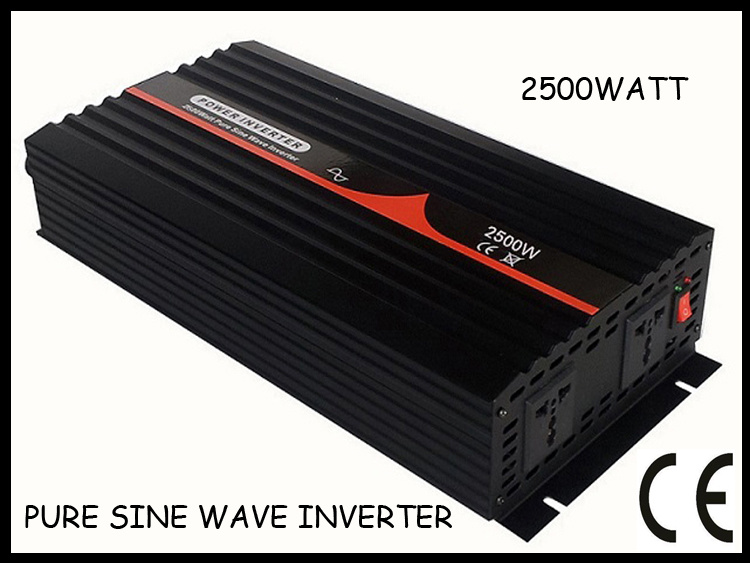

Feature:
1) It is featured as high reliability, and low failure rate, with the advanced double CPU SCM intelligent controlling technology.
2) Pure sine wave output, strong ability of driving load, wide range of application
3) Perfect protection functions (Overload protection, inside overheat protection, output short circuit protection, input low-voltage protection, input overvoltage protection), enhanced the reliability of the product.
4) Small and light: With the technology of CPU centralized control and SMD inside, the product is very small and light.
5) Intelligent control of cooling fan: Using CPU to control the working status of the cooling fans extends the service life of the cooling fans, saves the power and improves the working efficiency.
6) Low noise but high efficiency while working.
Application:
1) In-car or on-boat devices series: Military vehicle, police cars, medical ambulance, ships, traffic lights, and etc.
2) Industry equipments series: Solar energy, wind power, gas discharge lamp and etc.
3) Office area: Computer, printer, copier, scanner, digital camera and etc.
4) Kitchen utensils series: Micro-wave oven, induction cooker, refrigerator, and etc.
5) House appliance devices: Electric fans, vacuum cleaner, AC, lighting lamps, and etc.
6) Power tool series: Electric saw, drilling machine, punching machines, air compressor etc.
Features:
1. Output waveform: Pure sine wave
2. High efficiency: 90%
3. 24V DC input
4. 100V-120V AC output
5. Output frequency: 50Hz/60Hz
6. Continuous output power: 2500W
7. Peak power: 5000W
8. High-velocity cooling fan
9. Overload protect, over voltage protect
10. Low voltage cut-out, low voltage alarm
| Model | BIP-2500 |
| Input | Voltage | 24V |
| VoltageRange | 22-30V |
| No Load Current Draw | < 1A |
| Efficiency | 90% |
| Connector | Cables with connector |
| Output | AC Voltage | 100v-120V AC |
| Continuous Power | 2500W |
| Surge Power | 5000W |
| Waveform | Pure Sine Wave |
| Frequency | 50Hz or 60Hz |
| Protection | Low Voltage Alarm | YES 20.4~21.6V |
| Low Voltage Protection | YES 18.4~19.6V |
| Over Load Protection | YES (120%~130%) |
| Over Voltage Protection | YES 30~32V |
| Thermal Protection | YES, (shutdown) |
| Short circuit protection | YES, (shutdown) |
| Environment | Working Temperature | -5° C ~ +40° C |
| Working Humidity | 10% ~ 90% RH |
| Storage Temperature | -20° C ~ +50° C |
| Storage Humidity | 5% ~ 95% RH |
| Package | Dimension(L*W*H) | 47*14*13.5 (cm) |
| Net Weight | 5.6Kg |
| Gross Weight | 7Kg |
| Qty/CTN | 1pc/CTN |
| Cooling | Cooling Fan |
| Total Harmonic Distortion | THD < 3% |
| Certification | CE ROHS |
Yuyao Bert Electrical Co., Ltd is a professional engaged in the solar system, inverter, switching power supply, solar controller, and other products production and research and development. For power, business, communications, power plants and transformer substations and other industries provide highly reliable inverter power supply, inverter products, solutions and systems integration. Is a collection of scientific research and development, production and management, technical services for the integration of high-tech enterprises. And for the majority of users to provide quality comprehensive system design, installation and testing services, with the tenet of "users first, service first"!
The company has a group of senior engineers engaged in the development of power electronic technology, masters, senior technical personnel, the company with first-class quality, perfect service and high cost performance to win the market
High level of innovation as the driving force of our continuous development, we continued support for research and development of high input, to ensure the level of the innovation will continue, so the company production of various series of power products has been linked to one of the world' S most advanced technology protection synchronization.
The company produces the series of products through the CE certification, in line with the standard of "green power".
Company production of power supply products, respectively, covering 300-6000 - w such as a variety of specifications. Using the current international most advanced IGBT and high frequency sine wave pulse width modulation (SPWM), double inverter technology. Leading technology, excellent technology makes the product more competitive in the same industry. Small size, light weight, high efficiency, good reliability and high cost performance, and many other advantages by the user' S consistent high praise.
Products has long been widely used in electric power, steel mills, post and telecommunications, military industry, petroleum, railway, shipping and other AC, DC uninterruptible power supply applications. In various industries, give play to the important role of the electric protector for China' S construction has made great contribution to the industrialization of information.
The company sets: Technology development department, quality department, quality control department, production department, Marketing Department, purchasing department.
The company' S tenet: Pursue forever, quality first-class.
For all products of the company established a complete set of internal control standards, and "quality manual" for products used by each element made specific provision, by the quality inspection department, quality control department to ensure jitc work, adopt one ticket is overruled make, does not meet the requirements of the "quality manual" devices disorderly, and not online production.
For all products of the company established a complete set of internal control standards, and "quality manual" for products used by each element made specific provision, by the quality inspection department, quality control department to ensure jitc work, adopt one ticket is overruled make, does not meet the requirements of the "quality manual" devices disorderly, and not online production.
As the design of the company' S products in the domestic leading and at the same time the company' S internal implementation of product a comprehensive quality management, products with high reliability and long service life, fast delivery. Commitment to the user (for) two years have quality problem first year replacement new products...
