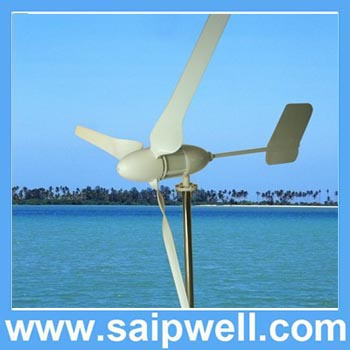

1. Fan-driven generator
2. Sine wave
3. Low start wind speed&low noise
4. High efficiency
5. CE&RoHS
Detailed Description:
1. Adopt high-quality and high-strength permanent materials to ensure high energy conversion efficiency.
2. Adopt high-quality and high-strength aluminum alloy to make the unit light weight and easy installation.
3. The fiber-glass blades have the advantages of great intensity and excellent fatigue resistance.
4. Stainless steel shaft and screws to avoid rust and corrosion
5. And the surface is coated with pollution-free material. Working environmental temperature from -20C-50C.
6. Electromagnetic brake is with the function of over-speed and over-current protection.
|
Model |
S-400 |
S-600 |
S-1000 |
|
Rated power(W) |
400 |
600 |
1000 |
|
Rated voltage (DCV) |
24 or 48 |
24 or 48 |
24 or 48 |
|
Rated current(A) |
16 or 8 |
25 or 12.5 |
41/20 |
|
Rotor diameter(M) |
1.5 |
1.6 |
1.8 |
|
Start-up wind speed(m/s) |
2.5 |
2.5 |
2.5 |
|
Rated wind speed/FONT>m/s |
9.6 |
10.5 |
13 |
|
Security wind speed(m/s) |
45 |
45 |
45 |
|
wind turbine type |
permanent magnet synchronous generator |
permanent magnet synchronous generator |
permanent magnet synchronous generator |
|
Yaw mode |
mechanical |
mechanical |
mechanical |
|
wind turbine work life(year) |
15-20 |
15-20 |
15-20 |
|
Blade material |
carbon fiber |
carbon fiber |
carbon fiber |
|
Blade quantity |
3 or 5 |
3 or 5 |
3 |
|
Guy cable tower height |
6 |
6 |
6 |
|
Matched inverter type |
sine wave |
sine wave |
sine wave |
