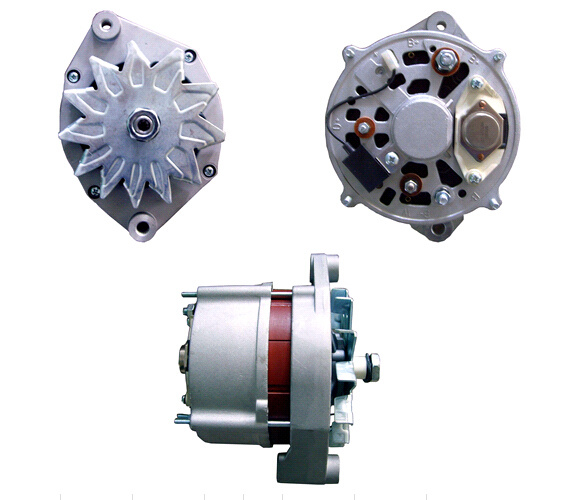

| Unit Type | Alternator |
| Part Type | UNIT |
| Voltage | 24 |
| Rotation | CW |
| Amperage | 55 |
| Regulator | IR |
| Fan Type | EF |
| Manufacturer | BOSCH |
| Brief | VOLVO, VOLVO BM 1978-96
ADDL INFO: EUROPEAN APPLICATIONS
ADDL INFO: BOTTOM MOUNTING HOLE 11.4mm OD
SEARCH: 490677 (LATER VERSION)
SEARCH: 488489 488491 (PARIS RHONE)
SEARCH: 488659 488660 (PARIS RHONE)
SEARCH: 494187 (ISKRA) |
| Detailed | Earlier Versions of This Unit Came With an 11.4mm OD Bottom Mounting Hole, But Later Versions Used a 14.2mm OD Bottom Mounting Hole. It May Be Necessary to Change the Mounting Hardware if Installing a Later Version Unit in an Earlier Application. |
| MFG# | MFG NAME |
|---|
| ABO0371 | ARROWHEAD |
| IA9422 | ARROWHEAD (OEM) |
| 12293 | LESTER |
| 220-322A | PIC |
| 12293 | BBB HD |
| 0-120-469-523 | BOSCH |
| 860135 | BUTEC |
| 111528 | CARGO |
| DRA3840 | DELCO REMAN (EUROPE) |
| A-6332 | DIXIE |
| CA500IR | HC PARTS |
| CA857IR | HC PARTS |
| IA 0710 | LETRIKA (ISKRA) AFTERMARKET |
| IA 9422 | LETRIKA (ISKRA) AFTERMARKET |
| LRA02775 | LUCAS ELECTRICAL EUROPE |
| X612293 | MPA HD |
| 612293 | NAPA HD |
| ALT-0106 | NSA |
| 1607362 | VOLVO |
| ALT14017 | WOOD AUTO |
| MAKE | TYPE | MODEL | YEAR | ENGINE |
|---|
| VOLVO | Buses | B6F | 1979 | 5.5L Dsl |
| VOLVO | Buses | B6F | 1980 | 5.5L Dsl |
| VOLVO | Buses | B6F | 1981 | 5.5L Dsl |
| VOLVO | Buses | B6F | 1982 | 5.5L Dsl |
| VOLVO | Buses | B6F | 1983 | 5.5L Dsl |
| VOLVO | Buses | B6F | 1984 | 5.5L Dsl |
| VOLVO | Buses | B6F | 1985 | 5.5L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F10 | 1977 | 9.6L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F10 | 1978 | 9.6L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F10 | 1979 | 9.6L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F10 | 1980 | 9.6L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F10 | 1981 | 9.6L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F10 | 1982 | 9.6L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F10 | 1983 | 9.6L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F10 | 1984 | 9.6L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F10 | 1985 | 9.6L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F12 | 1980 | 12.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F12 | 1981 | 12.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F12 | 1982 | 12.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F12 | 1983 | 12.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F12 | 1984 | 12.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F12 | 1985 | 12.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F6 | 1980 | 5.5L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F6 | 1981 | 5.5L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F6 | 1982 | 5.5L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F6 | 1983 | 5.5L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F6 | 1984 | 5.5L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F6 | 1985 | 5.5L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F7 | 1978 | 7.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F7 | 1979 | 7.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F7 | 1980 | 7.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F7 | 1981 | 7.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F7 | 1982 | 7.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F7 | 1983 | 7.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F7 | 1984 | 7.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | F7 | 1985 | 7.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N10 | 1979 | 9.6L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N10 | 1980 | 9.6L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N10 | 1981 | 9.6L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N10 | 1982 | 9.6L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N10 | 1983 | 9.6L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N10 | 1984 | 9.6L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N10 | 1985 | 9.6L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N12 | 1972 | 12.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N12 | 1973 | 12.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N12 | 1974 | 12.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N12 | 1975 | 12.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N12 | 1976 | 12.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N12 | 1977 | 12.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N12 | 1978 | 12.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N12 | 1979 | 12.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N12 | 1980 | 12.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N12 | 1981 | 12.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N12 | 1982 | 12.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N12 | 1983 | 12.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N12 | 1984 | 12.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N12 | 1985 | 12.0L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N7 | 1974 | 6.7L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N7 | 1975 | 6.7L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N7 | 1976 | 6.7L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N7 | 1977 | 6.7L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N7 | 1978 | 6.7L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N7 | 1979 | 6.7L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N7 | 1980 | 6.7L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N7 | 1981 | 6.7L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N7 | 1982 | 6.7L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N7 | 1983 | 6.7L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N7 | 1984 | 6.7L Dsl |
| VOLVO | Medium & Heavy-Duty Trucks | N7 | 1985 | 6.7L Dsl |
| AEP Number | AEP (OEM) | PART TYPE |
|---|
| ABO7502 | | BRUSH |
| | B1127011071 | HARDWARE KIT |
| ABO1218 | B1127320961 | RECTIFIER |
| ABO6027 | B1197311304 | REGULATOR w/BRUSHES |
| | | STATOR |
| | B1123429201 | THRU BOLT |
