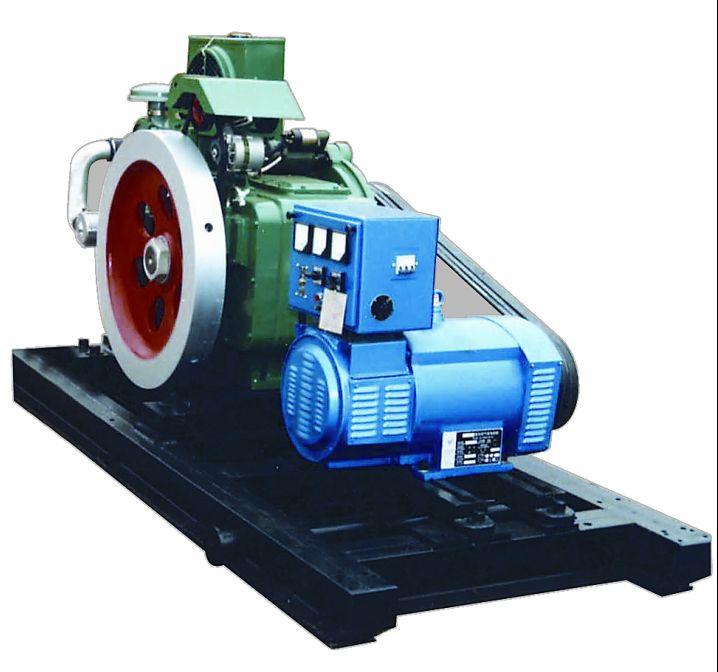

Main Specifications of the Natural Gas Generator set
Model: 24GF47-T
Engine model: T1190N
Alternator model: TFW-24IV
Rated power: 24 kW
Rated current: 43.3A
Rated voltage: 400V/230V
Total weight of exhaust gas: 150kg/h
Lowest speed at zero load: 400 RPM
Rated speed: 850r/min
Rated frequency: 50Hz
Rated power factor: 0.8 P. F
Starting method: 24V DC motor starting
Voltage regulation method: Automatic
Speed regulating method: Mechanical speed regulating
Exciting method: Brushless
Phase and connection: 3 phase-4 wire connection
Cooling method: Forced water cooling
Cylinder bore: (mm) 190
Cylinder stroke: (mm) 210
Compression ratio: 9: 1
Oil consumption ≤1.2g/kWh
Heat consumption: 11MJ/kWh
Gas consumption: 7.5Nm³/h
Net weight: 2000kg
Overall dimension: 2885.1290.1420(mm)
In order to extend our foreign market share, we are seeking cooperation and foreign agents in all over the world.
JDEC, a subsidiary of CNPC (China National Petroleum Corporation), formed in 1920 and based in the beautiful city of springs-Jinan, Shandong Province, P. R. China, specializes in manufacturing all kinds of gas generator sets and diesel generators with different power ranges.
JDEC is targeting the market worldwide. Gas and diesel gensets are exported to more than 30 countries. In 1996, JDEC was listed in Shenzhen Stock Exchange and cooperated with AVL of Austria. Now, JDEC covers an area of 680, 000sqm, has more than 3100 employees with an annual production capacity of 5, 000 sets, and serve customers promptly and efficiently.
JDEC owns advanced design standard&first level production equipments, international advanced machining center, products testing center, physical & chemical test center and measuring center. And attained BV, ISO, CE, HSE, CCS certifications. Meanwhile, JDEC successively obtained National Customer Satisfaction.
The main products of JDEC:
10KW~1100KW gas generators (fueled by natural gas, biogas/landfill gas, biomass,
Syngas, flue gas, coking gas, coal gas or coal bed gas etc. )
100KW~2000KW diesel generators
100KW~900KW dual-fuel generators
220KW~1200KW marine / train diesel engines
