Weichai series diesel generator, which is the newest diesel motors. The diesel motors are improved by Weichai power and British Ricardo Sino-British Joint Venture. They are classified into four cylinders and six cylinders. They are belong to the inline, water-cooled, four stroke and comnustion chamber type high speed direct injection diesel engines.

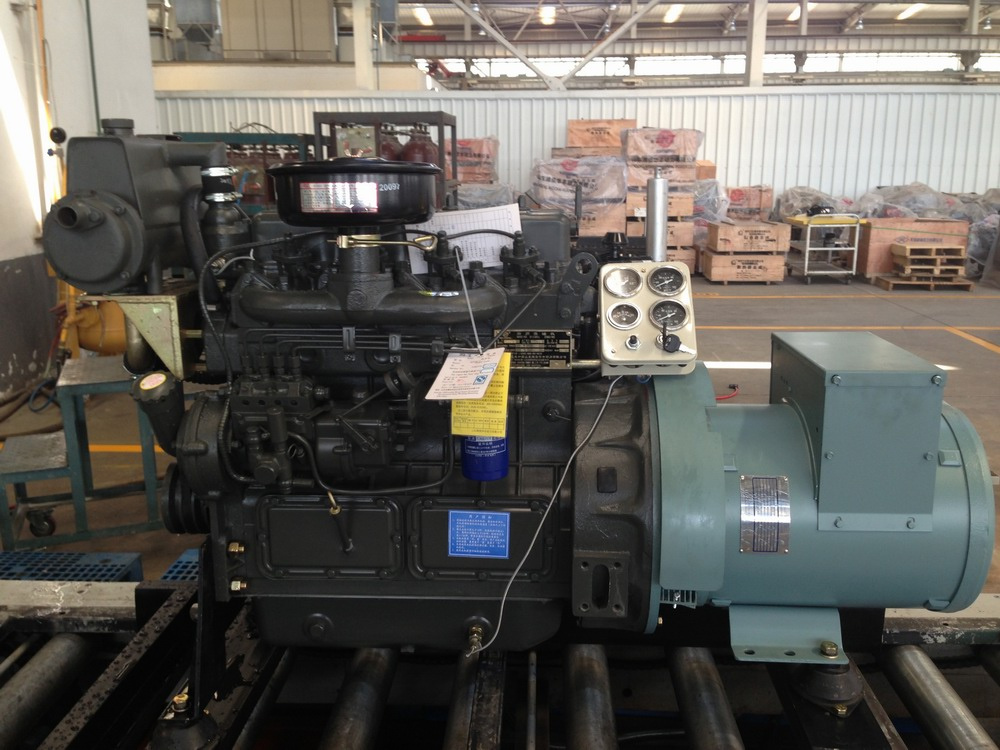

Weichai Marine Generator Sets are powered by Huafeng diesel engines, and fitted up with renowned generators.
Engine cooled by heat exchanger and sea water pump.
Alternator Options: Stamford/Marathon/Leroy Somer/Victory.
Parallel connection: Two and more normal marine generating sets can transfer loading without stopping, and realize parallel.
With efficiency anti-vibration devices.
Cold rolled steel one time molded base.
Advantages:
high reliability,low fuel consumption,large torque,low discharge, small volumn and large power .
High reliability, low use and maintenance cost.
The power output of Weichai marine Gensets is ranging from 15kVA to 112.5kVA, they are widely used in power field like marie, water pump, irrigation, flood control, slurry pump.
Product Standard:
Approved by Classification Society of CCS and ZY Certificate.GB/T 13032-1997 Standard is applied for the manufacturer and inspection of the generating sets.
|
Genset Model |
Power
KVA KW
Prime/Standby |
Rated Currency(A) |
Engine model |
Max Output Power(KW) |
Rated Speed(r/min) |
Starting Method |
Net weight(kg) |
Dimensions LXWXH(mm) |
|
CCFJ12J |
15/16 12/13 |
22 |
495D4-2 |
19 |
1500 |
Electric |
570 |
1212× 550× 1038 |
|
CCFJ16J |
20/22 16/17 |
29 |
495D4-2 |
29 |
1500 |
Electric |
650 |
1330× 606× 1044 |
|
CCFJ20J |
25/27 20/22 |
36 |
495D4-2 |
29 |
1500 |
Electric |
900 |
1635× 650× 1100 |
|
CCFJ24J |
30/33 24/26 |
44 |
K4100D4 |
33 |
1500 |
Electric |
890 |
1650× 650× 1135 |
|
CCFJ30J |
37/41 30/33 |
54 |
R4105D4-2 |
40 |
1500 |
Electric |
920 |
1689× 650× 1140 |
|
CCFJ40J |
50/55 40/44 |
74 |
R4105ZD4-2 |
54 |
1500 |
Electric |
885 |
1961× 650× 1140 |
|
CCFJ50J |
62/69 50/55 |
90 |
R6105ID5 |
64 |
1500 |
Electric |
1018 |
1935× 650× 1140 |
|
CCFJ64J |
80/88 64/70 |
115 |
R6105ZD4 |
75 |
1500 |
Electric |
1110 |
1989× 650× 100 |
|
CCFJ75J |
93/103 75/82 |
135 |
R6105ZLD4 |
92 |
1500 |
Electric |
1390 |
2300× 740× 1500 |
|
CCFJ90GF |
112/123 90/99 |
162 |
R6105AZLD4 |
110 |
1500 |
Electric |
2400 |
2864× 900× 1453 |
