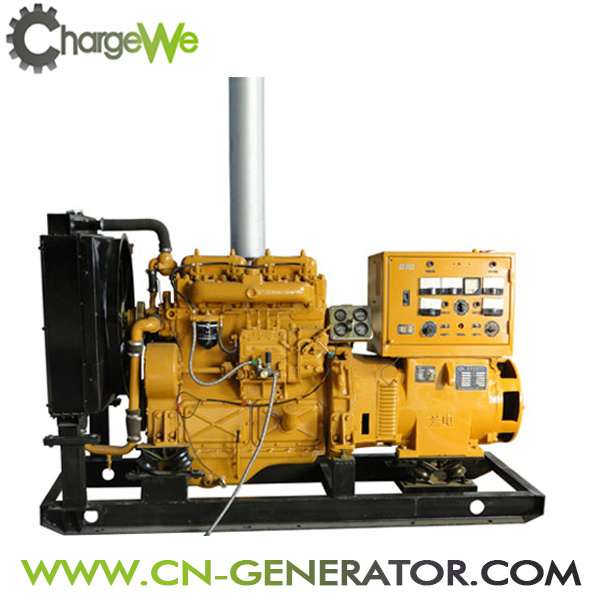

24KVA Biomass Gas Natural Gas Biogas Power Generator Set:
Biogas generator sets application
1.Breeding enterprise-biogas generator power
2.Industry- clcohol plant ,starch factory anaerobic sewage treatment
3.refuse landfill-sewage biogas generator power
Requirements for biogas genset
Within 1m from pressure valve of gas intake
1.Gas temperature≤40ºC
2.Pressure 3~20Kpa,pressure changing rate≤1kpa
3.H2S≤200mg/Nm3
4.NH3≥20mg/Nm3
5.CH4 content≥40%,changing rate≤30mg/Nm3
6.Impurity particle size ≤5μm
7.Moisture content ≤40g/Nm3
| Model No. | CW-20GFZ |
| Engine No. | CW4105 |
| Gas mix type | outside |
| Rated power | 20kw |
| Rated voltage | 400V/230V |
| Phase | 3p4w |
| Rated frequency | 50Hz |
| Rated rotation | 1500r/min |
| Rated power factor | 0.8 |
| Rated current | 36A |
| Heat consumption | ≤11.5mj/kw.h |
| Gas pressure | 3-20kpa |
| Cylinder number | 4 |
| Cylinder diameter | 105mm |
| Stroke | 125mm |
| Compression ratio | 11:01 |
| Aspiration mode | Naturally aspirated |
| Ignition method | plug ignition |
| PresPressure regulation mode | Automatic pressure regulation |
| Speed | Electronic |
| regulation mode | speed regulation |
| Lubrication mode | Pressure and splash lubrication |
| Cooling mode | Closed/open cooling |
| Starting mode | 24V electric motor |
| Overhaul period | ≥2500 |
| Noise | ≤105 |
| Exhaust temperature | ≤650ºC |
| Displacement | 2.8L |
| Genset dimensions | 2200×850×1300 |
| Genset weight | 900kg |
Shandong Chaiwei Power Equipment Co., Ltd is a comprehensive high-tech enterprises in China with more than 15 years experiences, focusing on new type of environmental protection generators' development production and sale. We have our own brand "CHARGEWE" generator set, including diesel generator set, biogas generator set, nature gas generator set, biomass generator set, coal gas generator set etc. From 20kw to 1000kw with CE & ISO9001: 2008 certificate, Besides we also offer the diesel engine and spare parts for gas/diesel generator set. Our products have been exported to Middle East, South America, Southeast Asia, Russia, Eastern Europe and have got a high reputation on the domestic and overseas market.
About the products, we have self-developed team to design and improve the generator sets to meet different customers` need. So the OEM and ODM are available. We have completed quality inspection system to make sure each product that customer get is perfect, and the professional after-sale team to guarantee your generator set be correctly installed and running normally. CHARGEWE will bring best products and service with most reasonable price for you. From the foundation of our company, we committed to leading as pioneer of the generator industry and contributing ourselves for China's electricity industry. We believe CHARGEWE will be your best partner in generator area.
