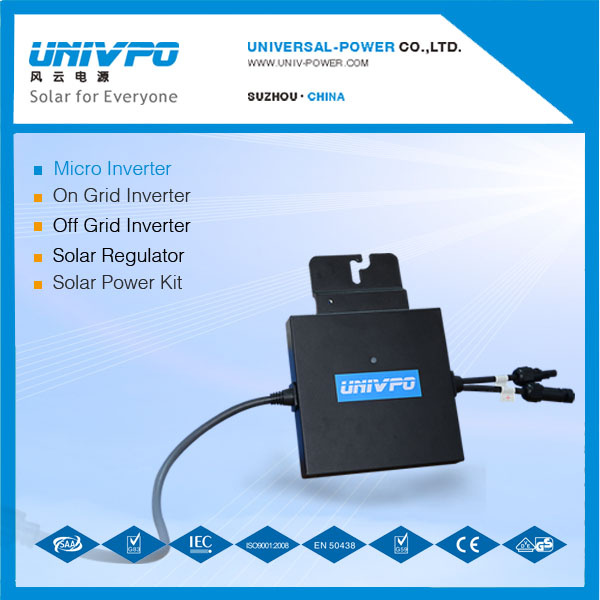

248W PV microinverters？ Grid tie /On grid？ (UNIV-M248)
A micro inverter consists of a small box located on the back of or situated very close to a solar panel. Its role is to convert the DC electricity produced by a single solar panel.
Features & Advantage:
· Panel level MPPT (Maximum Power Point Tracking)
· Increase system availability - a single malfunctioning panel will not have such an impact on the entire array
· Panel level monitoring
· Lower DC voltage, increasing safety. No need for ~ 600 V DC cabling requiring conduits
· Allows for increased design flexibility, modules can be oriented in different directions
· Increased yield from sites that suffer from overshadowing, as one shadowed module doesn't drag down a whole string
· No need to calculate string lengths - simpler to design systems
· Ability to use different makes/models of modules in one system, particularly when repairing or updating older systems
warranty time :15 years
CE/SAA approved
Specification:
|
Model |
UNIV-M248 |
|
Input Data (DC) |
|
|
Recommended maximum input power |
160-300W |
|
Maximum input DC voltage |
50V |
|
Start voltage |
24V |
|
Peak power tracking range |
24V ~ 40V |
|
Operating range |
22V ~ 50V |
|
Maximum DC short circuit current |
15A |
|
Maximum input current |
10A |
|
Output Data (AC) |
|
|
Maximum output power |
248W |
|
Nominal output current |
1.08A |
|
Maximum output current |
1.11A |
|
Nominal voltage range |
184V ~ 265V |
|
(Adjustable with Country Deviation) |
|
Nominal frequency range |
46Hz ~ 61.2Hz |
|
(Adjustable with Country Deviation) |
|
Power factor |
>0.99 |
|
Total Harmonic Distortion |
<2.4% |
|
Maximum units per branch |
15 |
|
Efficiency |
|
|
Peak inverter efficiency |
95.20% |
|
CEC weighted efficiency |
94.80% |
|
Nighttime power consumption |
100mW |
|
Mechanical Data |
|
|
Enclosure environmental rating |
IP65 |
|
Operating temperature range |
-40 o C ~ +85 o C |
|
Dimensions (WxHxD) |
230mm*165mm*25mm |
|
Weight |
1.4kgs |
|
Features |
|
|
Communication |
PLCC (Power Line Carrier Communication) |
|
Warranty |
15 Years |
