Shanghai Liberty Industrial Co., Ltd. is a hi-tech company engaged in sales and service of solar cells, solar panels, and photovoltaic systems, who is the sales window of Jiangsu Kingsun Solar Power Technology Co., Ltd. located in Shanghai.

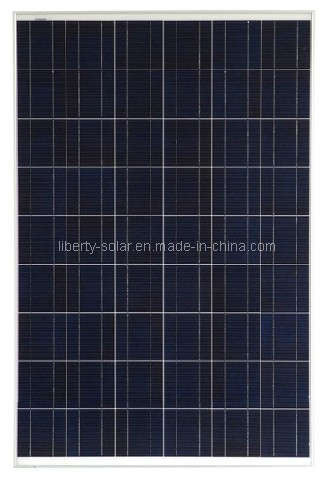

230W Poly-crystalline Silicon Solar Panel / Solar Panel / PV Module / PV Panel
SOLAR PANEL / PV MODULE:
1. Use A-grade solar cell with high efficiency;
2. High transmittance, low iron tempered glass with enhanced stiffness and impact resistance;
3. Anodized aluminum alloy frame with high mechanical strength for easy installation;
4. Anti-aging EVA and high flame resistant Back Sheet (TPT), to provide long-life and enhanced cell performance;
5. Outstanding electrical performance under high temperature and low irradiance conditions;
6. 100% apply EL(electroluminescence) technology;
7. 5 years limited warranty, 10 years limited warranty for 90% power output, 25 years limited warranty for 80% power output;
8. With CE, TUV, IEC61215 and IEC61730 certificate;
9. Payment terms: T/T 30 % as deposit in advance, the balance payment against by T/T or L/C.
APPLICATIONS:
1. Solar power stations;
2. Rural electrification, Small home power systems;
3. Power supply for traffic, security, gas industry;
4. 12V and 24V battery charging systems;
5. Other industrial and commercial applications.
|
Module |
LBTP210 |
LBTP220 |
LBTP230 |
LBTP240 |
|
Voc(V) |
35.9 |
36.1 |
36.2 |
36.4 |
|
Isc(A) |
7.82 |
8.04 |
8.24 |
8.4 |
|
Vmp(V) |
29.6 |
29.8 |
30 |
30.2 |
|
Imp(A) |
7.1 |
7.38 |
7.67 |
7.95 |
|
Pm(Wp) |
210 |
220 |
230 |
240 |
|
Operating Temperature |
-40C to +85C |
|
Maximum System Voltage |
1000 V DC |
|
NOCT |
48C± 2C |
|
Current Temperture Coefficient(%/k) |
0.06± 0.01 |
|
Voltage Temperature Coefficient(mV/k) |
-(155± 10) |
|
Power Temperature Coefficient(%/k) |
-(0.5± 0.05) |
|
Type of Output Terminal |
Junction Box |
|
Cable |
900mm, LAPP(4.0mm2) |
|
Connection |
Standard Plug and Socket |
|
Solar Cell |
156mm*156mm Poly-crystalline Silicon Solar Cell |
|
Type of Solar Cell |
Type P |
|
No. of Cells and Connections |
60(6*10) |
|
Dimension |
1640*990*50(mm) |
|
Weight |
21KG |
|
Certificates |
CE, TUV |
|
Applications |
Large and Medium-Sized Solar Power Station, Household Solar Power System. etc |
Shanghai Liberty Industrial Co., Ltd., is a hi-tech company engaged in sales and service of solar cells, solar panels, and photovoltaic systems, who is the sales window of Jiangsu Kingsun Solar Power Technology Co., Ltd. located in Shanghai.
The newly-built Photovoltaic Industrial Park of Jiangsu Kingsun Solar Power Technology Co., Ltd. is a several-hundred-million RMB project invested. The plant locates at Gaoyou Economic Development Zone in Jiangsu province belongs to the Yangtze river delta economic region with convenient traffic. As a professional manufacturer, KingSun is dedicating to design, develop, manufacture, distribute and install the photovoltaic products, which got the Certificates of ISO9001-2000, CCC, CE, TUV, Safety Production License and the Third Class Qualification in Municipal and Road Illumination Engineering. The products are widely exported to all over the world due to its high quality and reasonable price.
Based on our plant's professional produce, Liberty are committed to providing customers with professional, targeted service. Our Operation Principle: Live in the same Earth, Share the Green Environment. We hope that our service for you with cleaner of green energy, let the humanity and the earth more beautiful tomorrow.
