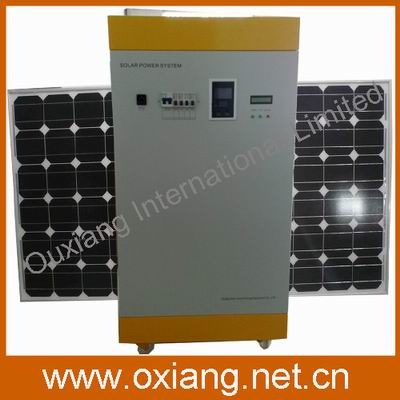

220V / 110V 5000W Solar Energy Systems for Home / Office with CE and RoHS

Solar Generator Is Llike Having a Secret Power Plant Hidden In Your Home!
With Solar Generators you get clean, quiet and reliable power and the best part is that the power is free when using the solar panels!

Now more than ever is the time to get a Backup Solar Generator Solution for your home, it can provide AC or DC Power, widely used

In the field, the family, the ship, the village, can supply power for the computer, TV, Fan and other household appliances.


The Solar power system consists of solar panels, solar controller, battery (group). If the output power to 220V AC or 110V, also need to configure the inverter. The role of the various parts:

(A)The solar panels: The solar panels are the core part of the solar system, the highest value. Its role is to make the sun's radiation be converted to electrical energy, sent or stored in batteries, or to promote the work load.
(B)The solar controller: The role of the solar controller to control the entire system, and played a battery charge protection, over-discharge protection. In the large temperature difference, the controller should have qualified temperature compensation. Additional functions, Additional functions, such as optical switch, control switch can be as options.;

(C)The batteries: General for lead-acid batteries, small micro-system, can also be used nickel metal hydride batteries, nickel-cadmium batteries or lithium batteries. Its function is to make the solar panels of electricity be stored, when need to release.
(D)The Inverter: The solar direct output is generally 48VDC, 12VDC, 24VDC. In order to 220VAC to provide electrical power, solar power system will need to be issued by the DC can be converted to electrical energy exchange, requiring the use of DC-AC inverter.

The solar system design needs to consider a few factors:
1, Where the solar system use? How the solar radiation condition?
2, How much is the system load?
3, The system is the number of output voltage, DC or AC?
4, How many hours a day are the system needs to work?
5, How many days do the system to supply power when the rainy weather
6, How load conditions? Is the electrical load pure resistance, capacitance and inductance? How much the starting current?

It can be used for the school, the hospital and public halls of photoelectric generator system photoelectric generator capacity: 1 to 10
Target facilities: Schools, hospitals, public or private residence halls usage: TV VCR, and telecommunication equipment, Lighting decor

Advantages: Responding to give priority to public and electric power facilities. Responding to collect fees: Use, below the food storage facilities, charging and water. Responding to control facilities management personnel system operation. Responding to significantly improve living standards.
Solar power: 1 to 10

Target facilities: Schools, hospitals, public halls or private houses
Usage: TV, video, telecommunications equipment, Lighting decor
Advantages: Responding to give priority to public and electric power facilities.
Responding to collect fees: Use, below the food storage facilities, charging and water.
Responding to control facilities management personnel system operation.
Responding to significantly improve living standard

Load appliances	Specifications	Power	Quantity	Daily wording time (hrs)	Daily power(W)
		(W)	(PCS)
Lighting		11	8	6	528
refrigerator		150	1	24	1000
color TV	19inch(led)	40	1	6	240
Satellite antenna		25	1	6	150
Washing machine		200	1	1	200
pump		200	1	2	400
small air-condition	1P	1000	1	4	4000
Total					6518
System Components: Solar panels:2000Wp;Battery:1200AH/12V;Pure wave Inverter:5000W ;Controller:50A48V; Accessories:power box/brackets/cables
Note: put the battery out of power box
volume(CBM):1.549     NW:655KG,G.W(KG):690kg     20GP:15set
