Generator Manufacturers and Factories

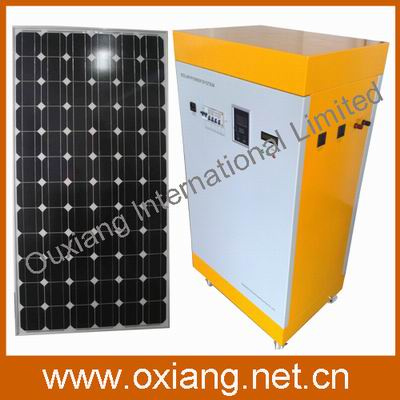

Home Generator Products 220V/110V 1500W Home Solar Powred Generators (OX-SP-082A)

220V/110V 1500W Home Solar Powred Generators (OX-SP-082A)

220V/110V 1500W Home Solar Powred Generators (OX-SP-082A)
Price: US $ 1500/Piece
Trade Terms: EXW
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union
The Solar power system:
Solar power system consists of solar panels, solar controller, battery (group). If the output power to 220V AC or 110V, also need to configure the inverter. The role of the various parts:

(A)The solar panels: The solar panels are the core part of the solar system, the highest value. Its role is to make the sun's radiation be converted to electrical energy, sent or stored in batteries, or to promote the work load.
(B)The solar controller: The role of the solar controller to control the entire system, and played a battery charge protection, over-discharge protection. In the large temperature difference, the controller should have qualified temperature compensation. Additional functions, Additional functions, such as optical switch, control switch can be as options.;

(C)The batteries: General for lead-acid batteries, small micro-system, can also be used nickel metal hydride batteries, nickel-cadmium batteries or lithium batteries. Its function is to make the solar panels of electricity be stored, when need to release.
(D)The Inverter: The solar direct output is generally 48VDC, 12VDC, 24VDC. In order to 220VAC to provide electrical power, solar power system will need to be issued by the DC can be converted to electrical energy exchange, requiring the use of DC-AC inverter.

The solar system design needs to consider a few factors:
1, Where the solar system use? How the solar radiation condition?
2, How much is the system load?
3, The system is the number of output voltage, DC or AC?
4, How many hours a day are the system needs to work?
5, How many days do the system to supply power when the rainy weather
6, How load conditions? Is the electrical load pure resistance, capacitance and inductance? How much the starting current?

It can be used for the school, the hospital and public halls of photoelectric generator system photoelectric generator capacity: 1 to 10
Target facilities: Schools, hospitals, public or private residence halls usage: TV VCR, and telecommunication equipment, Lighting decor
Advantages: Responding to give priority to public and electric power facilities. Responding to collect fees: Use, below the food storage facilities, charging and water. Responding to control facilities management personnel system operation. Responding to significantly improve living standards.
Solar power: 1 to 10

Target facilities: Schools, hospitals, public halls or private houses
Usage: TV, video, telecommunications equipment, Lighting decor
Advantages: Responding to give priority to public and electric power facilities.
Responding to collect fees: Use, below the food storage facilities, charging and water.
Responding to control facilities management personnel system operation.
Responding to significantly improve living standards
OX-SP082A  Home solar power generator system

Load appliancesSpecificationsPower ConsumptionAmountDaily working hourDaily power consumption
Lighting  LED  11W44176W
Radio
3W1618W
Satellite Antenna
25W16150W
TV  19LCD35W16210W
computerLCD200
3600W
electric iron
750W10.5375W
  FanDC15W24120W
washing machine
230W11230
  Total
1287W

1879W
System Components: Solar panels: 500Wp; Battery: 400AH/12V;
Pure Sine Wave Power Inverter: 1500W; Controller: 20A;     DC Fan 2pcs

Prod Model: OX--SP-082A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pure Sine Wave Power Inverter: 1500W
Output Frequency: 50Hz/60Hz
Solar Panels: 500wp
Battery: 400ah/12V
Controller: 20A
Output Voltage: AC220V / AC110V
System: Off-Grid system
Ouxiang International Limited is a Chinese professional Security and Electronic products manufacturer. Our main focus on SBalance Scooter, Sport Camera, GPS tracker, Police DVR, WiFi PIR light Camera, etc. Since its establishment in 1998, has been the most sincere service and responsibility to deal with each of our agents and end customers. As an "ISO 9001 standards, CE, RoHS, 3C-certified manufacturer, we understand that there are no shortcuts to produce good quality products. Only doing what they do every step of the testing process, and in order to make consumers be assured that every one products. Ouxiang mind of every member of this idea, continuous effort to continuously design, develop new products, the company has become stronger and more competitive.

Your satisfaction is our glory. This is the struggle of every member of the ouxiang international limited

Welcome to visit our company and our factory!
