Home Generator Products 220kw Diesel Generator with 4 Stroke Cummins Generator

220kw Diesel Generator with 4 Stroke Cummins Generator

220kw Diesel Generator with 4 Stroke Cummins Generator
Price: US $ 16405-22195/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 50/Piece
Pay Type: L/C,T/T
GENSETS MODELRated power
(kw/kvA)
Engine ModelEngine Power(kw)Alternator modelPacking Size
L×W×H(mm)
N.W.(kg)
EMC-2020/254B3.9-G124EM-184E1800x900x1250

650
EMC-2020/254B3.9-G224EM-184G680
EMC-3032/404BT3.9-G137EM-184J700
EMC-3032/404BT3.9-G237HP-224D740
EMC-4040/504BTA3.9-G250HP-224E1900x900x1330830
EMC-7575/946BT5.9-G192EM-274C2350×920×13501390
EMC-8080/1006BT5.9-G292EM-274C1460
EMC-100100/1256BTA5.9G2110EM-274D2380x920x13501530
EMC-108108/1356BTAA5.9-G2120EM-274E1700
EMC-150150/187.56CTA8.3-G2163EM-274H2450x980x15001970
EMC-160160/2006CTAA8.3-G2183EM-274H2050
EMC-200200/2506LTAA8.9-G2220EM-434C2600x980x15002300
EMC-220220/270NTA855G1240EM-434E3100x1200x17503900
EMC-250250/312.5NTA855G2283EM-434F3250x1200x18004300
EMC-280280/350NTA855-G4317EM-434G4300
EMC-300300/375NTAA855-G7343EM-534C3300x1200x19004400
EMC-330330/412.5NTAA855-G7A350EM-534C4400
EMC-400400/500KTA19G4448EM-534E4160x1350x20504800
EMC-500500/625KTAA19-G6A550LV634B5700
EMC-600600/750KTA38-G2664LV634B5000x1900x2640

EMC-800800/1000KTA38-G5880LV634F8500
EMC-10001000/1250KTA50-G31097LV634G5500x1900x268010200
Diesel generator
1. Powered by Cummins
2. Famous alternator
3. Soundproof
4. ISO, CE and Quality Guarantee

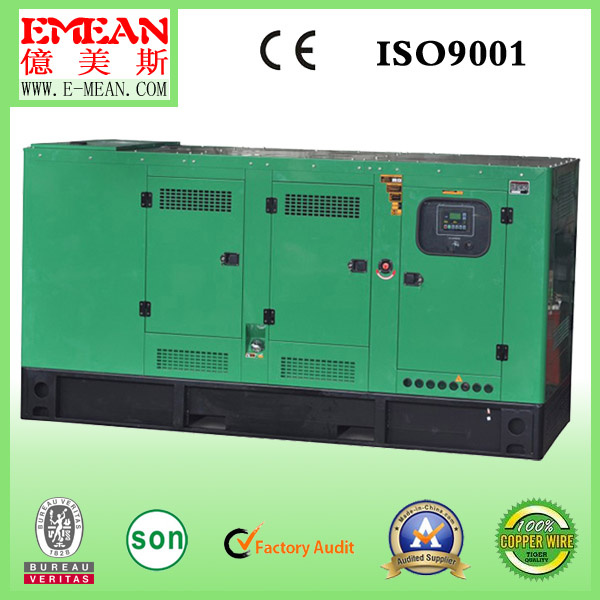

Cummins diesel generator soundproof type220KW/270KVA

THE BRAND OF ENGINE: Cummins ENGINE(FAMOUS IN The world)
Specification: .
Detailed product Description.
Generator Set/soundproof generator/silent generator/power genset/DC set
Detailed product description:
1) Rated output: 220KW/270KVA
2) Rated voltage: 400 / 230V, 380 / 220, 220 / 120
3) Rated frequency: 50 / 60Hz
4) Power factor: 0.8.

Engine: Cummins engine
1)Cooling method: Closed water cooling or air force cooled
2)Starting method: Electric start.
3)Rated speed: 1, 500 / 1, 800rpm
4) Noise level: 65dB to 75dB 7 meter away

Alternator:
1) Brand: Stamford or Leroysomer or Our Emean series
2) Rated output: 220KW/270KVA
3) Rated voltage: 400 / 230V according to your requested
4) Rated Frequency: 50 / 60Hz
5) Power factor: 0.8
6) Phase: 3-phase, 4-wire
7) Connection: Y or other type connection
8) Rated speed: 1, 500rpm / 1, 800rpm
9) Excitation: Harmonic excitation or phase compound or brushless
11) Voltage regulation: Automatic
12) 1.0% voltage regulation (max. ) in static conditions
13) Protection class: IP 22 or IP23
14)Connect with engine: Direct coupled with flywheel

Control panel:
1) The generator control panel is manufactured locally by
2) The panel is provided with:
A) Standard engine instrumentation
B) Voltmeter with selector switch
C) Ammeter with selector switch
D) Frequency meter
E) Current transformers
F) Instrument fuses duly wired and ferruled
G) MCB of suitable rating with overload and short circuit protection
H) With AMF control panel or with ATS (automatic transfer system)


Packing:
Wooden case or plywood case

Any question, pls contact with me directly.

Remark: Control panel(including Automatic protection): Low and high frequency, low oil pressure protection and high water temperature protection

We will try my best to supply the product according to your specific requirement.

Pls note it, you will get more than you pay.

Synchronization panel is available at our factory.

Warranty: Guarantee for one year or 1200hours from ex-factor date. During the repair time, EMEAN COMPANY will provide the free easy-damageable spare arts of diesel engine caused by our quality of production or raw material. After expiration, EMEAN COMPANY will supply cost spare part for you to repair it.
Manufacturing standard:
ISO9001, EPA, CE and...
For more detail information, pls feel free to contact with us.
Prod Model: EMC-220
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine Model: Nta855g1
Engine Power: 240kw
Alternator Type: Brushless
Alternator Power: 220kw
Dimension: 3100X1200X1750mm
N.W.: 3900kg
G.W.: 3915kg
Type: Basic Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Fuzhou Emean Electric Machinery Co., Ltd. is one of the biggest enterprises, lies in "China Electrical Machinery and Appliances City"--Fuan. EMEAN is a private enterprise established in 2003, which is a comprehensive electrical machinery manufacturing company integrating product designs, production, marketing and service.

Rely on scientific and technological development, we continue to provide users high-tech products, which is our consistent pursuit. On the basis of absorbing the foreign advanced technology, we have already fetched in 10 lines advanced international machinery production. The main products manufactured by our company consist of more than 10 series, over 100 types, involving generators, diesel generating sets, gasoline generating sets and concrete cutter, of which all of our products have been passed the national attestation CCC, CE certificate, Nigeria Soncap and EPA certificate.

EMEAN is a young enterprise, but she owns the fresh and great-hearted blood, which make her more charmful. "Quality assurance, user first" is the agreement of EMEAN executives. Communicate with the domestic industry, scientific research institutions exchange and cooperation so as to improving the quality, such as: Design and production, commissioning and maintenance. Then occupy the market, and expand the scale of the company. We have been moving forward to a more prosperous achievement under the fierce competition.

Today, EMEAN staff pursue the guidelines--"aggressive, realistic, strict and unity" to blaze new trails. We make technology as the core, quality as life and users to God, dedicated to provide you with the highest & cost-effective products and meticulous after-sales service in order to shape a bright future.
