As a big generator OEM factory with 19-year export experience. We can provide Diesel Standby Generator, Moving Tailer Generator, Silent Generator, Electric Generator, Natural Gas Generator under the famous brand of CUMMINS, DEUZT, CATERPILLAR, SHANGCHAI(SEDC), YUCHAI, with power ranging 0.65-3000kVA; AC alternator under the brand of STAMFORD, MARATHON, FARADAY and Siemens. We also offer spare parts for SFH, SEDC and HINO.
Control panel:
-Automatic control panel(AMF), LED display.
-Four protection systems
-Emergency stop
-DSE/COMAP/SMARTGEN/HARSON
Optional:
-Trailer type
-Soundproof / water proof
-ATS(automatic transfer switch)
-water Heater
-Parallel system
-Remote system
Soundproof/Silent box:
-Excellent ventilation
-Fuel tank mounted on baseframe for 12 Hours working
-Highly Corrosion Resistant construction
-Excellent Access for Maintenance
-Security and Safety
-1m<80DBA / 7m<70DBA

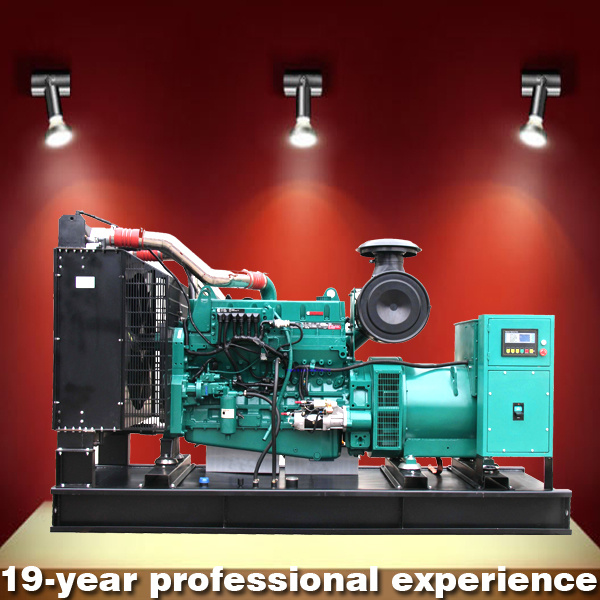

200kw/250kva Cummins diesel generator genset parameter : |
Genset Modle |
DC200 |
Dimension(mm) |
2995*1100*1652 |
Weight(kg) |
2975 |
Prime Power(kw/kva) |
200/250 |
Standby Power(kw/kva) |
220kw/275kva |
Rated current (A) |
360 |
Powerfactor(CosPhi) |
0.8 |
Altitude |
≤1000m |
Base Fuel Tank |
Eight hours(Standard) |
Engine Features: |
Engine model |
MTA11-G2A |
Type of Governor |
Electronic governor |
Type |
6 cyclinder in line |
Bore*Stroke(mm) |
140*152 |
Compression ratio" |
17.3:1 |
Voltageregulation |
±0.5% |
fuel consumption rate(g/kw.h) |
≤200g/kw.h |
Alternator Features: |
brand |
Stamford, Simens, Marathon, Farady at option |
Voltage control |
AVR |
Numberofphase |
3 |
Overspeed |
2250RPM |
Excitertype |
AREP |
Insulation class |
H |
protection class |
IP22/IP23 |
Totalharmonics (TGH/THC) |
< 3.5 % |
Waveform NEMA = TIF |
<50 |
Waveform I.E.C. = THF |
<2% |
Bearing |
single |
Coupling |
Direct |
