Home Generator Products 2200W PV Inverter for Solar Pump

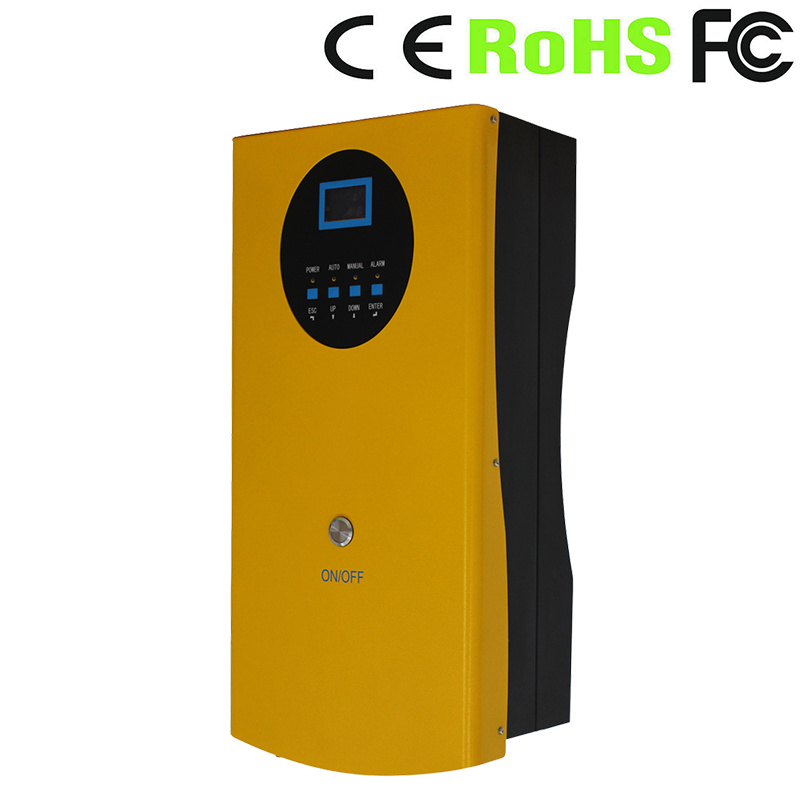

2200W PV Inverter for Solar Pump

2200W PV Inverter for Solar Pump
Price: Negotiable/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union

Quick details

1.Solar PV inverter for 3 phase pumps' motor
2.High efficiency>98%
3.With Soft start, VFD, MPPT

4. GPRS function (optional)
5. LCD display
6. Stainless steel, waterproof shell with IP65
7. Without battery and solar charge controller
8. Provide 2 years warranty




Solar pump system consists of PV array, solar PV inverter and pump. Store water instead of store electricity, no need battery, it can reduce system cost and maintenance cost. Solar pumping system becomes more and more popular, it can be applied to daily use (underground water), agriculture irrigation, forestry irrigation, desert control, pasture animal husbandry, water supply for islands, wastewater treatment engineering, and so on.


Features

1. Adopting the dynamic VI maximum power point tracking (MPPT) control method & optimized SPWM; fast response and stable operation.

2.
IPM (intelligent power module) electronic design and transformerless, conversion efficiency 98%, high reliability.

3.
AC drive function for small solar pump inverter. When is no sunshine,such as at night , solar pump inverter can connect to AC city power to work by manually  if  AC power is available. but (this function is optional).

4.
Solar pump inverter can be built-in GPRS receiving module(this function is also optional).You can operate this inverter remotely through your PC or mobile phone with our provided website, user name and password.


5. Adjustable speed range of pump based on the actual situation of the system.

6. Setting parameters and fault detection through
LCD display. (43*29mm) and keys, easy operation, good view through LCD when setting parameter, feel comfortable.
7.
Patented low voltage boost device for small pump to reduce solar panel to save money.

8. Working environment temperature: -10 to 60 ºC

9. Stainless steel and waterproof shell, waterproof fan good for cooling

10. System protection

a. Dry Well

b.Over Flow


C.Output Overload

d.Low Input Voltage

e.Over Input Voltage

f. Over Temperature

g.Lighting

h.Reverse Polarity

11. No starting Box Required

12. Water storage instead of battery power storage, no need battery.

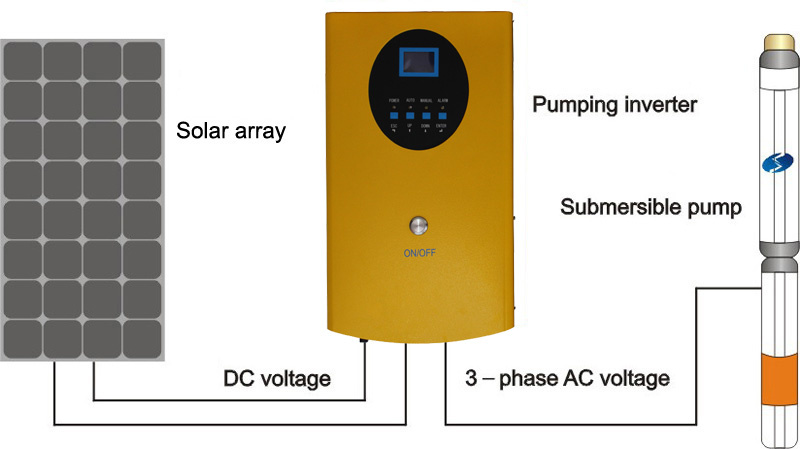

Solar pumping system structure





Solar pumping system application

·Remote Villages, Homes, Cabins and Hunting Lodges (home use)
·Irrigation for remote orchards, gardens, and greenhouses (irrigation water)
·Wildlife watering at wild game parks and farms (irrigation water)
·Fish pond water level maintenance and aeration (home use)
·Swimming pool circulation& filtration pumps (home use)
·Surface water pumping for landscaping streams and waterfalls (home use)
·Cattle, Livestock watering systems (animal husbandry )
·Water supply for sea island

·Water treatment projects, for example, sea water desalination.




Specification



Solar PV Inverter Adapting Pump Motor PV Peak Power(kWp)
Model Rated Power(kW) Max. Input DC Voltage(V) MPPT voltage(V)  Output 3 phase AC Voltage
(V)
Output Frequency
(Hz)
Rated Power(kW)  Rated Voltage(V)
SGY750L  0.75 430 280-350 3 PH 220 0-60 0.55-0.75 3 PH 220 1.1
SGY1500L  1.5 430 280-350 3 PH 220 0-60 1.1-1.5 3 PH 220 2.2
SGY2200L  2.2 430 280-350 3 PH 220 0-60 2.2 3 PH 220 3.3
SGY3700L  3.7 430 280-350 3 PH 220 0-60 3-3.7 3 PH 220 5
SGY750H 0.75 430 480-600 3PH 380 0-60 0.55-0.75 3PH 380 1.1
SGY1500H 1.5 430 480-600 3PH 380 0-60 1.1-1.5 3PH 380 2.2
SGY2200H 2.2 750 480-600 3PH 380 0-60 2.2 3PH 380 3.3
SGY3700H  3.7 750 480-600 3PH 380 0-60 3-3.7 3PH 380 5
SGY5500H  5.5 750 480-600 3PH 380 0-60 4.5-5 3PH 380 8
SGY7500H  7.5 750 480-600 3PH 380 0-60 7.5 3PH 380 10
SGY11KH  11 750 480-600 3PH 380 0-60 9.2-11 3PH 380 15
SGY15KH  15 750 480-600 3PH 380 0-60 13-15 3PH 380 21
SGY18KH  18 750 480-600 3PH 380 0-60 18.5 3PH 380 25
SGY22KH  22 750 480-600 3PH 380 0-60 22 3PH 380 30
SGY30KH  30 750 480-600 3PH 380 0-60 26-30 3PH 380 42
SGY37KH  37 750 480-600 3PH 380 0-60 37 3PH 380 50
SGY45KH  45 750 480-600 3PH 380 0-60 40-45 3PH 380 60
SGY55KH  55 750 480-600 3PH 380 0-60 55 3PH 380 75
SGY75KH  75 750 480-600 3PH 380 0-60 65 3PH 380 98
Prod Model: SGY2200H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display: LCD
Built-in: GPRS Module
Drive: 3 Phase AC220/380V Pump
Function: Soft Start and Variable Frequency
Voltage: MPPT Tracking
System: Off-Grid system
Shenzhen SETEC Power Co., Ltd was established in 2004, integrated in R&D, manufacture and sales solar pump inverter, pure sine wave inverter, battery analyzer, DC DC converter and AC DC rectifier power system. We provide high quality products, competitive price and good after-sale service. Due to our strong R&D, we always keep innovation. Our customers are operators of domestic telecommunications industry and power industry, broadcast industry, and related ancillary equipment manufacturers. Our company provides not only high-frequency switching power supply equipment for large telecom operators, but also power supplies for the relevant supporting manufacturers. SETEC devotes ourselves to the national industry development and introduces the advanced technology and management experience from world-renowned enterprises to build our own high-tech enterprise.

Our products meet different needs of power systems and communications systems. On one hand, our products can be applied to low-capacity occasions, like small module Bureaus, access networks, and transmission blackout light stations; On the other hand, our products can also meet the requirements of high power capacity, such as mobile base stations, microwave communications and central Bureaus.

Our goal is "customer first, good quality and best services". Our products have passed the ISO9000: 2000 quality system certification. With the rapid development of world science and technology, China's information industry and other industries driven by it are changing rapidly as a huge hidden opportunity and economic benefits. We are willing to work together for mutual benefits with the new and old customers, and contribute to the rapid development of China's information industry!

Our main products, such as switching power inverters, have been tested by the national Ministry of Information Quality Inspection Center and have received Certification of Shenzhen High-tech Industry! We are looking forward to establishing relationships with you in the near future.
