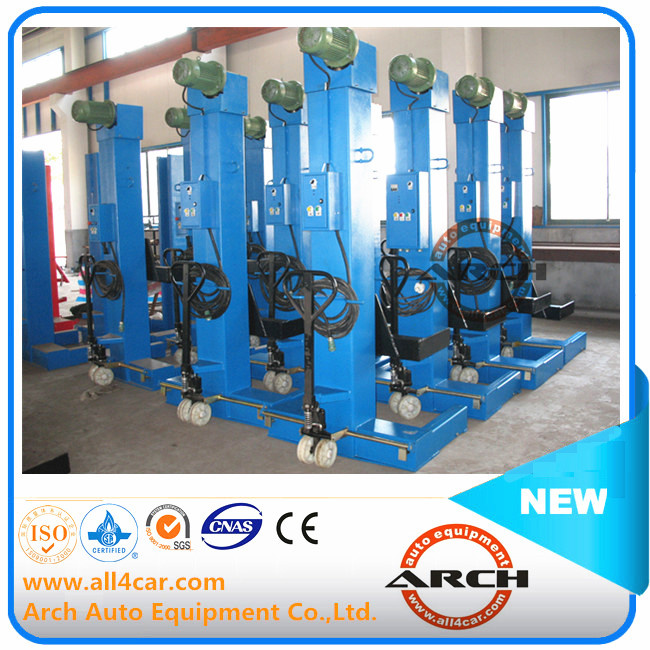

Product DescriptionThe combined movable vehicle lifter is a group of movable machines designed and manufactured specially for lifting vehicles such as large buses or cargo trucks.
The lifter is mainly composed of the following:
1.Mechanical Driving.
2.Movable, can be used in the inside and outside.
3.Working space saving.
4.24V safe operation voltage.
5.4 or 6 Columns selectable .
6. Fixed structure (with post housing with concave bases)
7.Lifting units (motor +speed reducer + screw bolt +mother nut +crane dolly);
8. Electric control system (control box +stroke switch +cable)
9. Safety protection device (secondary nut +safety switch +electric lock and control system);
10. Hauling system (hydraulic jack +nylon wheel +hauling handle).
![]()
![]()
Technical Parameter: | Specification |
| MODLE | AAE-MCL1554 |
| Capacity(ton) | 5.5 |
| Lifting Height(mm) | 1500 |
| Lifting Speed(mm/s) | 10 |
| Overall Height(mm) | 2600 |
| Overall Width(mm) | 1150 |
| Voltage(v) | 380 |
| Power(kw) | 3.0 |
| Net Weight(kg) | 750 |
| Drive | mechanical |
Company information:ARCH AUTO EQUIPMENT CO.,LTD.Arch Auto Equipment is one professional auto equipment manufacturer and supplier China. Since 1990, Arch is committed to designing, producing auto equipment. We supply wide range of equipment such as tire changer, truck tire changer, wheel balancer, truck wheel balancer, single post parking lifts, two post lifts, four post lifts, truck lifts, alignment lifts, scissor lifts, spray booth, waste oil burner, waste oil heater, oil drains, wheel weights, nitrogen generator and inflator, car turntable. Featuring durable quality, competitive price, timely and professional service, Arch Auto Equipment's equipments get more and more popular in the international markets, such as Germany, USA, Holland, UK, Russia, and Iran, awarded TUV/CE certificate. Furthermore, Arch Auto Equipment has strong R&D ability. During the past years, we have successfully created new design products with customers' cooperation. Arch Auto Equipment is willing to join hands with any partner for a bright future.![]()
FAQ
Why chose us:1. Famous brand name in china2. Super high quality, competitive price3. Customer-oriented service4. Big production ability5. Fast delivery, excellent after-sale service6. Certificate CE, ASME, SGS, BV,ISO9001,ISO14001,How can I get quote/price1. Just send email to us ,and it will be responded with 24 hrswhat about the lead time for mass product1. Leading time:20daysOur company website:http://www.all4car.com
Shanghai Arch Auto Equipment Co., Ltd. is one professional auto equipment manufacturer and supplier China. Since 1990, Arch is committed to designing, producing auto equipment. We supply wide range of equipment such as tire changer, truck tire changer, wheel balancer, truck wheel balancer, single post parking lifts, two post lifts, four post lifts, truck lifts, alignment lifts, scissor lifts, spray booth, waste oil burner, waste oil heater, oil drains, wheel weights, nitrogen generator and inflator, car turntable.
Featuring durable quality, competitive price, timely and professional service, Arch Auto Equipment' S equipments get more and more popular in the international markets, such as Germany, USA, Holland, UK, Russia, and Iran, awarded TUV/CE certificate.
Furthermore, Arch Auto Equipment has strong R&D ability. During the past years, we have successfully created new design products with customers' Cooperation.
Arch Auto Equipment is willing to join hands with any partner for a bright future.
