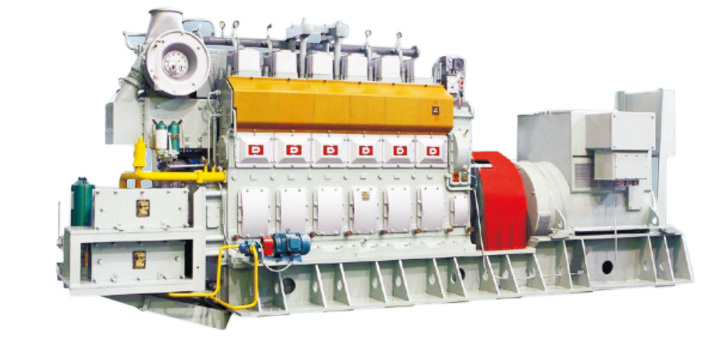

Main Specification
Generator Model | 600GF | 800GF | 1000GF | 1250GF | 1350GF |
| Rated Electrical Power (kW) | 600 | 800 | 1000 | 1250 | 1350 |
| Engine Model | N6210ZD4 | N6210ZD18 | N8210ZD | N8210ZD4 | N8210ZD24 |
| Bore x Stroke (mm) | 210x300 |
| Engine Type | 4-Stroke, Inline, Direct Injection,Tubocharged, Intercooled |
| Engine Capacity (kW) | 662 | 882 | 1103 | 1471 | 1471 |
| Engine Rev. (rpm) | 50Hz@750 | 50Hz@1000 | 50Hz@1000 | 50Hz@1000 | 50Hz@1000 |
| 60Hz@720 | 60Hz@900 | 60Hz@900 | 60Hz@900 | 60Hz@900 |
| Fuel Consumption (L/h) | 154.3 | 207.6 | 261.9 | 327.4 | 353.6 |
Note: All engine rating data based on ISO 3046/1;
Reference conditions: Ambient temperature 25ºC, Total Barometric Pressure 100kPa, Relative humidity 30%, Intercooler coolant inlet temperature 25 ºC;
Fuel characteristics: Related density: 0.84±0.005, Lower heat value:42700kj/kg, Consumption tolerance: +5%;
Power: An overload of 10% is permitted for one hour in every twelve hours of operation.
Characteristics |
Meet with: ISO8528, IEC60034, ISO3046;
Marine medium speed engine driven, modular construction, HFO burning;
Brushless self excited alternator with AVR;
Application: Marine AUX,Land (EPS) power,Containerized power.
Low noise, long TBO, low operating cost.
|
Electrical Performance
Voltage |
Voltage no load adjustment range |
% |
95~105 |
Voltage fluctuation rate |
% |
±1 |
Stable voltage regulating rate |
% |
±2.5 |
Transient voltage regulating rate |
% |
±20~-15 |
Stabilizing time |
s |
1 |
Alternator Excitation method |
|
Brushless AVR |
Frequency |
Stable frequency (rev.) regulating rate |
% |
5 |
Frequency (rev.) fluctuation rate |
% |
±0.5 |
Transient frequency regulating rate |
% |
±10 |
Stabilizing time |
s |
< 5 |
Frequency regulating method |
|
Auto / Manual |
Protection |
Over speed |
115% Nr A, T, S |
Reverse P. |
-9.6% Pn A, T |
LO. P |
0.25MPa A, 0.15MPa T,S |
Over current |
130% In A, T |
FW T. |
90ºC A, 95ºC T,S |
Over voltage |
120% V A, T |
LO. T |
90ºC A |
Over load |
110% In A |
