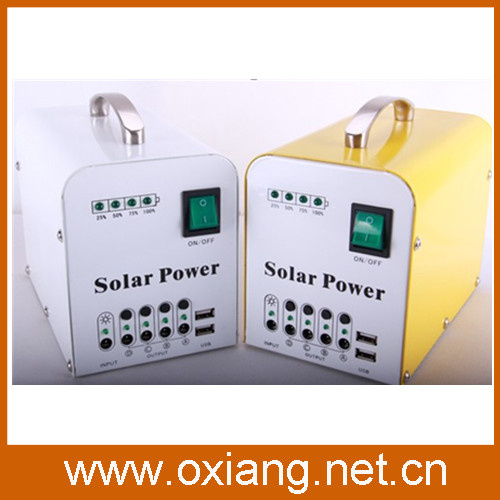

Small DC solar generator OX-SP55B
Solar Panel:
Type: TYP-20W
Rated Maximum Power: 20W
Maximum Power Voltage (Vmp): 18V
Maximum Power Current (Imp): 1.11A
Open Circuit Voltage(Voc): 21.24V
Short Circuit Current(Isc): 1.22A
Power Toerance: ± 3%
Maximum System Voltage: 1000V
Operating Temperature: -40degree~+85degree
Standard Test Conditions: AM1.5 100mW/cm2 25'C
Size: 535*350*35 MM
Weight: 2.1KG
Quantity: 1PCS
Controller:
System voltage: 12V
Float voltage: 13.8V;
System current: 3A
Charge resume voltage: 13.2V;
No-load loss: ≤ 6mA
Discharge protection voltage: 10.8
Over voltage protection: 16.5V
Discharge protection voltage: 12.6
Over voltage recovery: 15V
Work temperature: -20 degree~55degree
Controller protectionovercharge, over-discharge, over-current, short-circuit, reversed
Battery:
Nominal capacity: 12AH
Dimensions: 151*98*94mm
Weight Approx: 3.43kg
Quantity: 1pcs
Accessories:
LED 12V3W 2PCS; Light line5M*2PCS;
Changing time: 8Hours
Lighting time: 24 Hours
User manual: 1pcs
Power Box Size: 185*114*140mm
Weight: 7kg
Port |
shenzhen or HK |
Express |
DHL or UPS |
Ship |
By Sea or By Air |
Delivery |
One week for 1000pcs |
Payment |
L/C
T/T
PAYPAL
ALIBABA VIRTUAL CREDIT CARD
WESTER UNION
|
