This 20W Portable Solar Generator/Home System includes Solar cell modules, special solar battery, solar controller, solar power generator systems etc. Pollution-free, energy-saving, protecting environment, free maintenance and less restriction, with low Failure Rate, easily assembling and carring, convenient using, Its llifespan can reach above 20 years, a variety of charging ways complementary, solar \AC and DC all can charge for the system, one time investment, long-term benefits. 20W Portable Solar Generator/Home System can be applied to the villa, housing, outdoors\tourist resorts, prairie areas, remote mountain village, mountain island, household, farms, villages, farm, hills, island, highway and any regions to generate electricity.

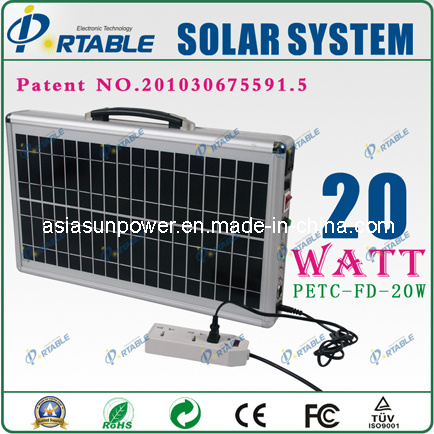

20W Portable Solar System
PETC-FD-20W
1. Feature:
The system is a small AC and DC Power Supply System which is designed for the farmers, herdsmen, outdoor camping, tourism, etc. Easy to operate, convenient to carry. Solar Panel, Controller, Inverter and Battery are storage in control box. The system is essential for the field work, outdoor work, mobile office, blackout emergency, etc.
2. Application
Charging mobile phone, 12V light and AC loads under 150W.
3. Specification:
1) Solar Panel: 2PCS 18V/10W Monocrystalline Silicon Solar Panel
2) Battery: 2PCS 12V/12AH Maintenance-free Sealed Lead-acid Battery
3) Solar Charge Controller: 10A/12V, 24V auto
4) Inverter: Input DC12V; Output AC100-120V or AC220-240V/150W
5) Output: DC12V, AC100-120V or AC220-240V. The product has two optional voltages for different electrical equipments.
6) Maximum Load: 150W
7) AC Charger: 1PC AC86V~260V, 18V/10A
Characteristics: The 20W Portable Solar Generator/Home System has high conversion of silicon solar panel, high euphotic rate and mechanical strength, good resistance to climate, preventing wind, hail. Which can effectively resist corrosion of moisture and salt fog, and can produce high efficient power and energy.
|
main parts |
specification |
parameters |
quantity |
|
solar panel |
mono/polycrystalline |
10W |
2pcs |
|
solar battery |
Sealed lead-acid |
12V/12AH |
2pcs |
|
solar control system |
Controller |
10A |
1pc |
|
inverter |
150W |
1pc |
|
control box |
|
1pc |
|
output |
AC 100~220V |
|
1pc |
|
DC 12V |
12V/10A |
1pc |
|
PRODUCT SIZE(CM) |
L39*W29.5*H18.5 CM |
|
AC Charge |
AC86V~260V |
15V/3A |
1pcs |
|
PACKING (CM) |
1PC/CARTOM: L44*W35*H24CM |
|
Wooden case:44*35*27CM 8KG |
|
PACKING |
1PC/CARTOM |
|
pull rod and wheels(options) |
|
N.W/G.W(KG/PC) |
13KG/14KG |
|
The system can support: |
|
Design load appliances |
Model |
Load Power |
Quantit |
Daily Working Hours |
Daily Power Consumption |
Continued Working Days |
|
Lighitng |
Fluorescent lamp |
40W |
2 |
2 |
160WH |
1.5Days |
|
Color TV |
21 Inch |
60W |
1 |
2 |
120WH |
1.7Days |
|
Laptop |
SAMSUNG R528 |
60W |
1 |
2 |
120WH |
1.7Days |
|
Printer |
Inkjet |
30W |
1 |
0.5 |
15WH |
13Days |
|
Fax |
Inkjet |
150W |
1 |
0.5 |
75WH |
2.7Days |
|
Satellite TV Receiver |
|
25W |
1 |
2 |
50WH |
4Days |
|
Fan |
Haier |
50W |
1 |
2 |
100WH |
2Days |
|
Radio |
SONY ICF-B100 |
3W |
1 |
6 |
18WH |
13.6Days |
|
Mobilephone |
iPhone 3GS |
2.5W |
2 |
8 |
40WH |
6.8Days |
|
Intercom |
MOTO |
7.5W |
1 |
6 |
45WH |
4.5Days |
|
Stallite Phone |
MOTO |
12W |
1 |
2 |
24WH |
10.2Days |
|
GPS |
|
4W |
1 |
4 |
16WH |
15Days |
