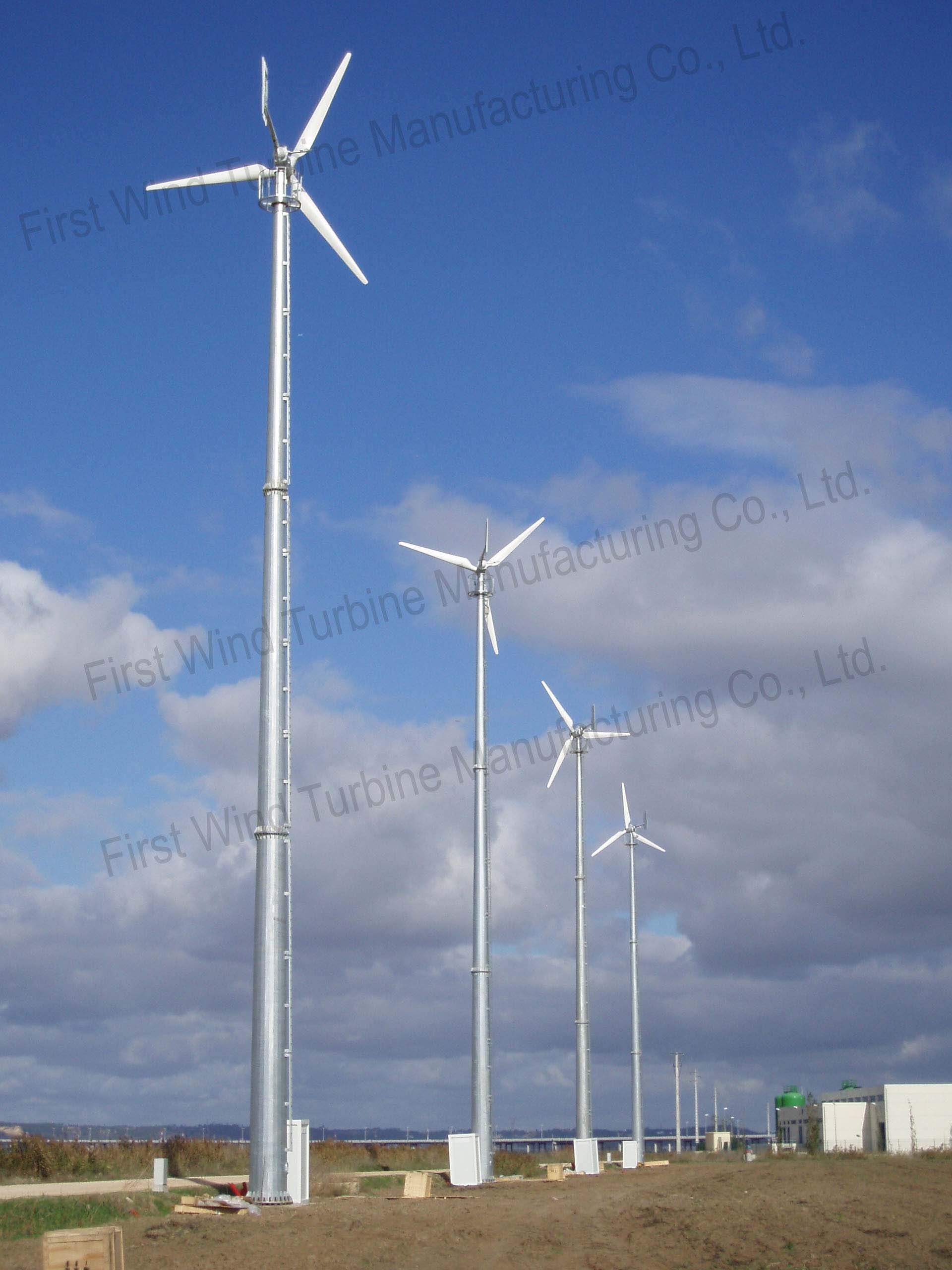

20kw wind power system wind turbine wind generator wind turbine generator wind power generator wind energy set wind generator blades
Features:
(1). Blade design according to the structure and technology of airplane propeller, low noise and high strength
(2). Generator adopt NdFeB strong permanent magnetic materials
(3). Adopt the slip ring for power output, to prevent the cables twisted
(4). Special slip ring can allow big current
(5). Newest high technology PWM controller
(6). Special anti-corrosion treatment
|
Model |
WH-20000 |
|
Rated power(W) |
20000 |
|
Rotor Diameter (M) |
10 |
|
Rated wind speed (M/S) |
11 |
|
Startup wind speed (M/S) |
3 |
|
Working wind speed (M/S) |
3 - 25 |
|
Standard Working Voltage(V) |
DC 360V |
|
Custom-made Working Voltage(V) |
360V/More Than 360V or On-grid System |
|
Blade Material |
Reinforced Fiber Glass |
|
Number of Blades(PCS) |
3 |
|
Generator Style |
Three Phase Permanent Magnet |
|
Magnet Style |
NdFeB |
|
Over-speed Protection |
Offset Axis And Tail Furling |
|
Stop method |
Manual electronic brake/
Automatic electric brake/ Manual mechanical Brake |
|
Tower height (M) |
18M(Standard) Or Custom-made |
First Wind Turbine Manufacturing Co., Ltd is a professional high-tech wind turbine manufacturer in researching, developing and producing the most reliable wind turbines. Our company objective is dedicated to providing superior clean energy products and creating green living environment.
We are with advanced design concept, innovative technology team, advanced and complete production testing equipment, strict production process and quality management system. We offer both off grid wind turbines and grid connected wind turbines, adopted with NdFeB high magnetics and special magnet circuit design to ensure low startup wind speed and high efficient power generation. They are widely installed for remote houses, boats, troops guard sentries, communication stations, farms, rural ecological vegetable sheds, islands, ranches, hybrid wind-solar street lights, park lights, oilfields, navigation signals, and on grid power generation system.
With enterprise spirit of "Integrity-based, Detail is the Key of Success" and "Quality First, Customer Priority", we will devote to develop green energy and provide clean energy to every corner all over the world.
