20kw to 800kw CE Approved Biomass Generator
| Price: |
US $ 50000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |

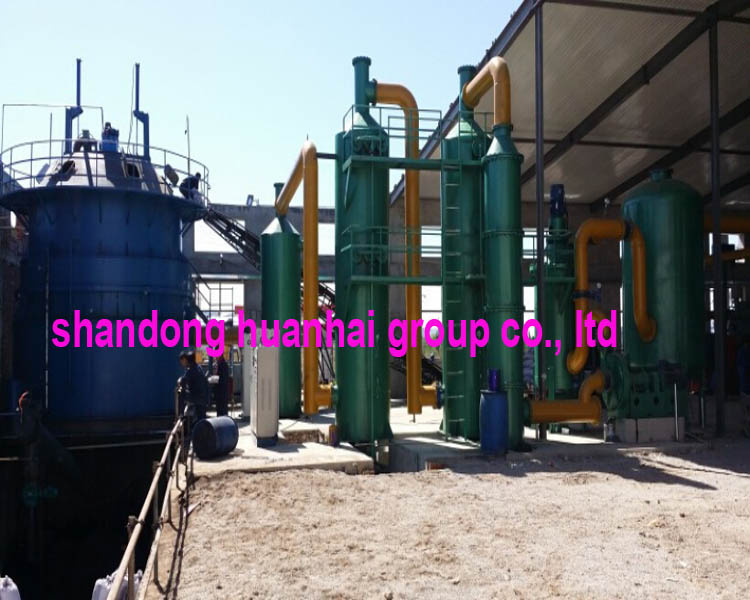

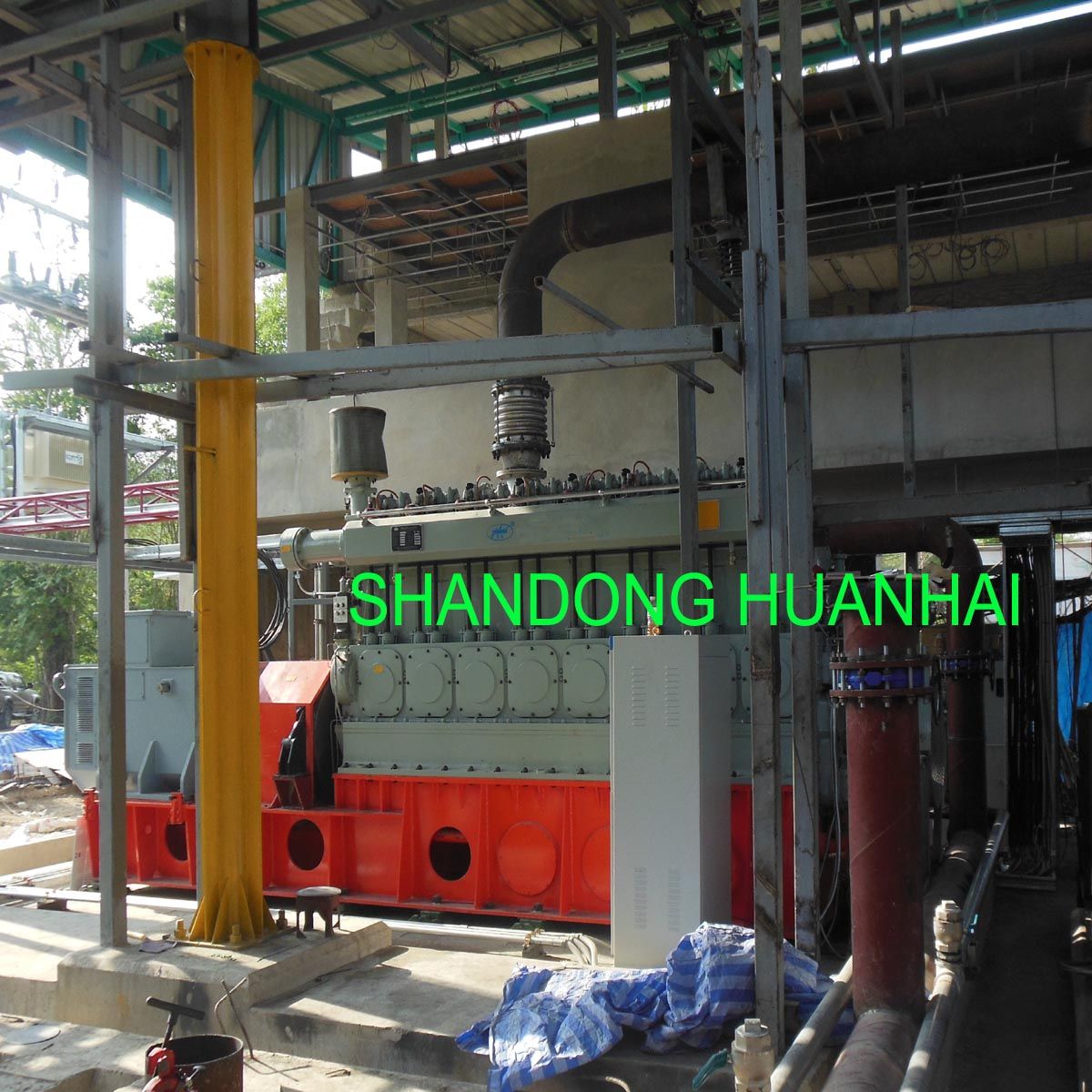

KX series biomass gasification furnace equipment working theory: It adopt downdraft fluid bed technique, to change all kinds of biomass material into inflammable gas, this gas after de-dusting,cooling,removing tar etc process to get high quality biomass gas, this gas is supplied to the special gas generator, so that we can get high quality electricity.
Our third generation gasification plant has advantage of compact structure, high burning efficiency, environment friendly, easy to operate and maintain etc characters, can turn waste material into new energy, gas output can be from 10M3/hour up to 2600M3/hour, and matched generator can be from 10Kw up to 880Kw.
This technique can ensure to realize continuous gas production, also it can efficiently increase the gas calorific value and reduce the tar content.
1, Occurring theory of Biomass gas :
Biomass material is put into biomass furnace from the top part of furnace, after it is dried and heated the temperature will increase, and its volatile material will have thermal decomposition, the gas after thermal decomposition with carbon with burn together in area of oxidation with air, to produce CO and water vapor.
The heat produced from burning will be used for maintain drying,thermal decomposition and thermo-negative reaction at lower part reduction part. The gas produced by burning come through high temperature carbon layer and with react with carbon layer:
(C+CO2=2CO,C+HO2=H2+CO),to produce inflammable gas with content of CO,H2,CH4,CmHn etc. At same time, the tar from volatile at oxide layer and High temperature reducing layer will get certain Oxidation and cleavage, it increased burning calorific value and also reduced tar content.
| MODEL | Gas output | Generator power | Material consumption |
| KX-50B | 50M3/hour | 20Kw | 25 - 30kg/Hour |
| KX-100B | 100M3/hour | 30Kw | 50 - 60Kg/Hour |
| KX-150B | 150M3/hour | 50Kw | 70 - 90Kg/Hour |
| KX-200B | 200M3/hour | 70Kw | 100 - 120Kg/Hour |
| KX-300B | 300M3/hour | 100Kw | 150 - 160Kg/Hour |
| KX-400B | 400M3/hour | 120Kw | 200 - 220Kg/Hour |
| KX-600B | 600M3/hour | 200Kw | 300 - 320Kg/Hour |
| KX-800B | 800M3/hour | 260Kw | 400 - 420Kg/Hour |
| KX-1000B | 1000M3/hour | 350Kw | 500 - 520Kg/Hour |
| KX-1200B | 1200M3/hour | 400Kw | 600 - 620Kg/Hour |
| KX-1500B | 1500M3/hour | 500Kw | 750 - 800Kg/Hour |
| KX-2000B | 2000M3/hour | 700Kw | 1000 - 1200Kg/Hour |
| KX-2400B | 2400M3/hour | 800Kw | 1200 - 1400Kg/Hour |
| KX-2600B | 2600M3/hour | 880Kw | 1400 - 1500Kg/Hour |
| KX-3000B | 3000M3/hour | 1MW | 1600 - 1800Kg/Hour |
| Prod Model: |
KX-800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Shandong huanhai machinery group Co., Ltd is one of largest machineries manufacture in China. It consisted of 3 factories, with more than 800 workers and engineers.
We speclized in manufacturing and exporting of all kinds agricultural machineries, construction machineries and plastics machineries. Our factories have more than 20 years manufacturing experience and can supply all kinds of high quality machinery and equipment. Many of our products have passed CE approval and are exported to European and American market.
We pay much attention to innovation of products, also we adopt all usuful suggestions from customers to improve our products, we can desigh and arrange production according to your reasonable suggestions.
Our main products is as below:
(1 ) agricultrual machineries:
15tpd /20tpd/30tpd/50tpd/70tpd/100tpd/150tpd rice milling plant
TF40 TF50 TF70 series maize mill
Sh41 sh81 sh101 sh121 sh151 sh181 gn12 gn15 power tiller
15HP 20HP 25HP 30HP 35HP 45HP 55HP 72HP 82HP 100HP 120HP four wheel tractors
Yl95A yl100 yl125 yl130 yl150 yl160 oil press
2t to 100t oil pre--pressing plant, solvent extraction plant, refinery plant.
1000ton per year charcoal briequette plant
(2) plastics machineries:
PE/PVC double wall corrugated pipe extrusion line 75-500mm
PP/pet strap band extrusion line 8-20mm
XPS board extrusion machine
WPC profiles extrusion line
PP-r cold and hot water pipe extrusion line
...
With our continued efforts now our all kinds of machineries and equipments have been exported to Turkey, Mexico, Russia, Ukraine, Iran, u. A. E, Saudi arab, Australia, India, Peru, Chile, sri-lanka, South Africa, Benin, Madagascar, Tanzania, Syria, Egypt etc more than 40 countries.
