Home Generator Products 20KW Three Phase Synchronous Sound-Proof Gasoline Portable Generator Set (DW20000)

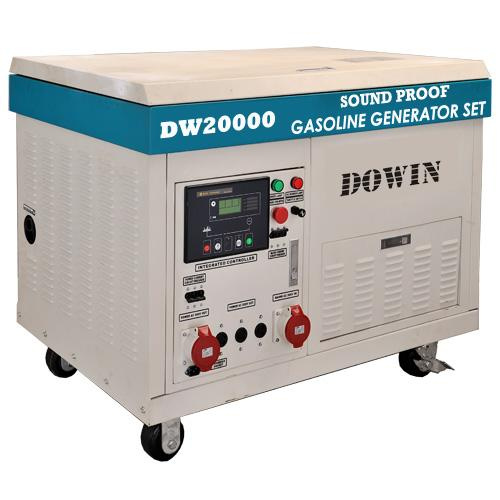

20KW Three Phase Synchronous Sound-Proof Gasoline Portable Generator Set (DW20000)

20KW Three Phase Synchronous Sound-Proof Gasoline Portable Generator Set (DW20000)
Price: Negotiable
Min Order: 1
20KW THREE PHASE SYNCHRONOUS SOUND-PROOF GASOLINE PORTABLE GENERATOR SET DW20000

GENERATOR
Model: DW20000
Generator Type: Three-phase synchronous generator
Rated Frequency (Hz): 50
Rated Power (KW): 18
Max Power (KW): 20
Rated Voltage (V): 230/400
Rated Amperage (A): 28
Phase: Single / Three Phase
Voltage Regulate: A. V. R. (Automatic Voltage Regulator)
Power Factor: 1.0(Single phase) /0.8 (Three phase)
Insulation Grade: F Grade
Fuel Tank Capacity (L): 32

ENGINE
Engine Model: NH466WM
Bore X Stroke (MM): 66X78
Displacement (ML): 1067
Compression Ratio: 8.92: 1
Bore X Stroke (MM): 66X78
Engine Type: Four Cylinder, 4 Stroke, water Cooling, Single Over Head Camshaft
Rated Power (KW/RPM): 38/5150-5250
Max. Torque (N. M/RPM): 80/3300-3700
Fuel Consumption(G/KW. H): 306
Idle Speed (RPM): 850-950
Ignition System: Inductive Transducer
Lubricating System: Pressure, Splash
Starting System: Electric Start
Oil Capacity (L): 3.5
Water Tank Capacity (L): 4
Fuel Number: Above No. 90
Oil Number: SF15W/40 (Summer), SF10W/30 (Winter)

PACKAGE
N. W/G. W (KG): 320/350
Dimension (LXWXH)MM: 1250x880x1035
20GP / 40HQ (UNITS): 20 / 36

WILDLY APPLICATION FOR
Tool power on the jobsite or complete home backup power. Keep the lights on, the water hot, the fridge cold and the TV tuned in. Great for residential applications and for homeowners seeking a reliable backup electric power generator.

SPECIAL NOTE
DOWIN SOURCING GROUP reserves the rights to improve the parameters and change the appearances without prior notice.
