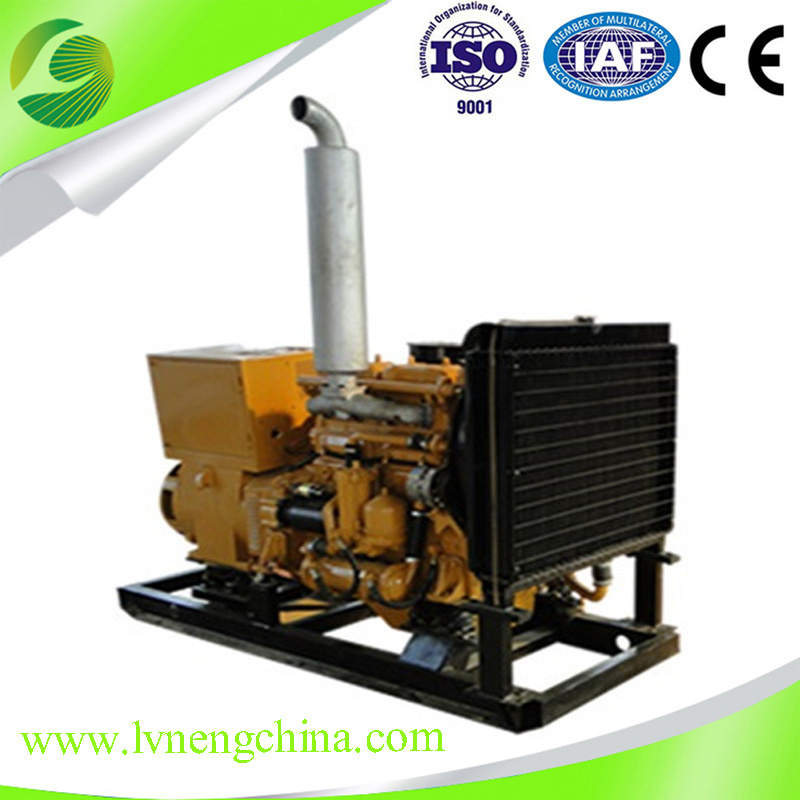

10-1000kw Natural Gas Generator Set, Portable Generator, Generating Set
1.Product introduction
Natural Gas---its main component is CH4,which takes 90% of the whole content.Thermal efficiency of conversion is 65%, which is same to the LPG and higher than Coal; Calculated on the same calorific value, the price of natural gas is lower than the price of coal and petroleum. Natural gas is used by civil use, generation, industrial chemicals and industrial fuel etc. it's a good substitute of coal and petroleum. It can take instead of civil coal gas; it can be used as nitrogenous fertilizer instead of coal and petroleum; it can be used as ethylene instead of naphtha; it can be used as the car engine fuel instead of petroleum.
Natural Gas Generator, fueled mainly by natural gas and LPG, is widely used in regions or areas with abundant oil field and natural gas. Global electrical power demand will be 80% higher by 2040, with gas becoming a key energy source for EP generation. The unit starts quickly, be operated easily, with complete set of safety system, and can be as power device and electricity device for oil field and local companies.
2.Core spare parts:
Ignition system: American ALTRONIC.
Controller: Comap, Deepsea, Smartgen
Automatic control system: Automatic control plate and ATS fully automatic switch between generator and national grid.
Woodward technology: Adopted Woodward lean burning technology, Woodward or ComAp speed adjusting system
Starting system: DC24V electric motor.
Mixer: IMPCO
Sparking plug: STITT
3.Genset worksite requirements:
a. Ambient temperature between -40ºC~40ºC;
b. Relative humidity less than 95%(35ºC);
c. Site elevation not higher than 2500m;
d. For outdoor installation, simple rain shelter is required.
4.Gas requirements:
1m from genset's pressure regulating valve
a. Temperature of biomass≤40ºC;
b. Pressure of biomass: 5~20kPa, velocity of pressure≤ 1kPa/min;
c. H2S≤200mg/Nm3;
d. NH3≤20mg/Nm3;
e. Coke tar content≤20mg/Nm3;
f. Impurities particle size≤5μm; impurity content≤30mg/Nm3;
g. Moisture Content of biomass ≤40g/Nm3;
h. Biomass calorific value≥4.2MJ/Nm3.
Purification of biomass gas has a significant impact on machine life and continuous running time!
5.Company Introduction
Since 2008
Factory area over 40000m2
Starff over 260 employees
Technicians over 100 people
website www.lvnengdongli.com
6.Scope of Application
Gas electricity generation, using pure and high-LNV natural gas to provide stable, continous and large amounts of electricity.
7.Advantage
--Advanced configuration keep accurate ans stable working condition under high speed working speed
--High generalization, easy maintenance, low maintenance cost.
--Economical, low operating cost
--Reduced the carbon deposition on the wear of the engine cylinder and the valve to prolong the using life of the genset.
--Adopt one of the world's most advanced gas control technology, fully available to the characteristics of fuel gas.
--Powerful low pressure gas SPI (single point Injection) system used for various supercharger premixed engine.
--Suitable for differnt concentration methane and propane, variety of quality gas.
--Precise air-fuel ratio rarefied combustion control and Generator speed/load control
--Realize lean burn, reduce the intake pipe tempering and improved efficient to reduce the heat load.
Requirements For Natural Gas Genset Working Condition
8.Within 1m from pressure regulating valve of gas intake
--The ratio of CH4 in natural gas ≥70%
--Pressure of natural gas: 80-200kpa, rate of pressure change ≤ 1kpa/min
--H2S ≤ 20mg/Nm3
--Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3
--Moisture content ≤ 40g/Nm3
9.High Configuration
--Ignition system: ALTRONIC(USA)
--Starting system: DC24V electric motor.
--Mixer: IMPCO(USA)
--Sparking plug:STITT
--Engine Control System: Woodward(USA), HEINZMANN(Germany)
--Electric Control System: ComAp(Czech), Deepsea(UK)
--Alternator: Siemens, LEROY-SOMER, Marathon
| Parameter of Natural Gas Generator Set |
| Model Number (Engine Type) | LNNG100 |
| Brand Name | LVNENG |
| Prime Power/Standby Power | 80KW/100KW |
| Rated Speed | 1000/1200RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤11mj/kw.h |
| Lubricant Consumption | ≤1.0g/kw.h |
| Engine Capacity | 12.9L |
| Cylinder Number | 6-V |
| Cylinder Bore | 135mm |
| Stroke | 150mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Siemens |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours which arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 2850x1100x1750mm |
| Weight | 1900kg |
10.Certificate
We have CE, ISO14001, ISO9001 and CEC certificate to keep the good quality. Please contact us for more details.
11.Service
(1) 24 hours- technology support service and the promptly reply
(2) Professional engineer team and strong technology support
(3) Customized design based on real situation
(4) Detailed and professional layout drawing, installation drawing and other drawing required by the customers supplied
(5) Engineer service on site
(6) Free training in Factory
(7) Equipment test before delivery
(8) One year guarantee period and lifetime service
(9) Spare parts lifetime supplied
12.Accessories
1) Application scope of the Accessories, such as 12v190, 8v190, 6190, 6135 and other engine types.
2.)All parts were from original factories or professional factories, complete in specification, keep good quality.
Sincerely welcome to visit our factory and build future cooperation relationship.
13.FAQ
1) What are the continous power and the standby power?
It depends on the hours the generator set works per day.
And 0.8*standby power = continuous power.
2) How long is the warranty?
One year
3) Do you provide installation? commissioning? and training?
Yes
4) Your engineer can go abroad?
Yes
5) Can you supply the spare parts?
Yes
6) Can you provide the turnkey project?
Yes
14.Why you chioce Shandong Lvneng Power equipment Co.,Ltd.Diesl generator?
1.We are professional manufacturer for gas/diesel generator set, over 15 years produced experience;
2.Products range of gas engines/genset, including diesel engines, biomass generator sets, natural gas generator sets, biogas generator sets, coal mine gas generator set, etc.Products arrange from 5kw-3000kw ;
3.Our workshop covering more than 40000 square meters, techincal engineer and after-service more than 100 people.Also products achieved CE,ISO9001:2008,ISO2001:1400 etc.Certificats.And passed many patents.
4.Our products are well received by our customers in Spain, Italy, Canada, Venezuela, Austraila, Thailand, Malaysia,Philippine,Indonesia,and with some Africa countries etc.
5.We have many cooperation companies :Like dehydration equipment,desulfurization equipment,gasified equipment,recovery system exhaust heat,CCHP system etc.So can offer you complete project proposal if you like.
15.Contact us
| Company | Shandong Lvneng Power Equipment Co.,Ltd |
| Contact | Bruce Li |
| Phone | 86-15205318761 |
| QQ | 458527987 |
