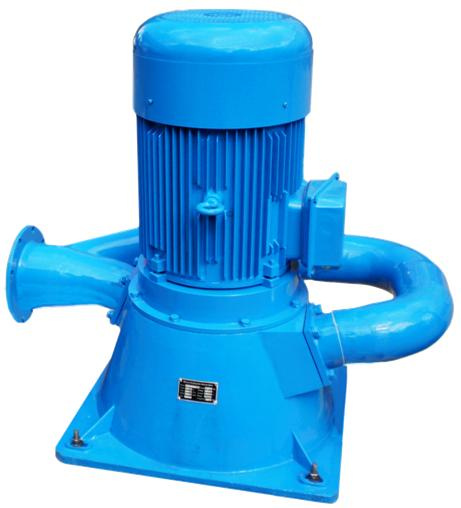

20kw Micro Hydroelectric Generator (T30-20SCTF4/6-Z)

20kw Micro Hydroelectric Generator (T30-20SCTF4/6-Z)
Price: US $ 11374/Piece
Trade Terms: CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union
20KW Turgo Turbine Generator

T30-20SCTF4/6-Z is a AC direct systems consist of a turbine-generator unit producing AC power which is used as needed. That is, it is fed directly to the appliances. No need of battery and inverter, T30-20SCTF4/6-Z offers a complete water to wire system with integral turgo turbine, generator and valve flow control. Designed to deliver ready-to-use 380V AC /3 phase power, it employs a brushless, special rare-earth permanent magnet alternator and therefore has a higher efficiency than ordinary alternator. Output voltage and frequency are controlled by the electronic load controller(with ballast). As little as 60 to 80 liter per second (l/s) falling 45 meter through a pipe, it can supply enough power to comfortably run a household. This machine is compact, easy to install and requires little maintenance except lubricating the bearing every few months.

The turgo turbine was designed for families in remote areas to produce power for their households easily and inexpensively. These units have been incredibly successful and today thousands are installed throughout the world.
Water is collected upstream from the turbine and channeled in a pipe down to the turbine location. At the turbine, the water passes through a nozzle, where it accelerates, strike the turbine runner, and turn a AC three-phase brushless permanent magnet alternator. A electric load controller is built on the alternator which stabilizes the voltage to 380V to protect electrical appliances during use. Installation is very simple and explained in the manual. Once installed there are no running costs and maintenance costs are very low.
Item Parameters
Model T30-20SCTF4/6-Z
Water Head Range 35 – 45 meter
Water Flow Range 60 – 80 liter/second
Rated Power Output 20KW
Intended voltage Three phase, AC380V~
Rotary Speed 1500 rpm
Turbine runner type Turgo
Runner diameter 350 mm
Number of buckets 14
Number of nozzles 1
Jet diameter 250-300 mm
Generator Single phase permanent magnet alternator
Power factor 1.0
Insulation level B/B
Protection level IP44
Temperature -25~+50
Humidity ≤ 90%
Safety protection Short circuit, over load, Islanding, Grounding fault
Packing material Fiberboard
Packing size 120x90x95cm, 80x60x62cm, 60x55x50cm,
Gross weight 490 kg, 60kg, 60kg
Prod Model: T30-20SCTF4/6-Z
Markets: North America,South America,Eastern Europe,Oceania,Western Europe
Suzhou Yueniao Machinery & Electronics Imp & Exp Co., Ltd. is one of the pioneer renewable energy business and has been in this field since 2002. We are dedicated exclusively to the business of small wind generator, mini hydroelectric generator and solar energy.

As a manufacturer with advanced technology, we are making in our own workshop the wind turbine from 300W to 20kw with CE certificates. Beside that we are dealing with business of mini hydroelectric generator from 200W up to 60KW and solar panel from 20W to 280W.
We do not claim any of its products to be the best, but we are proud to hear the owners of our products praise them. And that is what makes all the time and effort we spend on our products worthwhile.
Thank you for your support!
