We offer various kinds of
permanent magnetic generator from 0.1KW-1500KW(vertical and horizontal), please contact us for more detail informations.

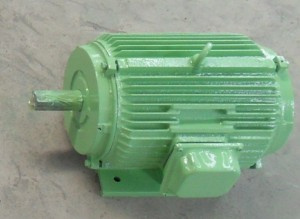

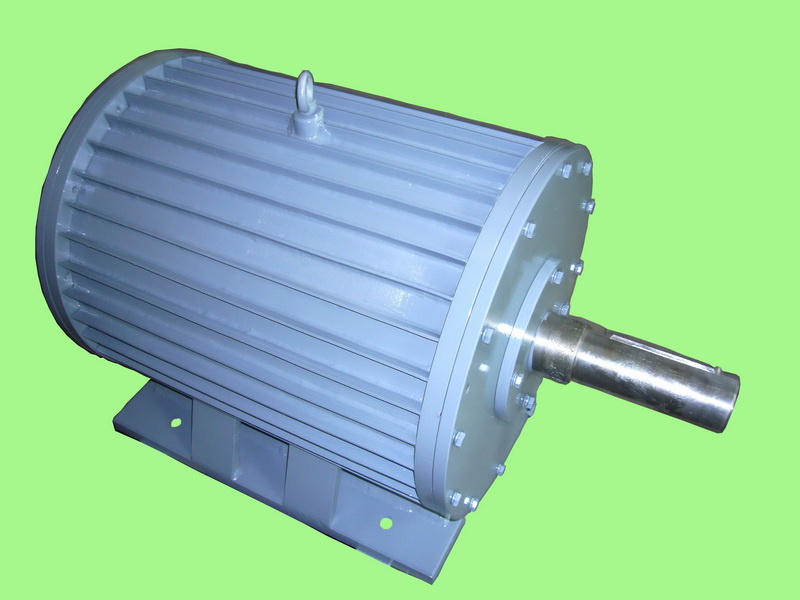

Features of
permanent magnet generator*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetime
| Model | Rated power W | Rated voltage V | Rated current A | Rated rotated speed rpm | Startup torque N*M | Efficiency |
| FF-300W/400r/DC28V | 300 | DC28 | 10.7 | 400 | <0.35 | >75% |
| FF-500W/360r/DC56V | 500 | DC56 | 8.93 | 360 | <0.55 | >78% |
| FF-600W/360R/DC56V | 600 | DC56 | 10.7 | 360 | <0.65 | >78% |
| FF-1KW/360r/DC56V | 1K | DC56 | 17.9 | 360 | <1.2 | >80% |
| FF-2KW/300r/DC115V | 2K | DC115 | 17.4 | 300 | <2.0 | >85% |
| FF-3KW/290r/DC115V | 3K | DC115 | 26.1 | 290 | <2.5 | >85% |
| FF-5KW/220r/DC230V | 5K | DC230 | 21.7 | 220 | <4.0 | >88% |
| FF-10KW/200r/DC230V | 10K | DC 230 | 43.5 | 200 | <6.5 | >90% |
| FF-20KW/140r/AC400V | 20K | AC400 | 28.87 | 140 | <20 | >90% |
| FF-50KW/150r/DC690V | 50K | DC690 | 41.8 | 150 | <40 | >90% |
| FF-100KW/140r/AC690V | 100K | AC690 | 83.68 | 140 | <85 | >90% |
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
