Parameter:

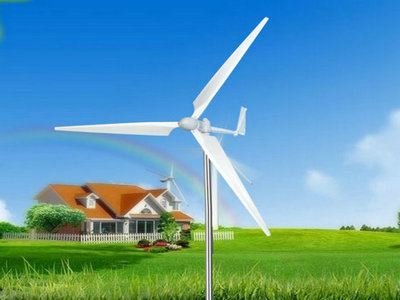

Turbine Model: FD10-20
Rated Power (W): 20000
Rated Voltage (V): 500
Started-up Wind Speed (m/s): 3
Rated Wind Speed (m/s): 9
Security Wind Speed (m/s): 45
Working Wind Speed (m/s): 4.0-35
Rated Rotation (r/min): 180
Working Temperature (degree celsius): -20 -- +60
Blade Material* Qty: Reinforced Fiber Glass *3PCS
Blade Made Artwork: Hand moulding
Generator Style: 3-Phase Synchronous AC
Outer Frame Material: Casted Iron
Speed Control: Electromagnetic Brake+ Mechanical Yawing+ Ratio stall
Protection under Big Winds: Electromagnetic Brake+ Hand Brake
Net Weight (KG): 1400
Off grid controller (PWM): NB20/420-220/110
Off grid inverter: NBB20/420-380
Matched Guyed Pole: 12V260AH*35PCS
Blade Model: YA20K
Blade Length: 4.5m
Rotor Diameter: 10m
Matched Power: 20KW
Started-up Wind Speed: 4m/s
Rated Wind Speed: 9m/s
Security Wind Speed: 45m/s
Rated Rotation: 180r/min
Blade size: 4.85*0.81*0.52
Single Blade W: 101Kg
Artwork: Hand Lay-up
Material: Reinforced Fiber Glass
Controller GW(kg): 72
Controller out packing size(m): 0.95*0.57*1.325
Inverter GW(kg): 260
Inverter out packing size(m): 0.95*0.57*1.325
Certification: CE, RoHS, ISO9001: 2000
Shenzhen Effsun Wind Power Co., Ltd. is a company specialized on medium & small wind turbine generator group and relevant parts development, manufacturing and selling.
We pay high attention on science development. We own professional persons and research equipments on aerodynamics analyse, mechanical design, generator design&manufacturing, also electrical regulate. Based on wind turbine whole set basic theory, every model go from science aerodynamics calculate, intensity analyse, electromagnetic calculate, efficiency study, jarring analyse and matching analyse, all have detailed design, test and produce plan. The wind turbine passed wind tunnel test. Whole system function and various working conditions all have detailed test reports.
Professionally organized and managed, we spare no effort in ensuring the supply of high quality various wind turbine and guarantee 100% service satisfaction for national & overseas consumers. Accordingly, all of our products conform to CE and ISO9001 quality standards.
We engaged in wind turbine generator development and application, we launched 300W, 500W, 1kw small wind turbine in 2000. When time goes by, our technology and products gradually matured, we launched 2kw, 3kw, 5kw, 10kw, 20kw wind generator.
Therefore, if you or your company are interested in any of our products, please don't hesitate to contact us for more details. We look forward to supplying you with our high quality products in the near future.
