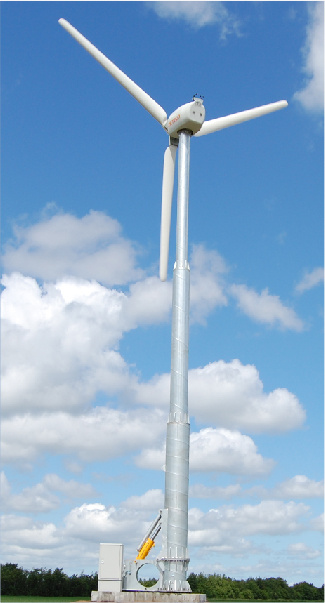

20KW Horizontal Axis Wind Generator
Characters:
？ ？ 1. The motor is made of permanent magnetic material Nd-Fe-B.
？ ？ 2. The blades are made of ？reinforced fiber glass with good dynamic balancing performance.
？ ？ 3. Requiring a low start-up wind speed of 3.5m/s, can withstand typhoon, protect against corrosion, and with a good performance in withstanding sandstorm.
？ ？？4. With electromagnetic and mechanical speed limiting modes, and automatic navigation.
？ ？ 5. With attractive appearance, can be assembled easily.
？ ？ 6. With a service life of 15-20 years.
？ ？ 7.？Reliable and cost-effective.
？
Application Environment:
？ ？ ？？Used in wind & solar hybrid independent power supply system, on-grid system, island power system, large billboard power supply system, sea water desalinization system, military power system and medium load power consumption
|
PARAMETER |
|
Rated voltage(V) |
DC380 |
|
Rated power(W) |
20K |
|
Rotor diameter(m) |
10 |
|
Rated wind speed(m/s) |
12 |
|
Rated RPM |
185 |
|
Cut-in wind speed(m/s) |
4 |
|
Start-up wind speed(m/s) |
3.5 |
|
Speed control |
Electronic yawing |
|
Weight(KG) |
750 |
|
Blade material and quantity |
Reinforced fiber glass plastic*3 |
