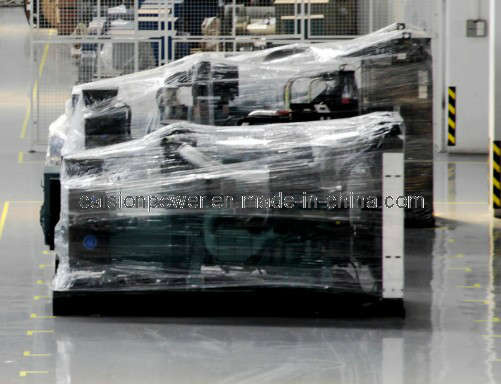

20KW China diesel generator price
1, OEM, Reliable Quality.
2, CE / ISO Approved.
3, Very Competitive Price.
4, ATS, AMF, Synchronization Optional.
5. Open / Slient / Conatiner / Trailer / Vehicle Type Optional.
Supply Scope of Calsion Quanchai Diesel Generator Set:
1, Various Voltage available but coupled alternator model may be changed. For detailed inquiry, pls contact Calsion sales.
2, Faraday Brushless Alternator, Single or double bearings are available, options for all kinds of adaptors and disc plate, IP23, Insulation Class H, AVR Fitted.
3, Power Generator with 8 Working Hours Base Fuel Tank(for the both of open & silent genset ), AVM Suspension System, Set-mounted Exhaust System, Battery, Battery Charger and Lead supplied
4, Power Generator with Delixi Breaker, ABB Breaker for Option
5, Complete Operation/Maintenance Manuals for Power Generator/Engine/Alternator, Power Generator report
6, Warranty: One year or 1000 Working Hours from the shipment date, whichever comes first.
Genset |
Brand |
Calsion/Quanchai generator set |
Type |
C25Q/CE28Q |
Prime power( KW/KVA) |
20/25 |
Standby power(KW/KVA) |
22/28 |
Current(A) |
36/40 |
Rate volt(V) |
400/230 |
Rate frequence |
50Hz |
Connection |
3 Phrase 4 Wire |
PF |
0.8 |
THD ≤% |
4% |
Steady state volt variation ≤% |
0.5% |
Steady state volt variation ≤% |
+20% ~ -15% |
Voltage recovery time |
1.0S |
Voltage variation ≤% |
0.25% |
Steady state frequency ≤% |
5% |
Transient frequency ≤% |
+10% ~ -7% |
Frequency recovery time |
3.0S |
Steady state frequency ≤% |
1.5% |
Starter Mode |
24V |
Dimension |
1700×810×1200 |
Weight kg |
460 |
Air Condition |
GB1105,ISO3046 |
Pressure |
100Kpa @1000m |
Temperature C |
40 |
Humidity % |
80 |
Noise LeveldB A LP7M |
90 |
Standard |
GB/T2820.1,.5,.6 &ISO85282-1,-5,-6 |
Engine |
Engine Brand |
Quanchai |
Model |
QC498D |
Prime power KVA/KW |
25/20 |
BorexStroke mm |
90×100 |
Cylinder Number Arrangement |
4L |
Displacement L |
2.545 |
Compression Ratio |
17:1 |
Engine Speed(rpm) |
1500 |
Aspiration |
Turbo charged |
Flywheel shell interface |
SAE 3# |
Flywheel interface |
SAE 11.5" |
Flywheel gear |
130 |
Fan Diameter |
Φ450 |
Fuel Consumption
(g/W.h) |
≤243 |
Minimum machine oil consumption (g/kwh) |
≤1.22 |
Cooling Method |
Fan & Radiator |
Lubricating Oil Pan CapacityL |
15 |
Governor |
ECN |
Alternator |
Alternator brand |
FARADAY |
Model |
FD1F |
Nominal rating (KW/KVA) |
22/27.5 |
Exciter Type |
SHUNT AREP or PMG |
Alternator Type |
Brushless |
AVR |
BASLER AVC63 |
Protection Class |
IP22 |
Insulation Class |
H |
Pitch Winding |
2/3 |
Overspeed |
2250rpm |
Sustained Short Circuit Current |
300%(3In):2s |
THF |
<2% |
Rated exotherm |
125 C |
Control box |
Control Module |
DeepSea 3110 |
Calsion Power System Co Ltd established in 1996, specialized in generator development, manufacture, marketing and services. The company which covers 20 000 square meters is located in Economic and Technological Development Zone in Hefei, has a professional R&D center, a modern production base and excellent test system, with an annual capacity of 10, 000 units.
Calsion insist 'to the market demand-oriented, technology innovation as the driving force'. Calsion can provide every kind of emergency power system or used to meet various types of power solutions and systems integration building. Products include diesel generators, gasoline generators, gas generators, cooling systems, control systems, distribution systems and other series, including generator sets, including open type, silent type, truck, trailer, mobile generator and other types of stand-alone power Cover 1.5kW-3200kW. Providing users with sales and service through the worldwide network, meanwhile, the products are exported to Southeast Asia, the Middle East, Africa, and Europe, America and other countries and regions. Calsion's products are first-class reliability and durability, which can meet all kinds of harsh environments and high-altitude areas of need. Widely used in national defense, energy, electricity, transportation, communications, finance, medical, tourism, real estate, mines, factories and other fields. Each customer, each project has different needs, from the beginning, we provide the technical support system, find the best solution.
Calsion has a strict quality management system and obtained ISO9001/14001/OHSAS18001 certificate. With strict testing, excellent performance, brilliant quality and world-level technology, we got TER and CE certificate.
